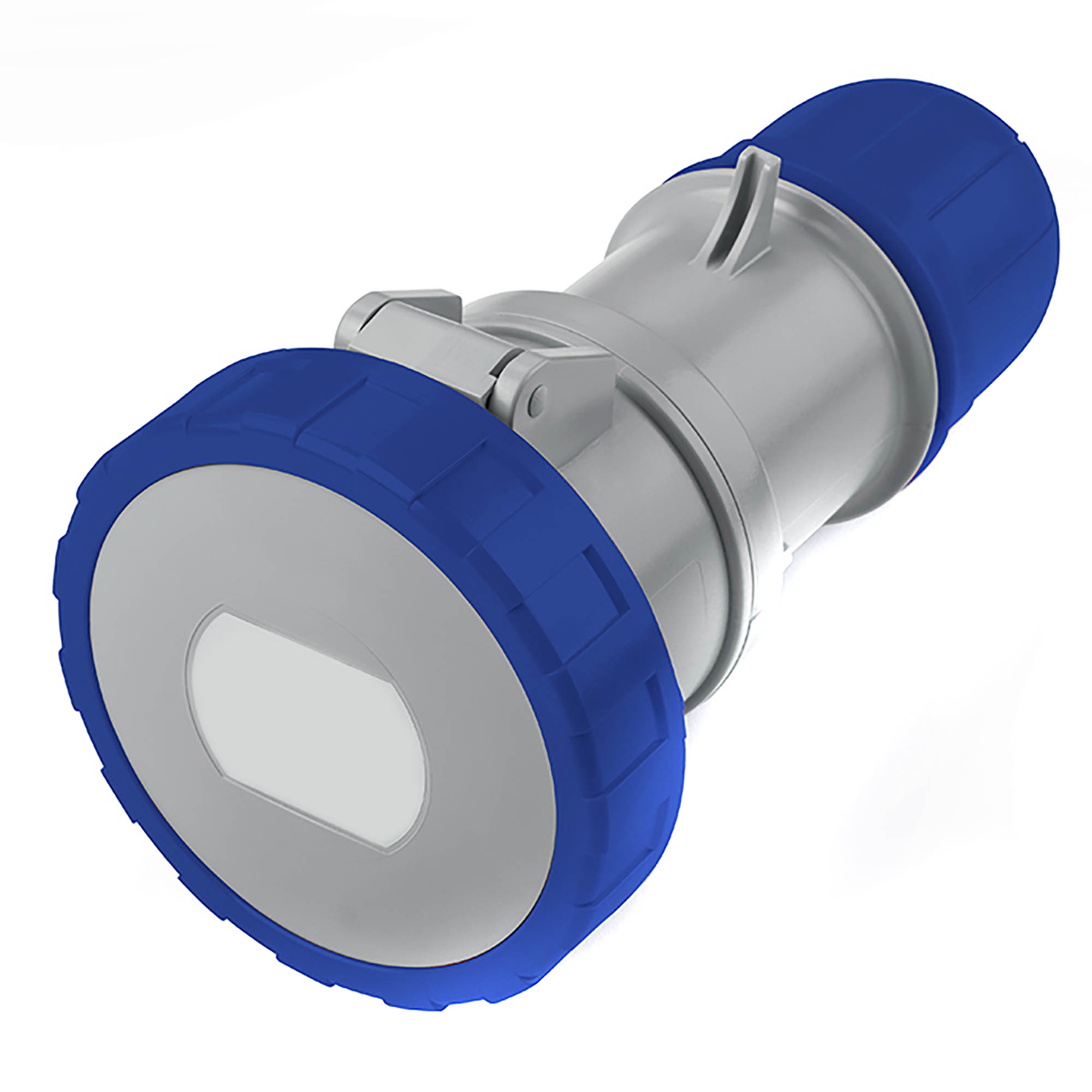

Cable socket screwless IP67 32A 2P+E 230V

Code: DIS3183243F
Cable socket screwless IP67 32A 2P+E 230V
Cable socket screwless IP67 32A 2P+E 230V
Temperature of operation, °C 60
Shock resistance, J 5
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screw less terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 575
Flange size horizontal 280
Width of device 56
Height of device 128
Depth of device 128

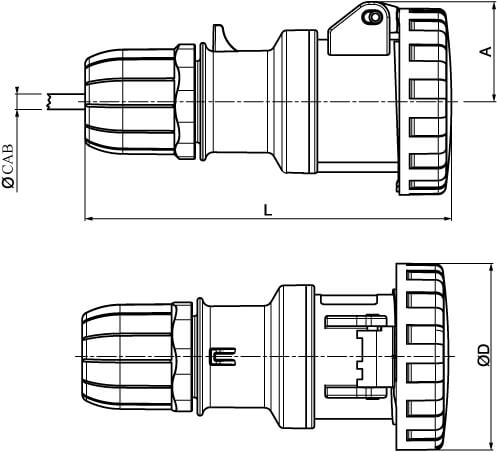

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
The System "Quadro"
RAR
27.23 MB
Quadro - industrial plugs
The system "Quadro" industrial connectors
ZIP
31.52 MB
Certificates
Name Document
The certificate of expert opinion on an electrical plug connectors for industrial use series “SCAME PARRE S.p.A.”
PDF
5.39 MB
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.
PDF
4.91 MB
