Temperature of operation, °C 60
Shock resistance, J 5
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Drill hole distance vertical 204
Flange size vertical 390
Flange size horizontal 136
Width of device 115
Height of device 130
Depth of device 271

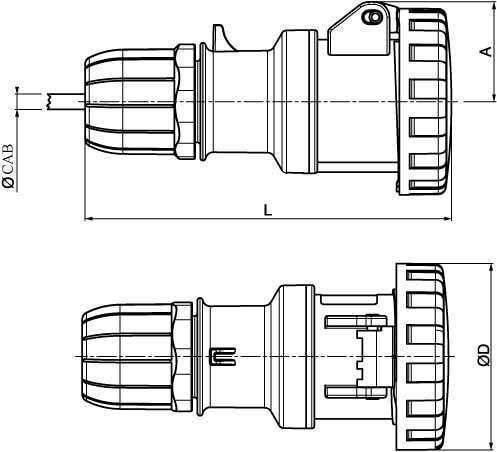

Drawings
Seria Name Eplan DWG
