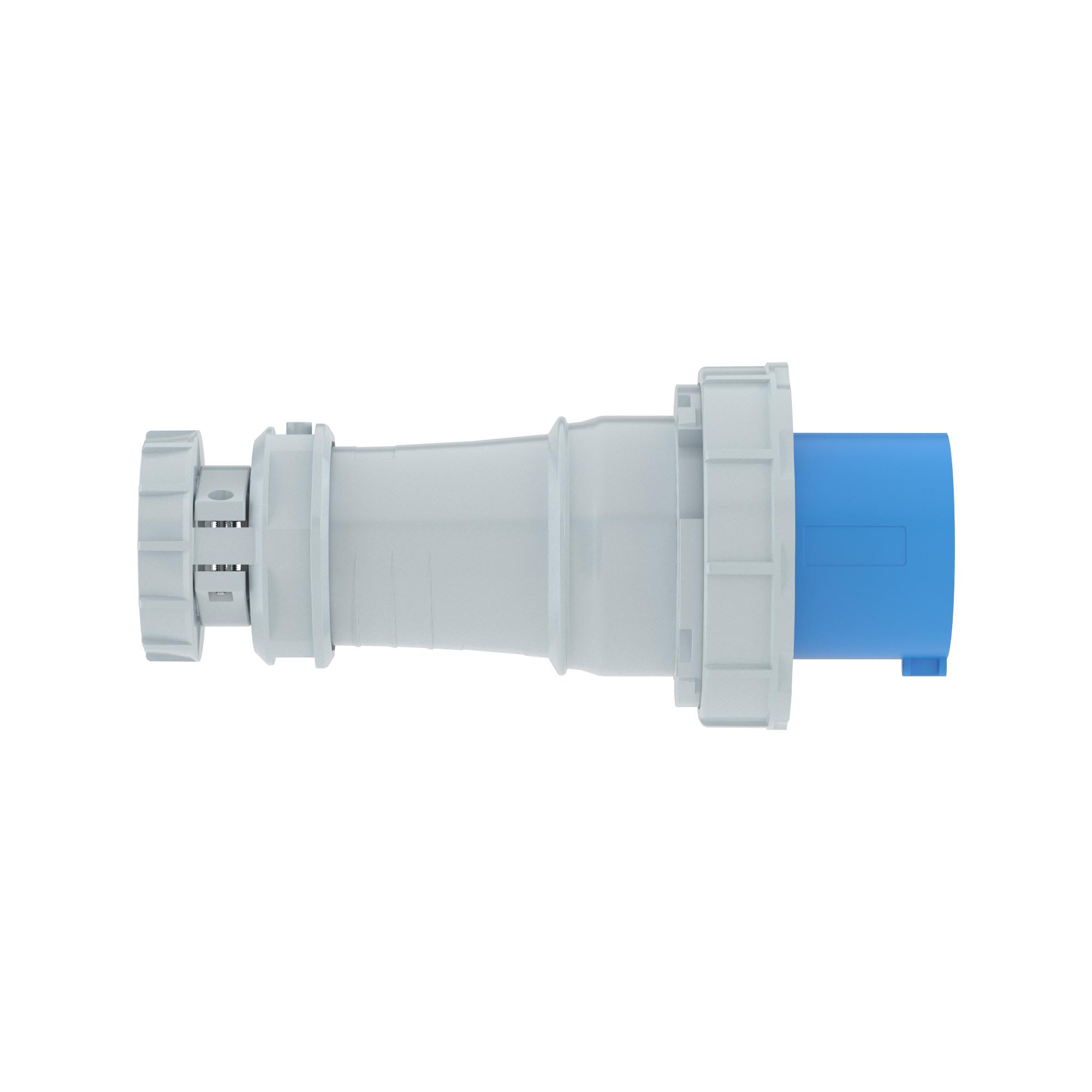

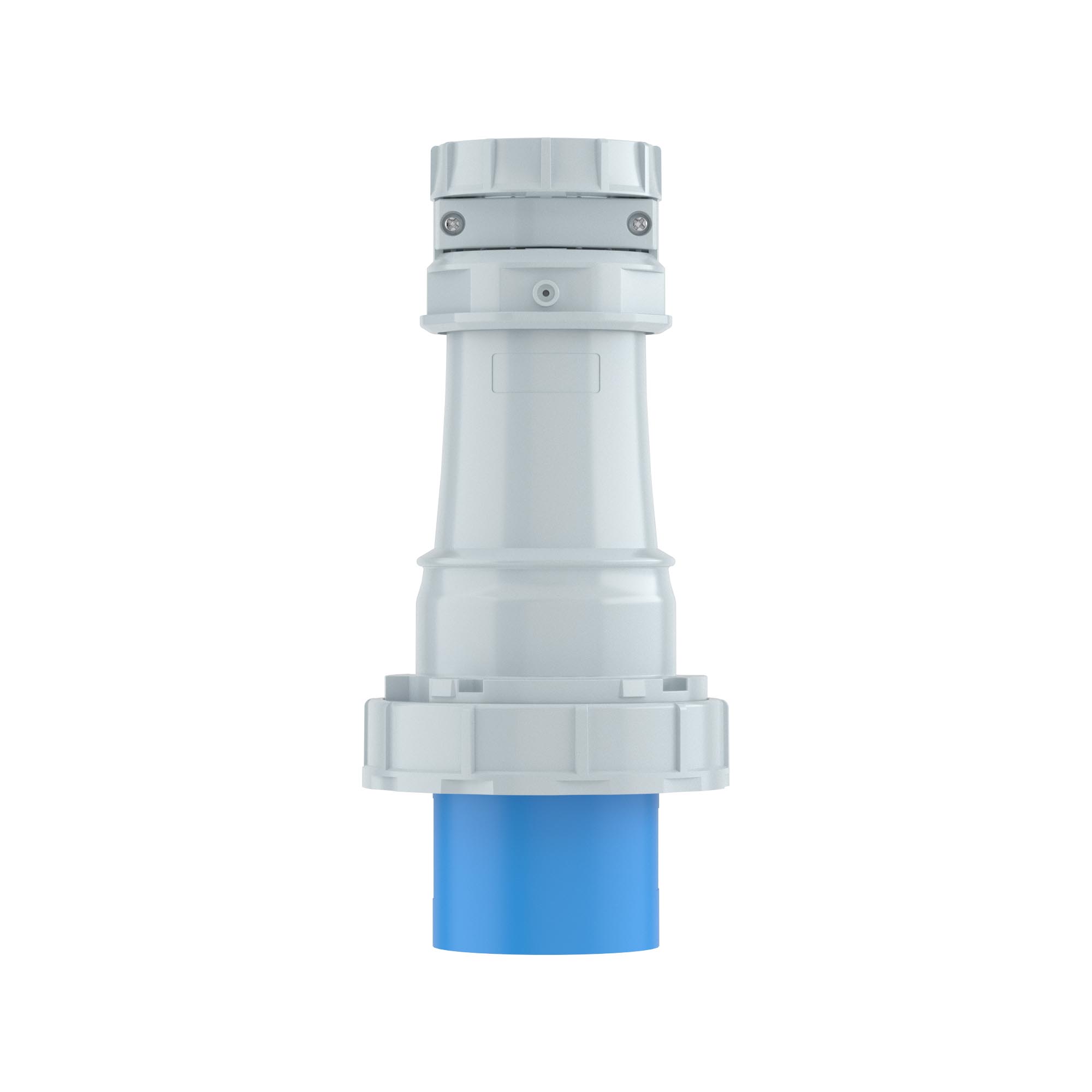

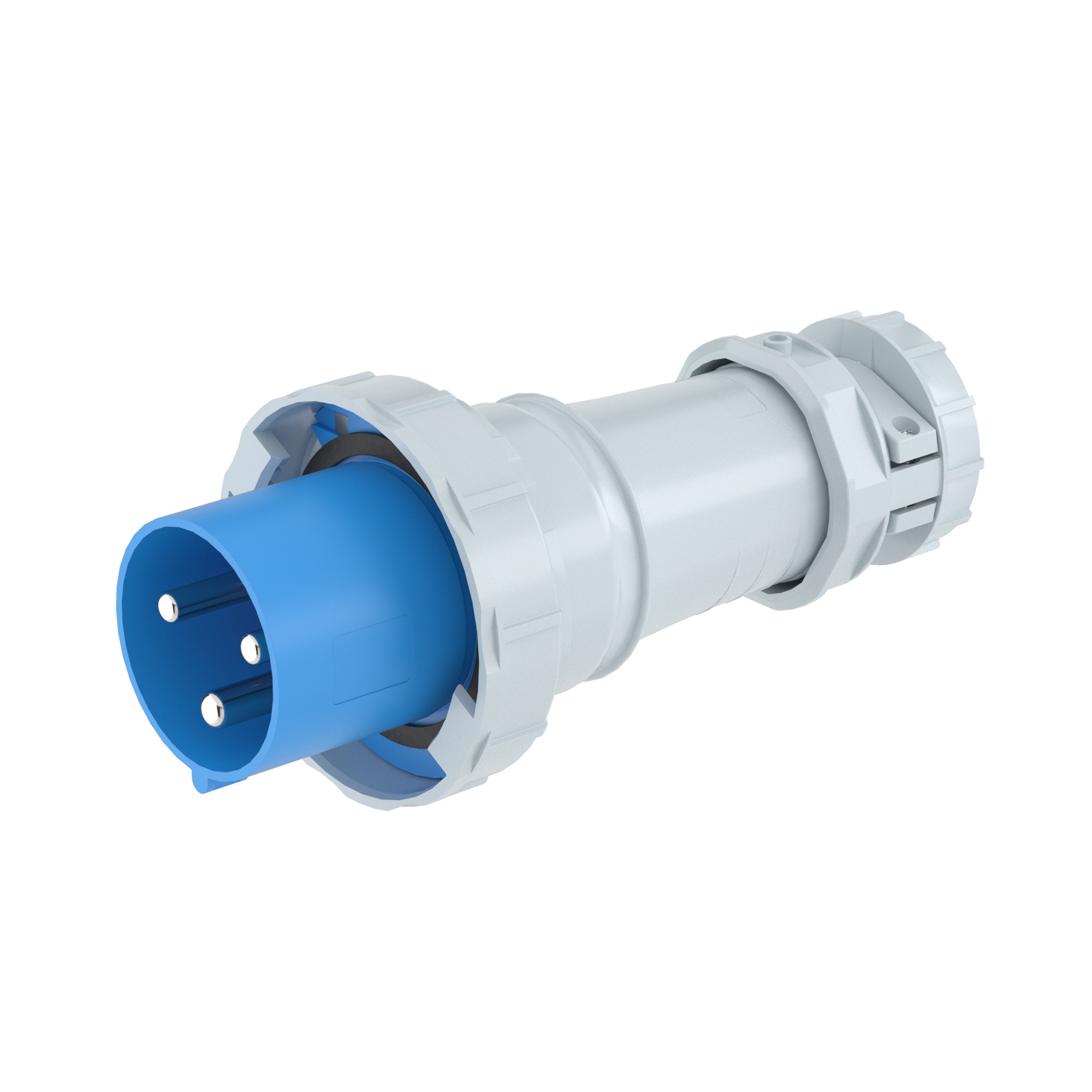

Cable plug IP67 63A 2P+E 230V

Code: DIS2186333
Temperature of operation, °C 60
Shock resistance, J 5
Width, mm 112
Height, mm 220
Depth, mm 220
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 63
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Width of device, mm 112
Height of device, mm 220
Depth of device, mm 220
Angle of plug Straight
Connection system Screwed terminal
