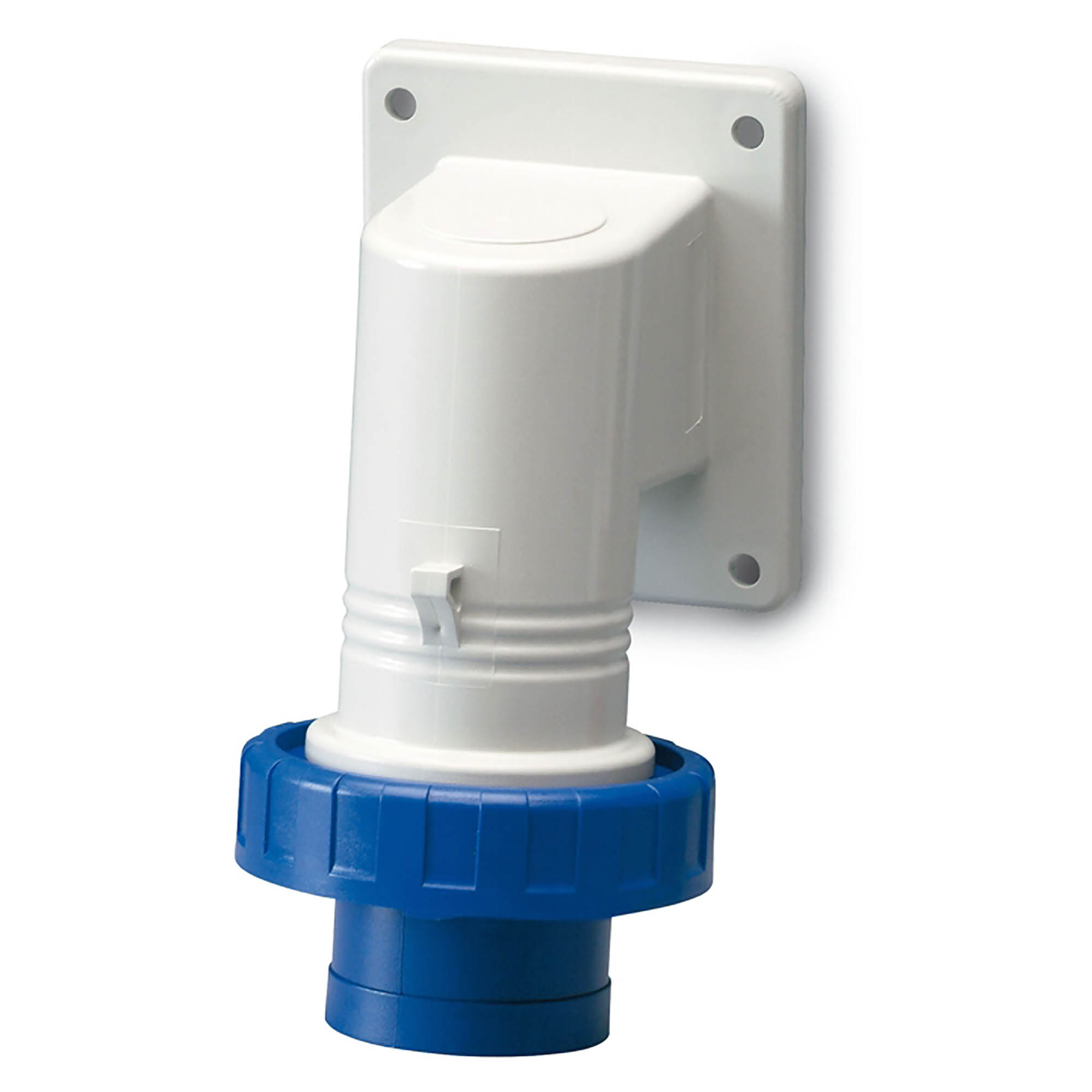

APPLIANCE INLET 2P+E IP67 16A 6h

Code: DIS2471693

To ask a question

ETIM

Width, mm	70
Height, mm	70
Depth, mm	142
Lockable	No
With hinged lid	No
With socket outlet	No
Number of phases	1
With child-protection	No
Frequency, Hz	50
Cable entry	Gland nut
Extension possible	No
With transparent cover	No
Switch-off function	No
Fault current protection	No
Number of poles	3
Contact less detection of the sense of rotation	No
Material	Plastic
IEC-amperage, A	16

For heavy conditions (in accordance with VDE)	No
Phase inverter	No
Empty locations on mounting rail	No
Number of height units	1
With earth leakage switch	No
Degree of protection (IP)	IP67
Total number of groups	1
Clock hour position, h	6
Identification colour	Blue
Voltage acc. EN 60309-2	230 V (50+60 Hz) blue
Drill hole distance vertical, mm	70
Drill hole distance horizontal, mm	56
Width of device, mm	70
Height of device, mm	70
Depth of device, mm	142
Angle of plug	Angled
Connection system	Screwed terminal

Accessories

Interlocked socket. Surface mounting. IP67 16A 2P+E 230V

Code: DIS5051683

Interlocked socket. Surface mounting. IP67 16A 2P+E 230V

Code: DIS5611683

Switched socket outlets with interlock and DIN-rail IP67 16A 2P+E 230V

Code: DIS5681683

Interlocked socket. Flush mounting. IP67 16A 2P+E 230V

Code: DIS4051683

Cover for IP67 plug. 16 A, 2P+E, IP67

Code: DIS57090163

Cable socket IP67 16A 2P+E 230V

Code: DIS3181643

Flush mounting angled socketIP67 16A 2P+E 230V

Code: DIS4181663

Surface mounting socket IP67 16A 2P+E 230V

Code: DIS5181653T

Interlocked socket ADV2 2P+T 16A 6h IP67 RCD&MCB

Code: DIS5681683RMW

Interlocked socket ADV2 2P+T 16A 6h IP67 RCD

Code: DIS5681683RW

SUPPORTO TUBOLARE X QUADRI DOMINO

Code: DIS6540650

Flange 136х125 with pre-holing 70х87 (sockets for 16A)

Code: DIS6540125

Enclosure 70x87

Code: DIS5700016

Flange 136х125 with pre-holing 84х106 (sockets for 32A)

Code: DIS6540126

PIASTRA FISSAGGIO DOMINO M400 A TORRETTA

Code: DIS6540651

PIASTRA CON TETTUCCIO PER DOMINO M400

Code: DIS6540653

PIASTRA CON TETTUCCIO PER DOMINO M550

Code: DIS6540654

Frame for flush mounting box 136x125

Code: DIS5720220

FRAME 1130x1000

Code: DIS661002

FRAME 1750x1000

Code: DIS661003

FRAME 2160x1000

Code: DIS661004

CAVALLETTO PIEGHEVOLE PER DOMINO/OMNIA

Code: DIS6540610

Flanged socket IP67 16A 2P+E 230V

Code: DIS4271663

SURFACE MOUN.STRAIGHT BOX FOR 32A OUTLET

Code: DIS5700032

Enclosure 70x87. Angled.

Code: DIS5700116

SURFACE MOUN. ANGLED BOX FOR 32A OUTLET

Code: DIS5700132

Flush mounting box 136x125

Code: DIS5720200

No name

Code: DIS5720205

Empty surface mounting box 136х125

Code: DIS572M0310

Cover for box M95.

Code: DIS137151

FLANGE ADAPTOR 75X75 SU 84X106

Code: DIS6540108

Blind flange 136x125

Code: DIS6540120

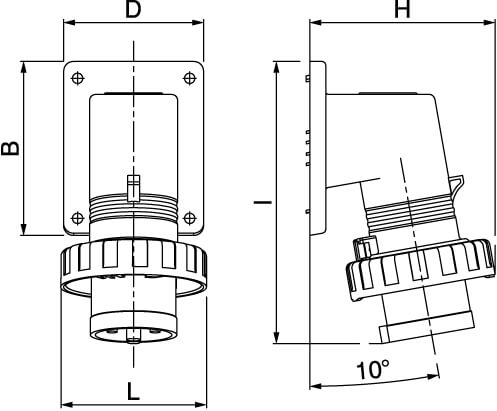

Drawings

Seria	Name	Eplan	DWG
Industrial plugs	The System "Quadro"	RAR 27.23 MB
Industrial plugs	The system "Quadro" industrial connectors		ZIP 31.52 MB

Certificates

Name	Document
The certificate of expert opinion on an electrical plug connectors for industrial use series “SCAME PARRE S.p.A.”	PDF 5.39 MB
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.	PDF 4.91 MB
