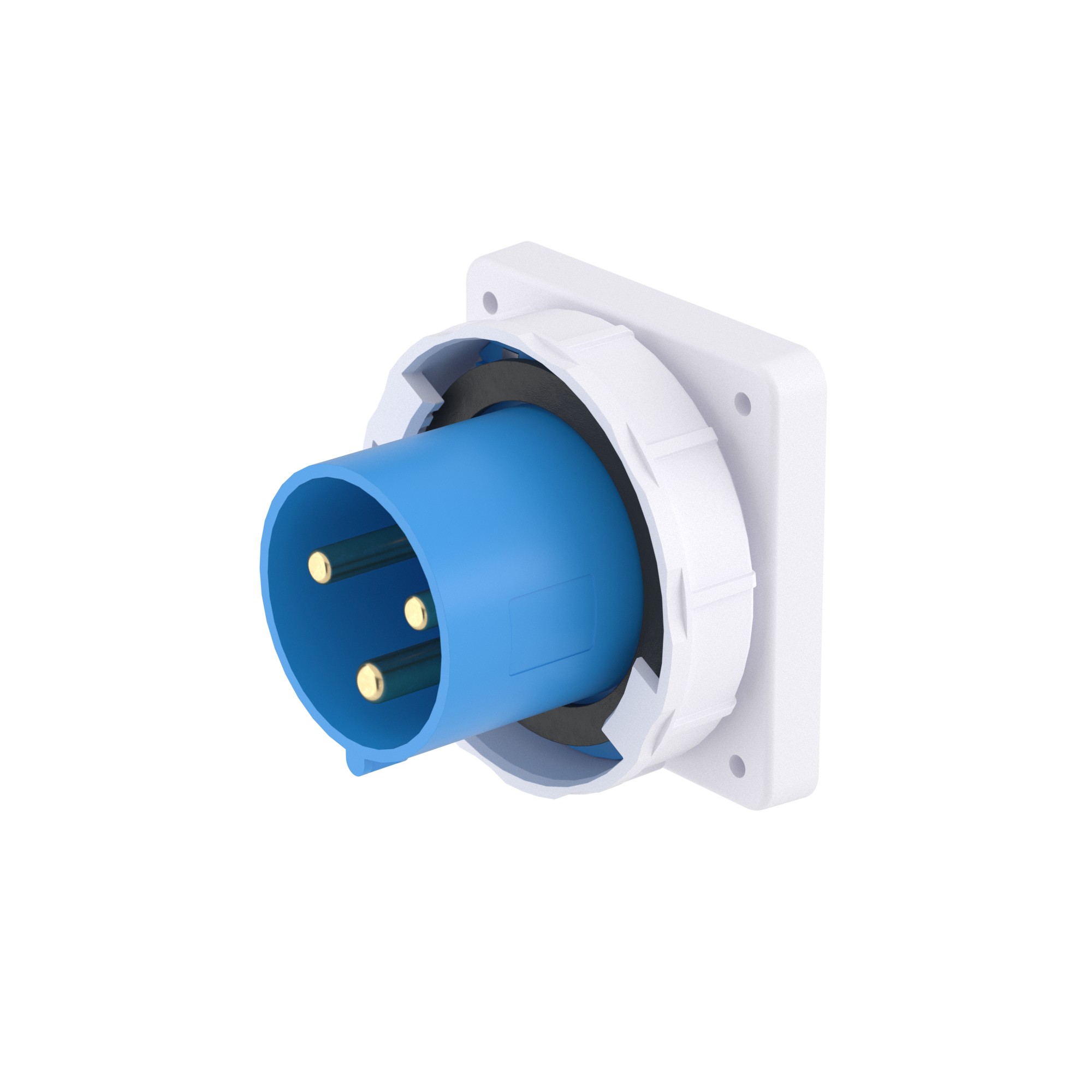

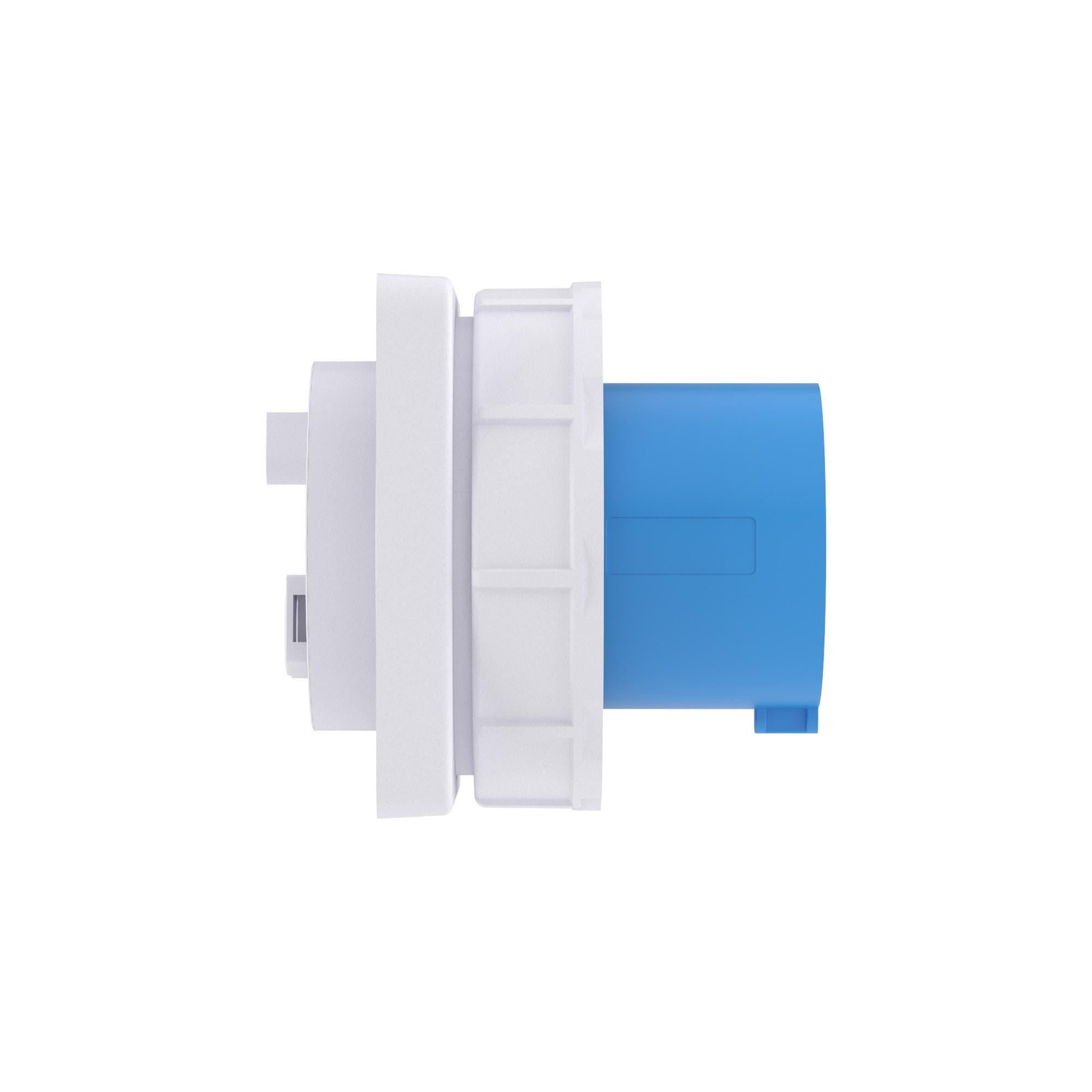

APPLIANCE INLET 2P+E IP66/IP67 125A 6h

Code: DIS24612593
Width, mm 114
Height, mm 114
Depth, mm 150.5
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 125
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Drill hole distance vertical, mm 100
Drill hole distance horizontal, mm 100
Width of device, mm 114
Height of device, mm 114
Depth of device, mm 150
Angle of plug Right-angled
Connection system Screwed terminal

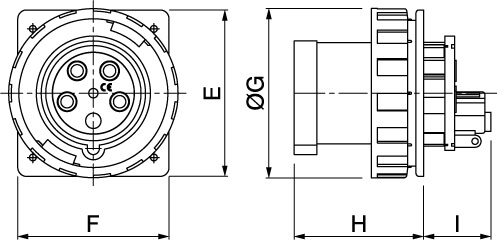

Drawings
