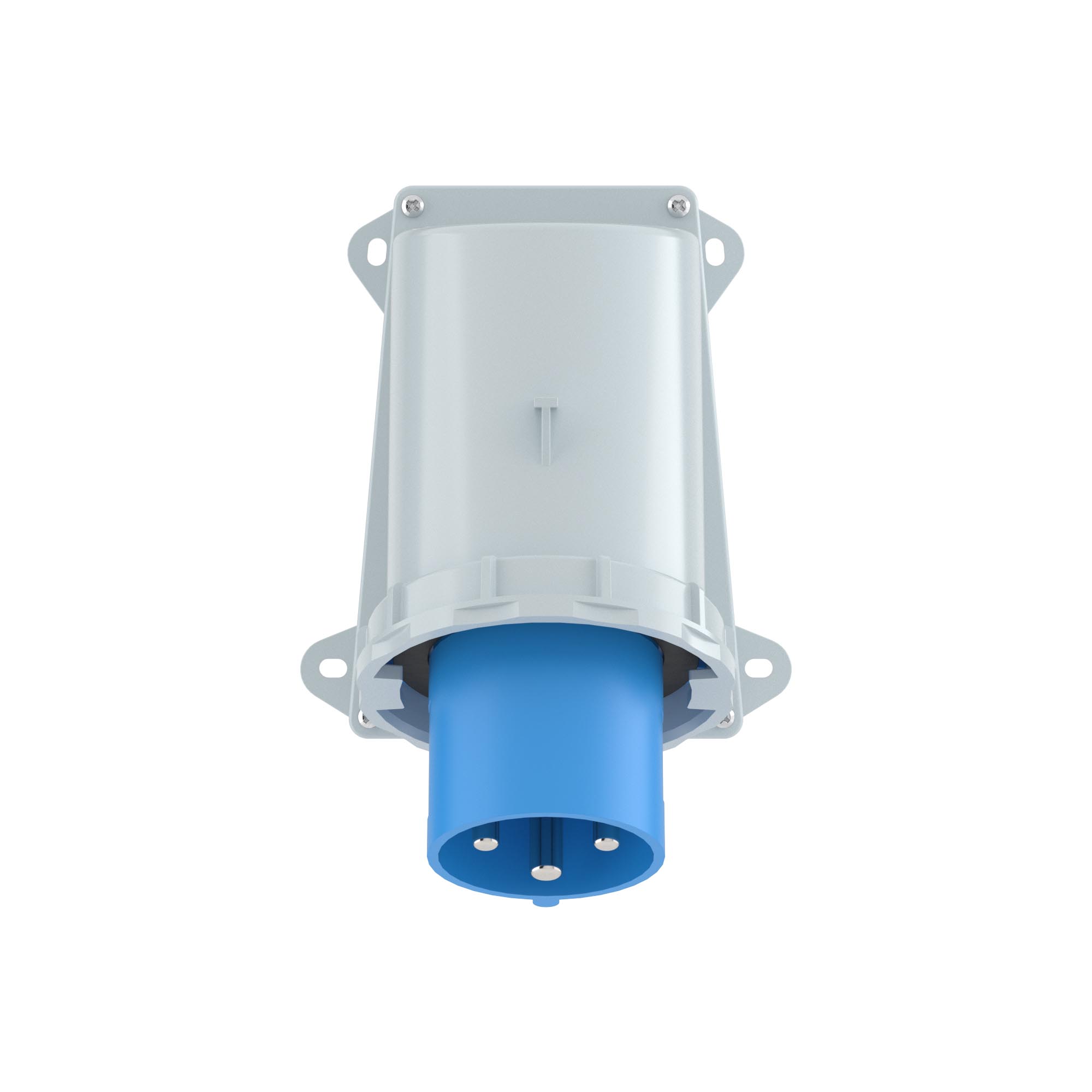

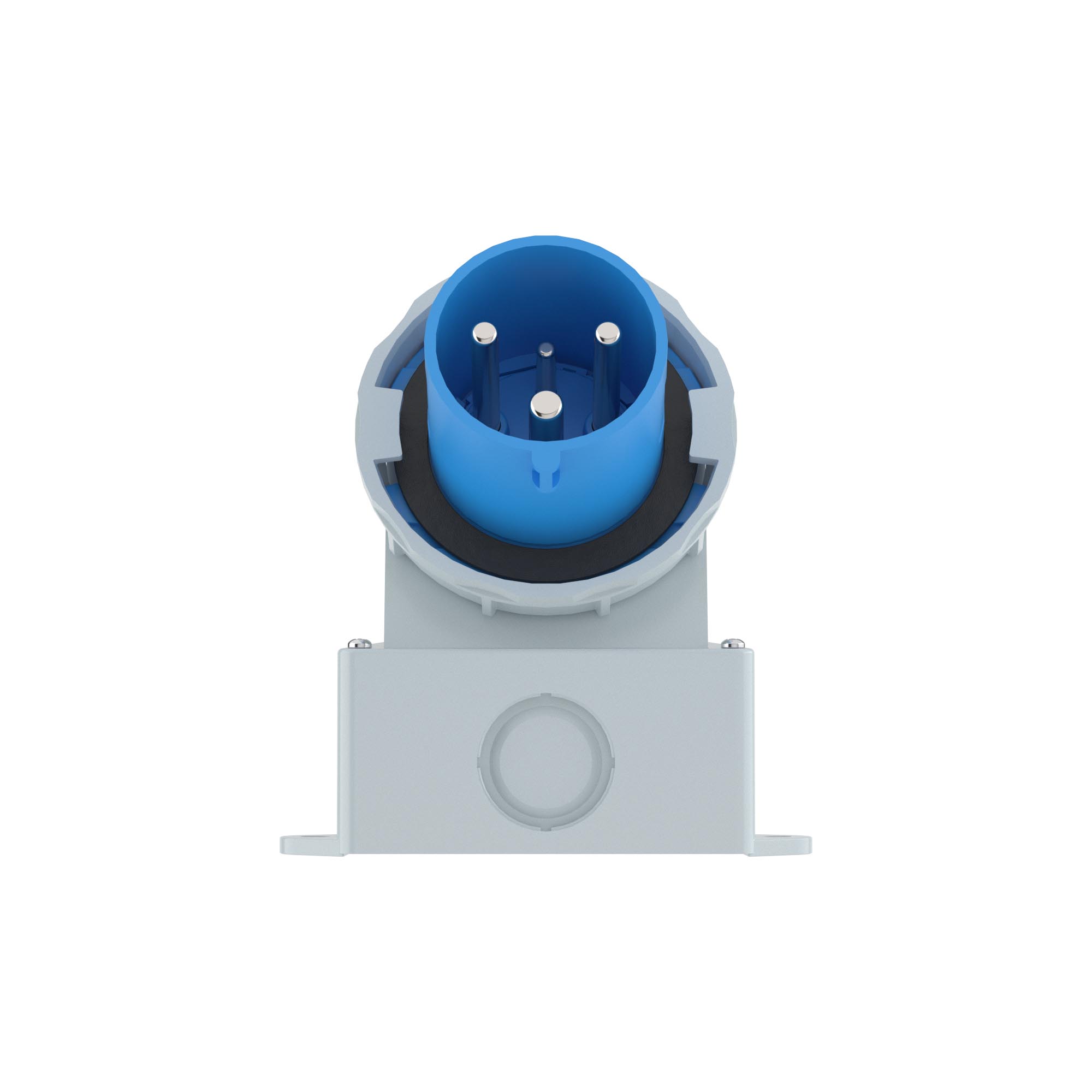

Code: DIS245M6393
Width, mm 115
Height, mm 130
Depth, mm 271
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 63
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue

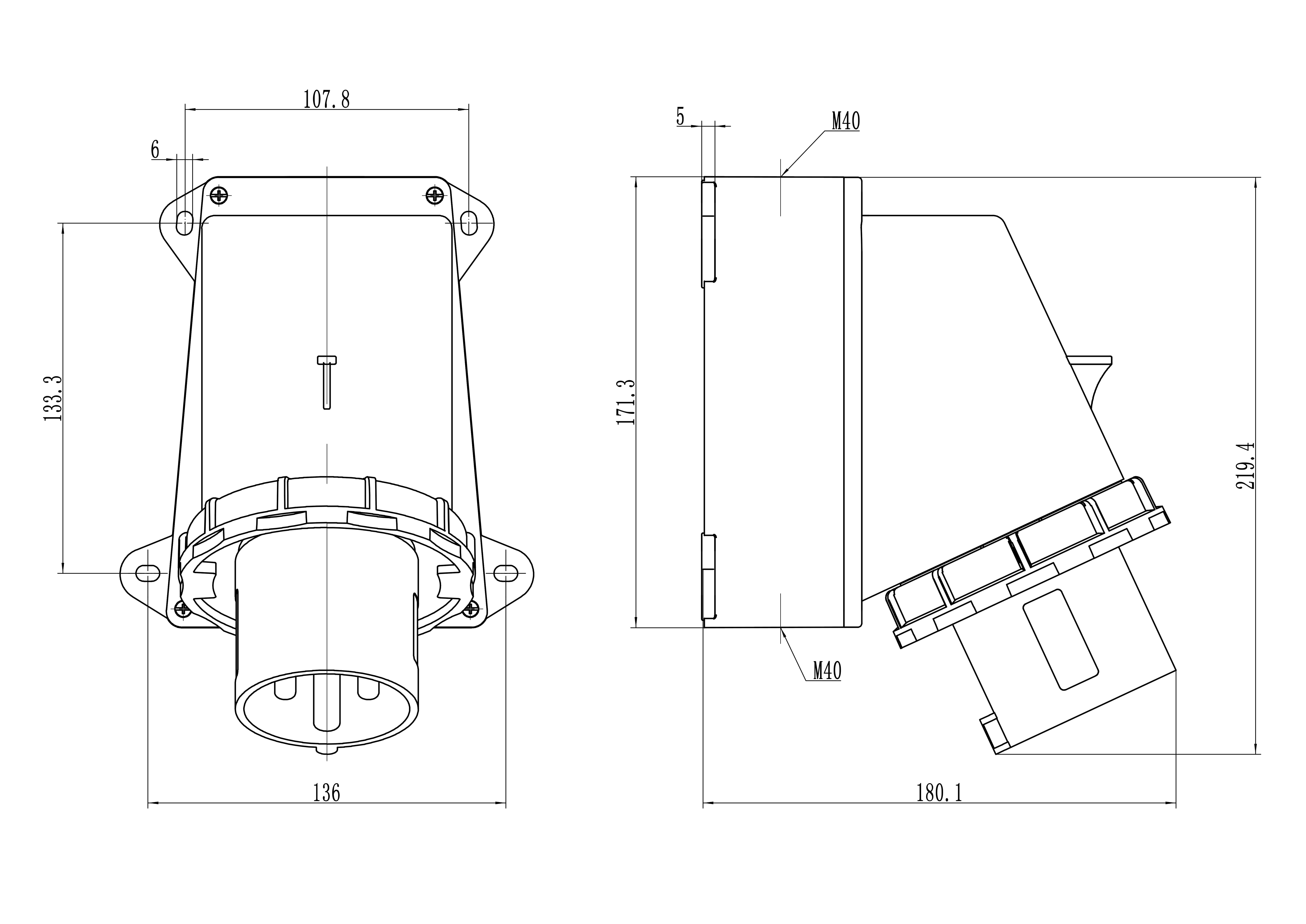

Drill hole distance vertical, mm 204
Drill hole distance horizontal, mm 96
Width of device, mm 115
Height of device, mm 130
Depth of device, mm 271

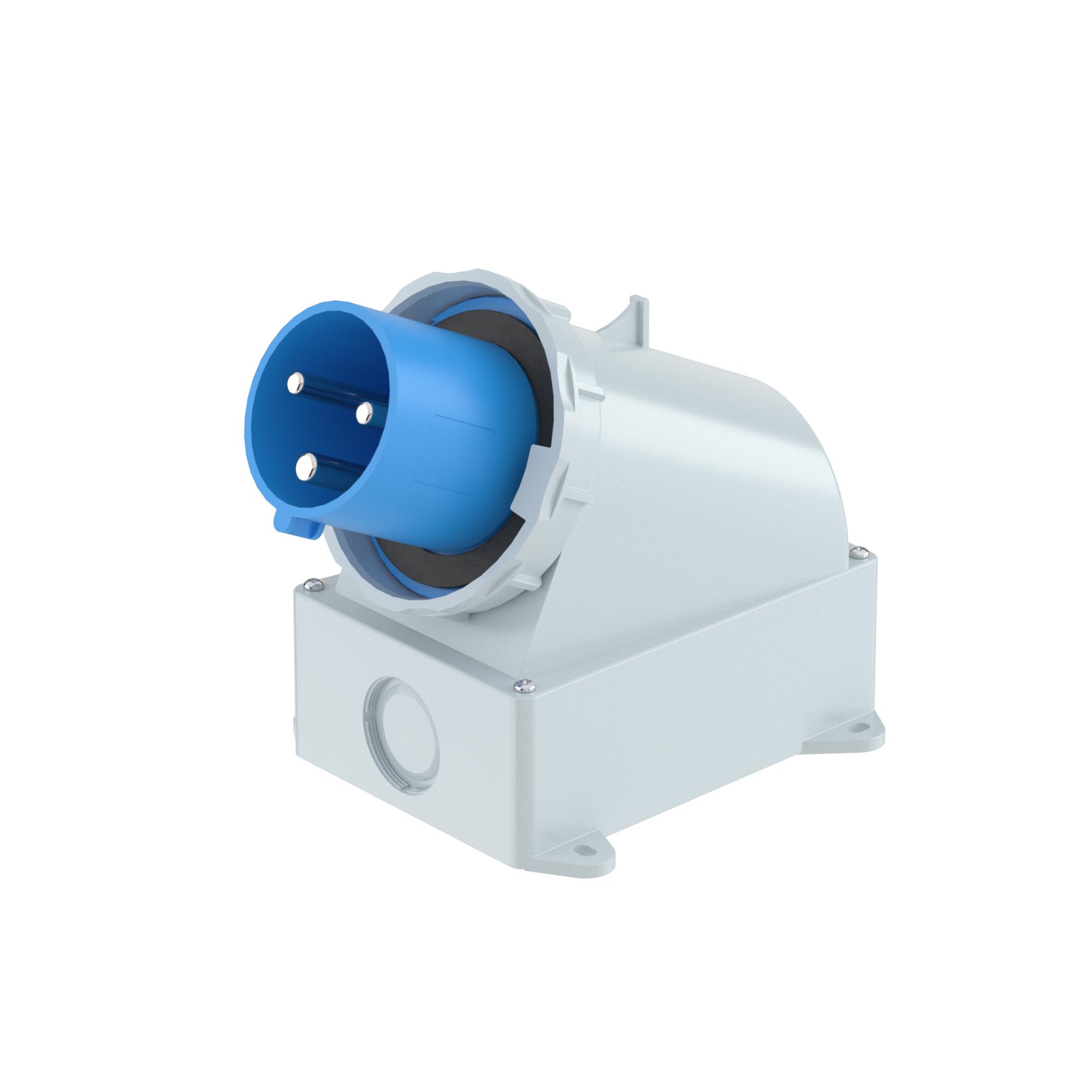

Angle of plug Right-angled
Connection system Screwed terminal
Enclosure 70x87
