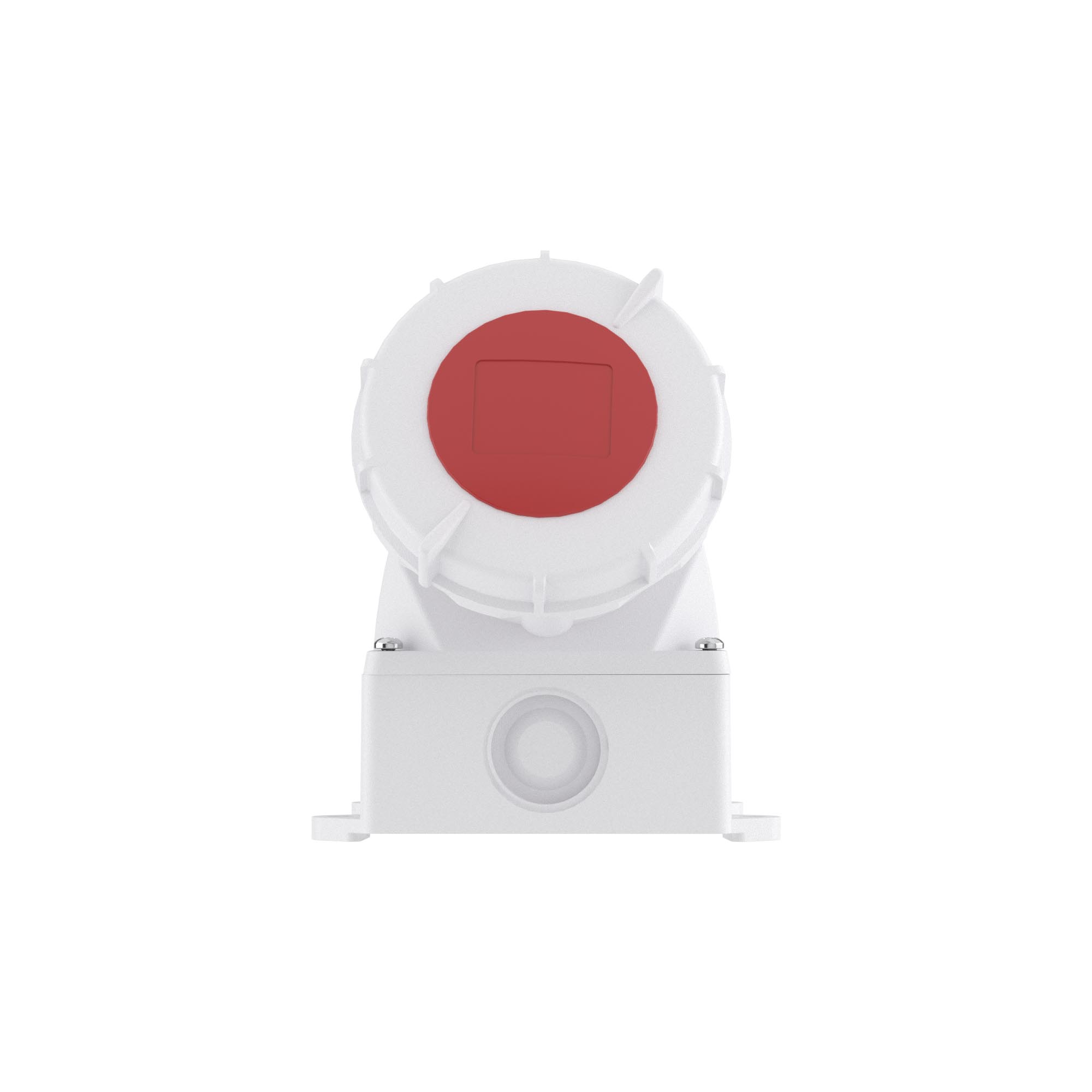

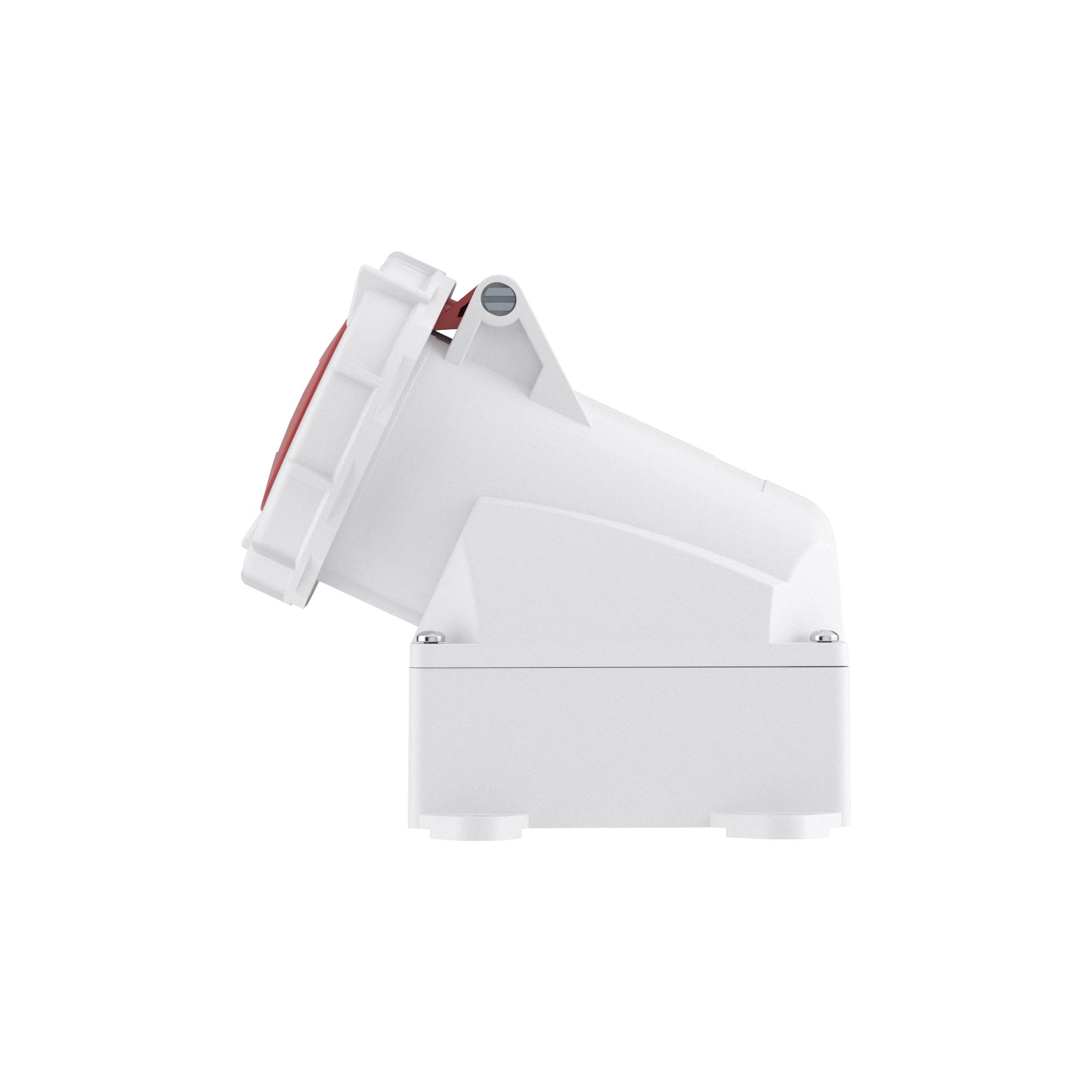

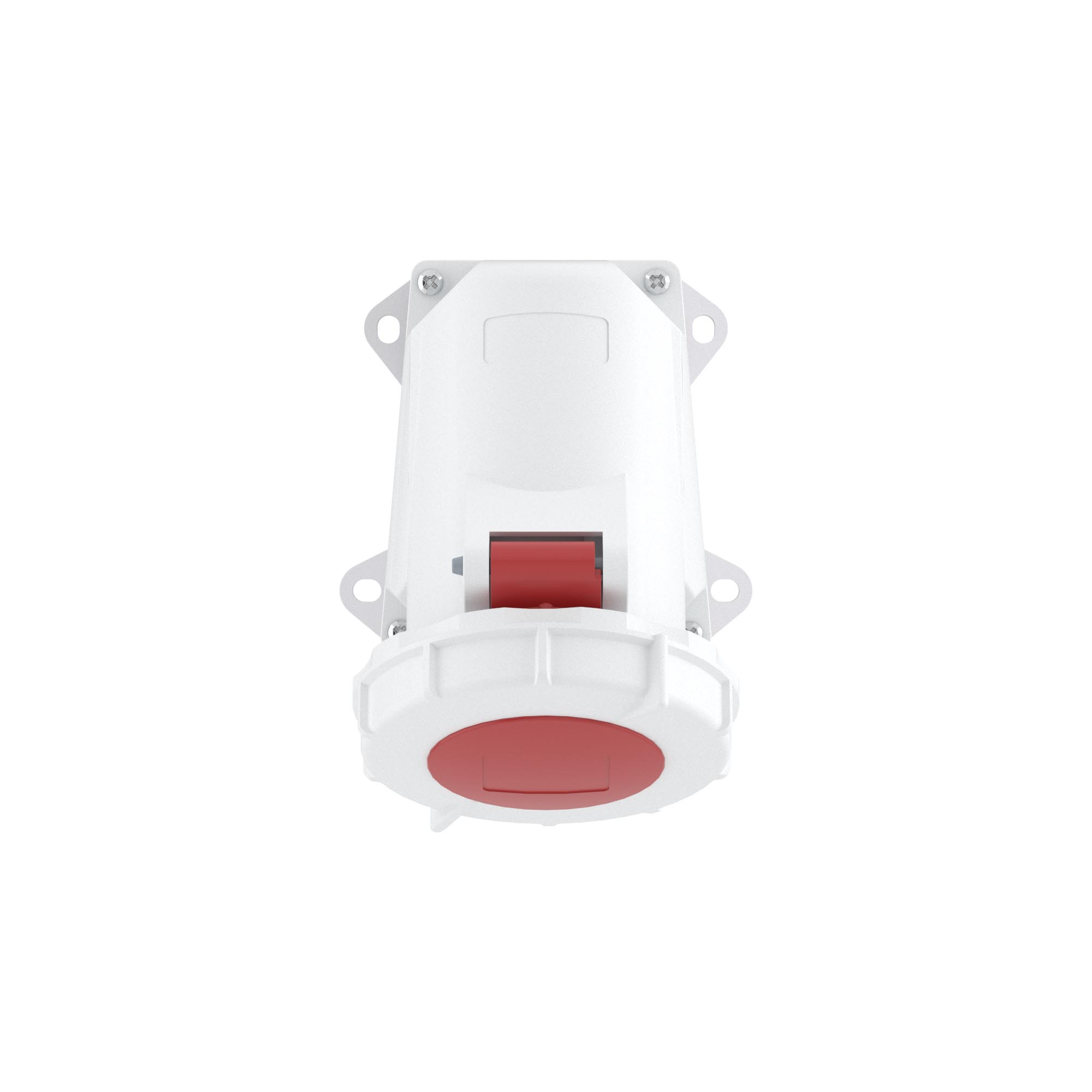

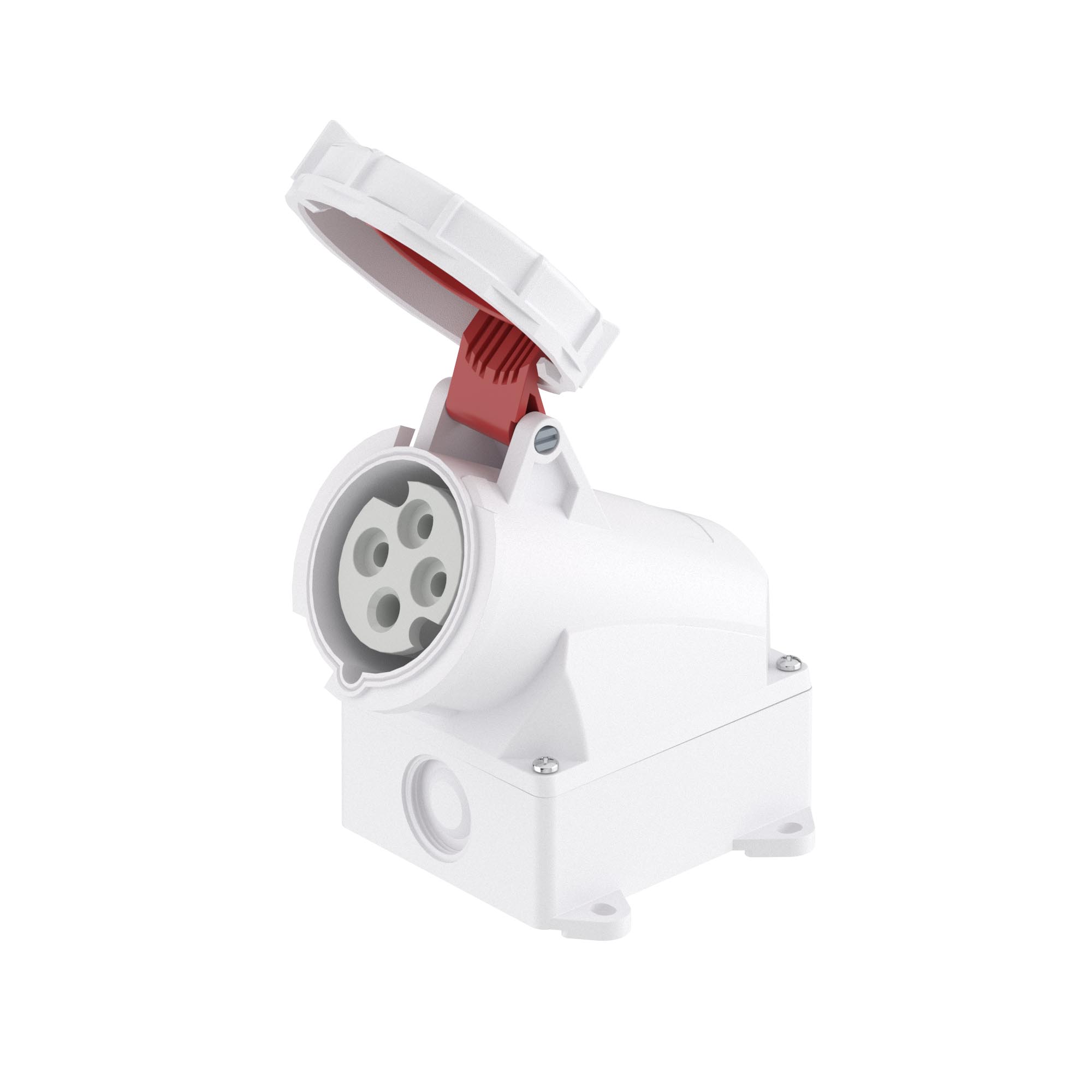

Surface mounting socket IP67 32A 3P+E 400V

Code: DIS5183256T
Surface mounting socket IP67 32A 3P+E 400V
  • To ask a question
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 131
Flange size horizontal 127
Width of device 127
Height of device 166
Depth of device 151
Height, mm 166
Width, mm 126
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 151
Product type Surface mounting socket
Voltage 400V

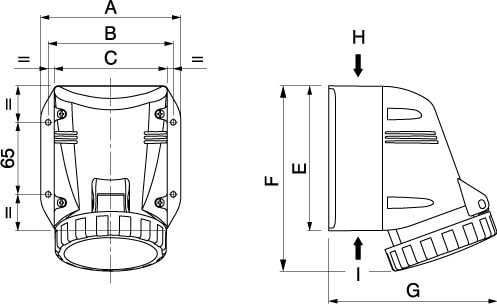

Drawings
