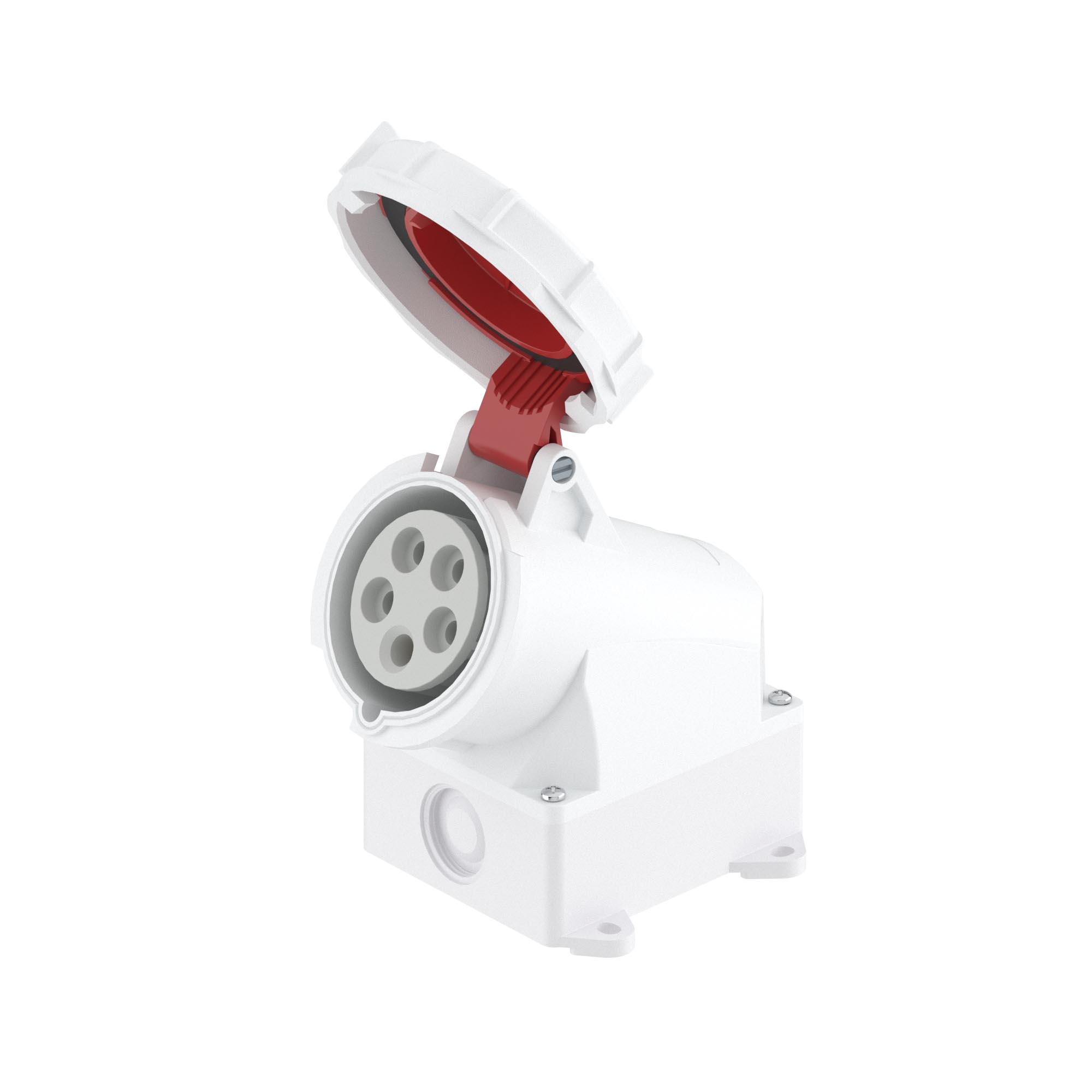

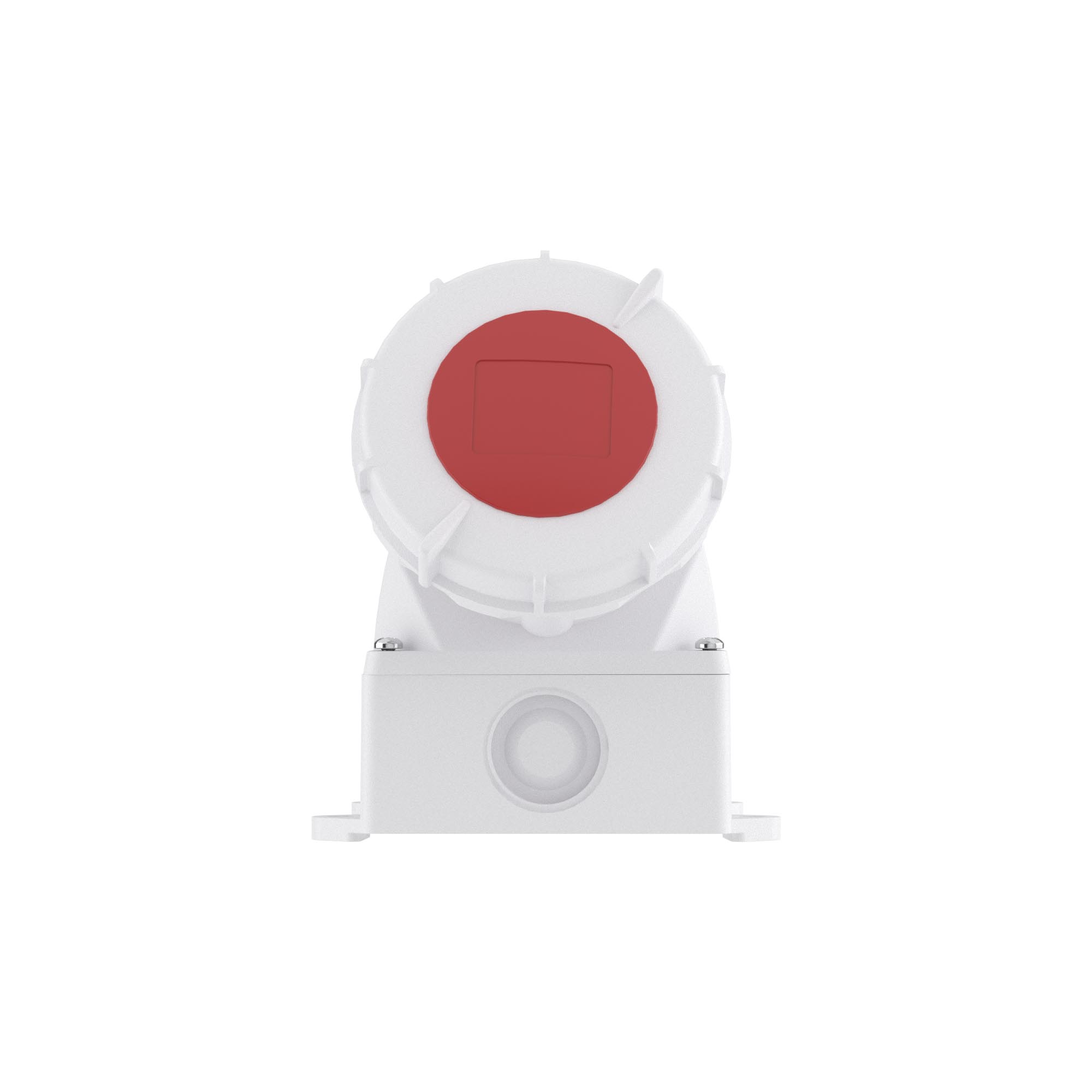

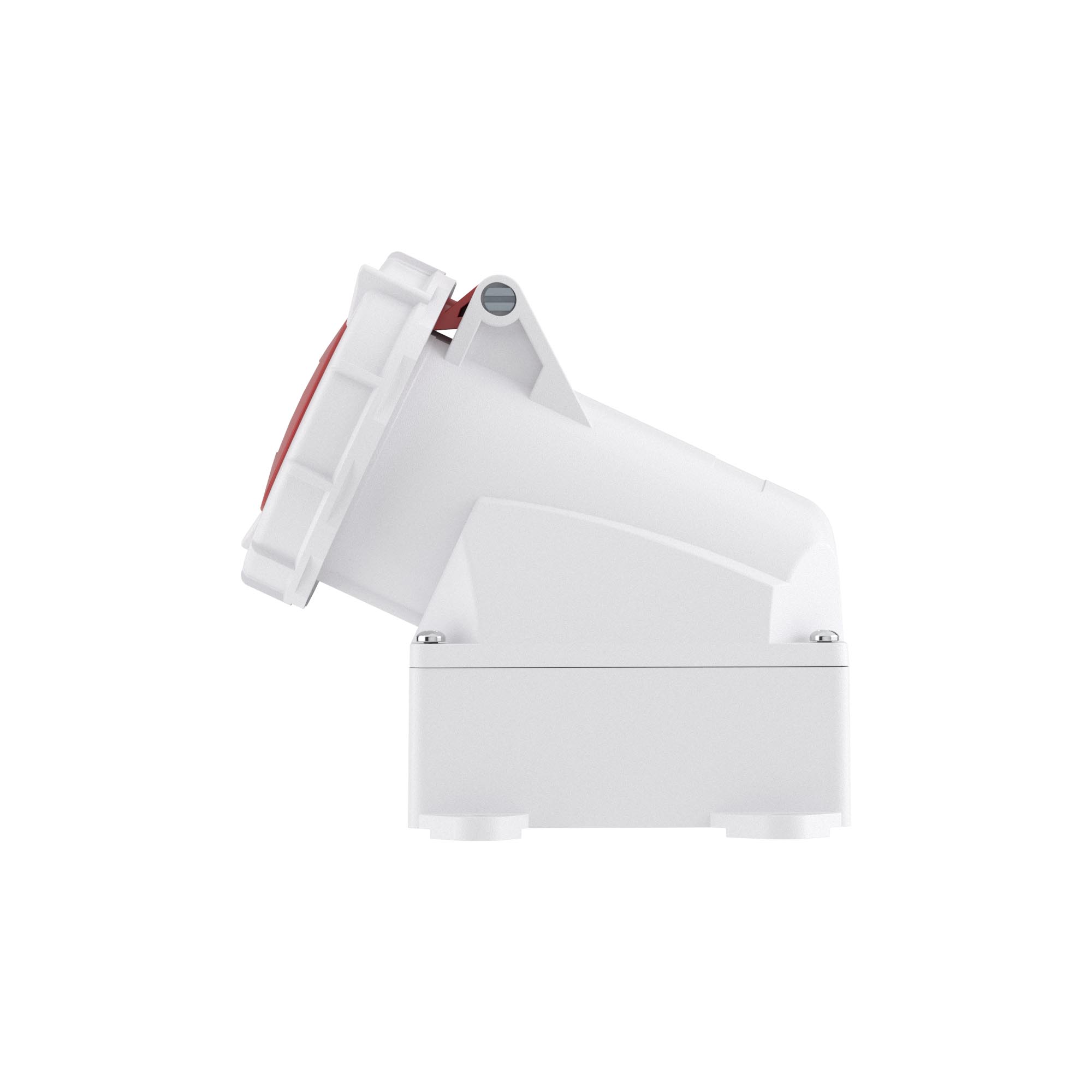

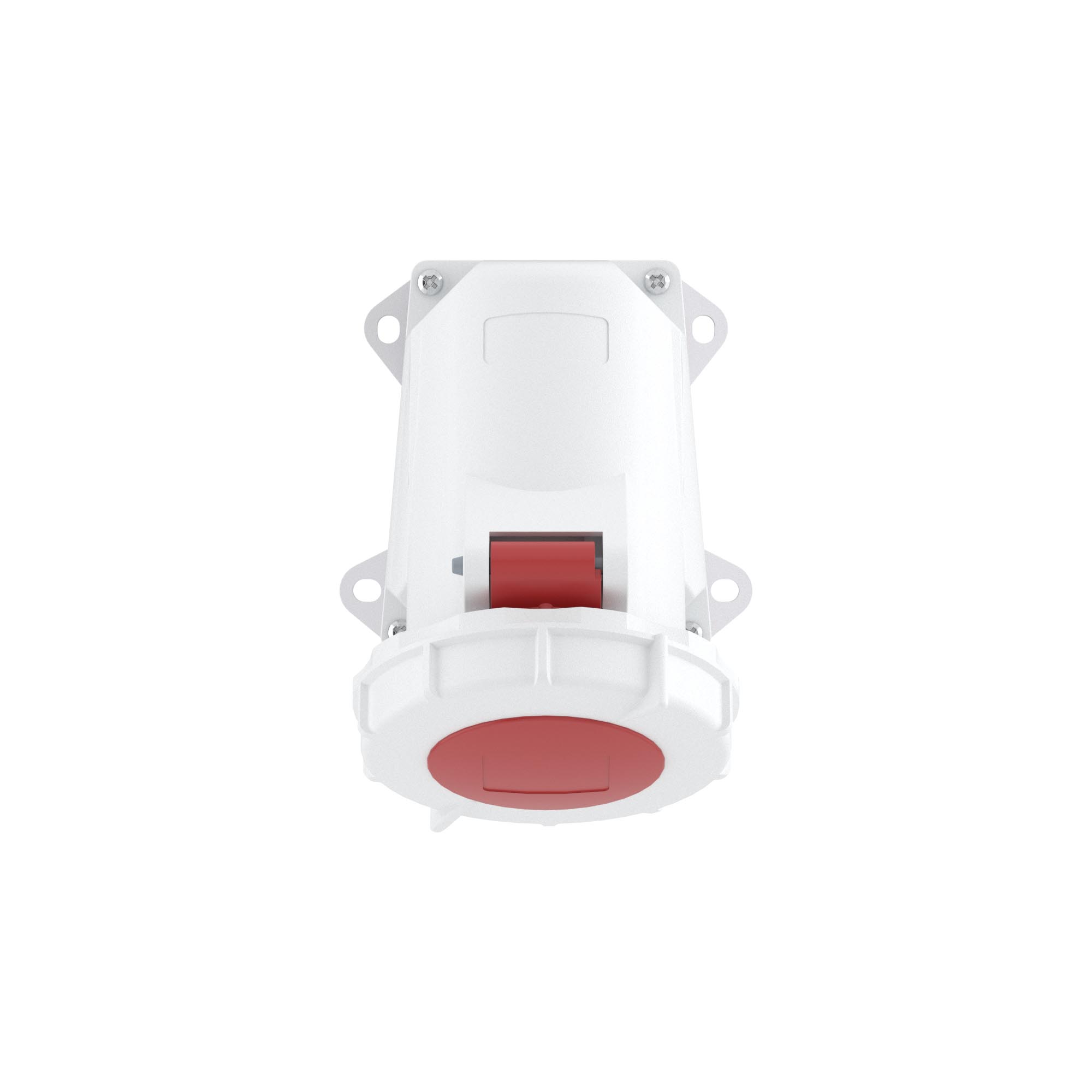

Surface mounting socket IP67 63A 3p+E+N 400V

Code: DIS5156357
Surface mounting socket IP67 63A 3p+E+N 400V
  • To ask a question
Model Surface mounted (plaster)
Number of poles 5
Material Plastic
Type of fastening External mounting
IEC-amperage, A 63
Degree of protection (IP) IP67
Military model No
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 185
Flange size horizontal 118
Width of device 118
Height of device 218
Depth of device 176
Height, mm 267
Width, mm 115
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 125
Product type Surface mounting socket
Voltage 400V

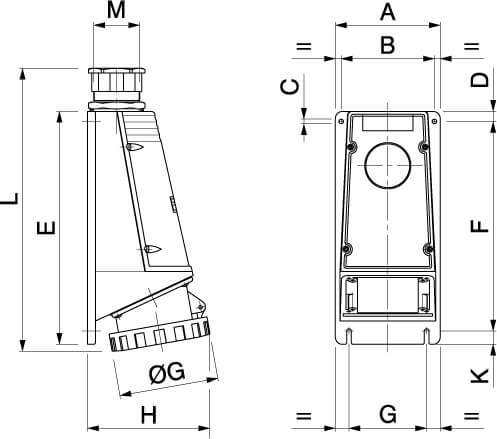

Drawings
