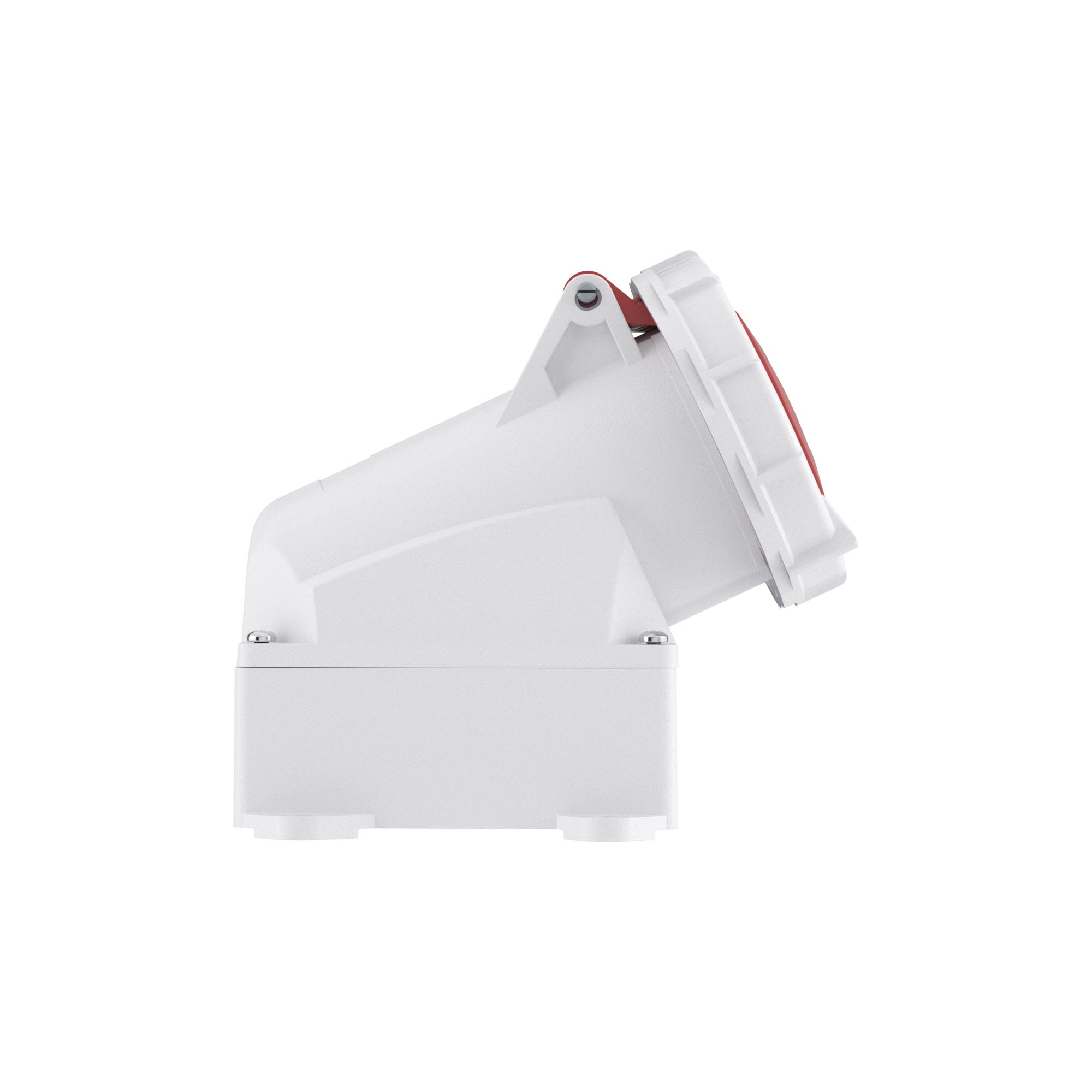

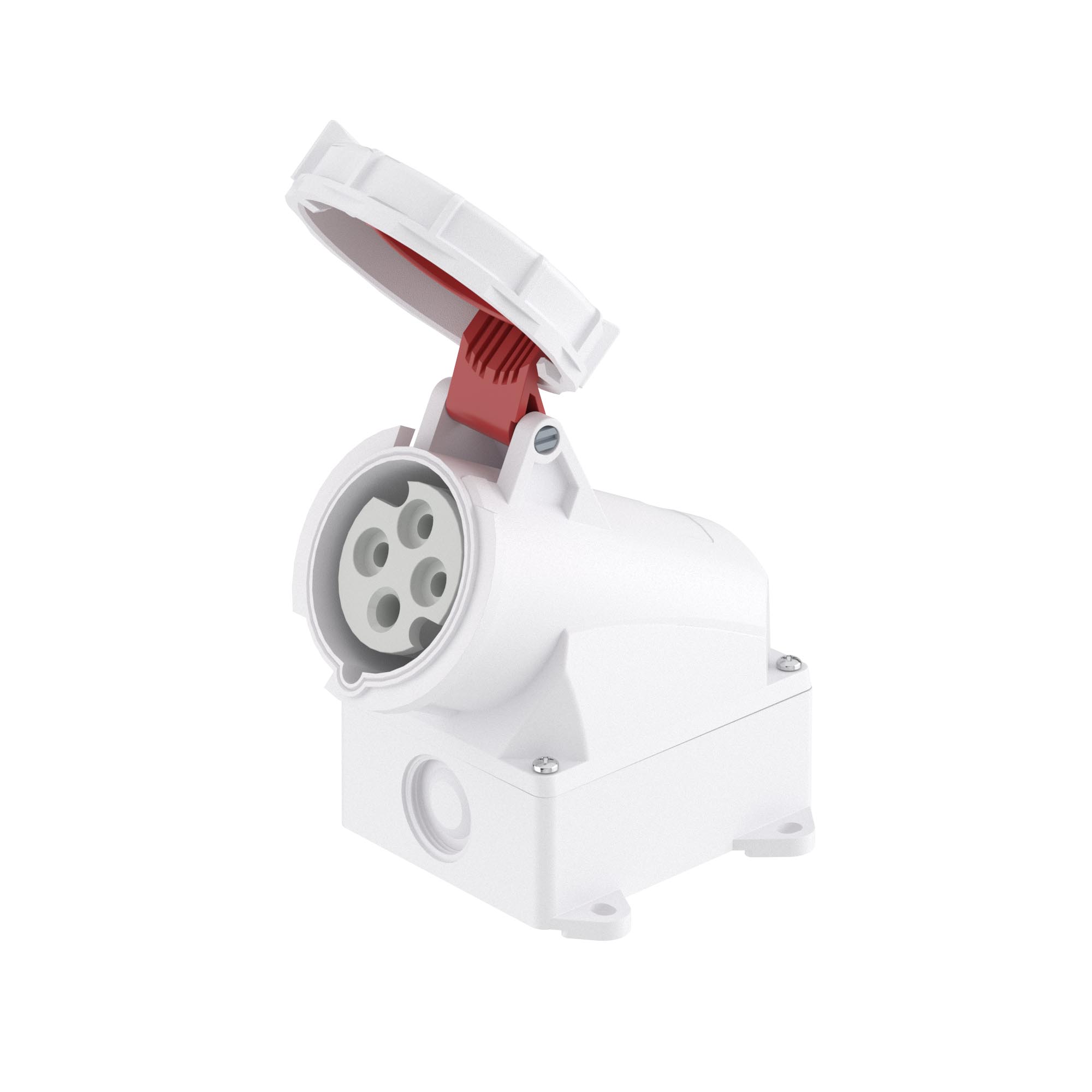

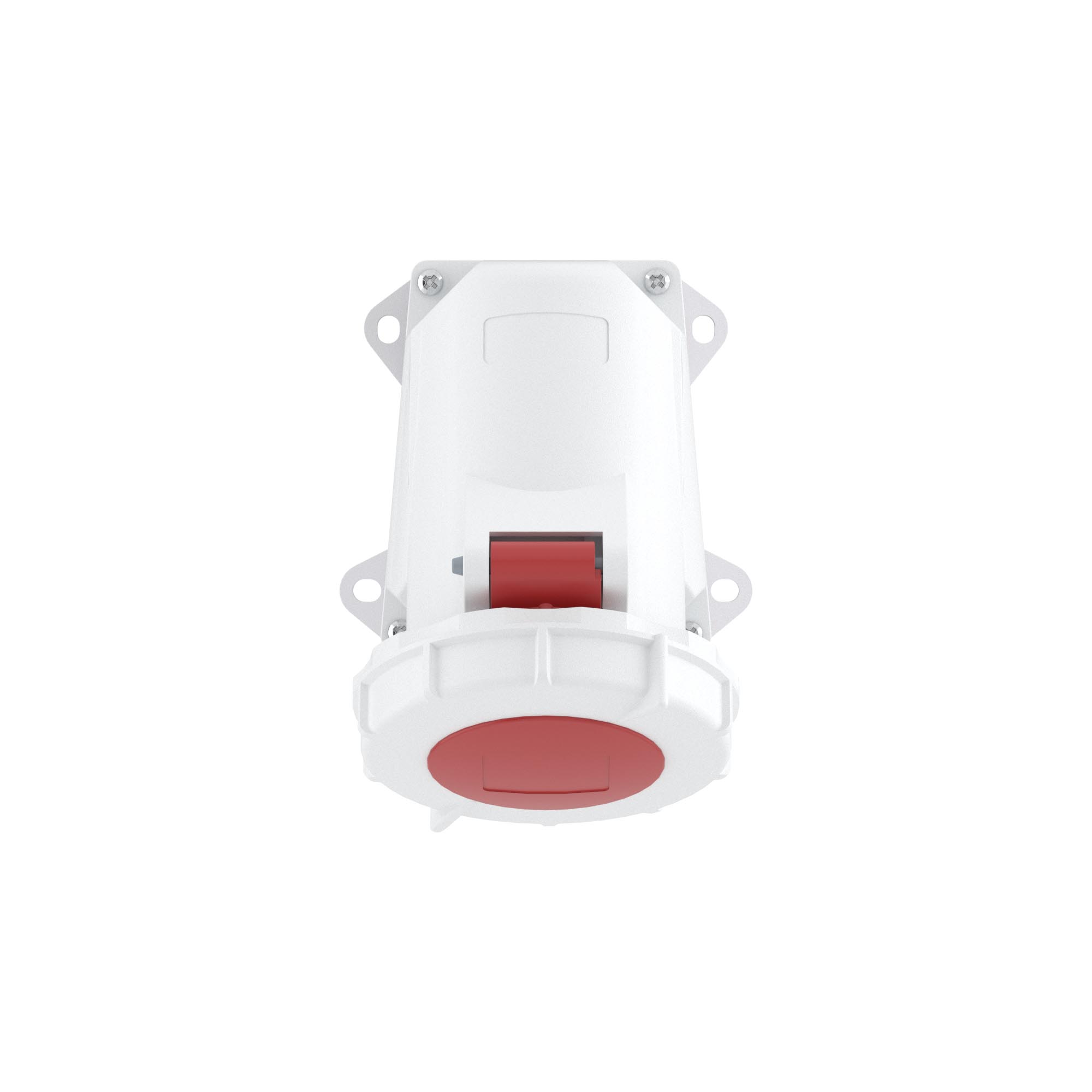

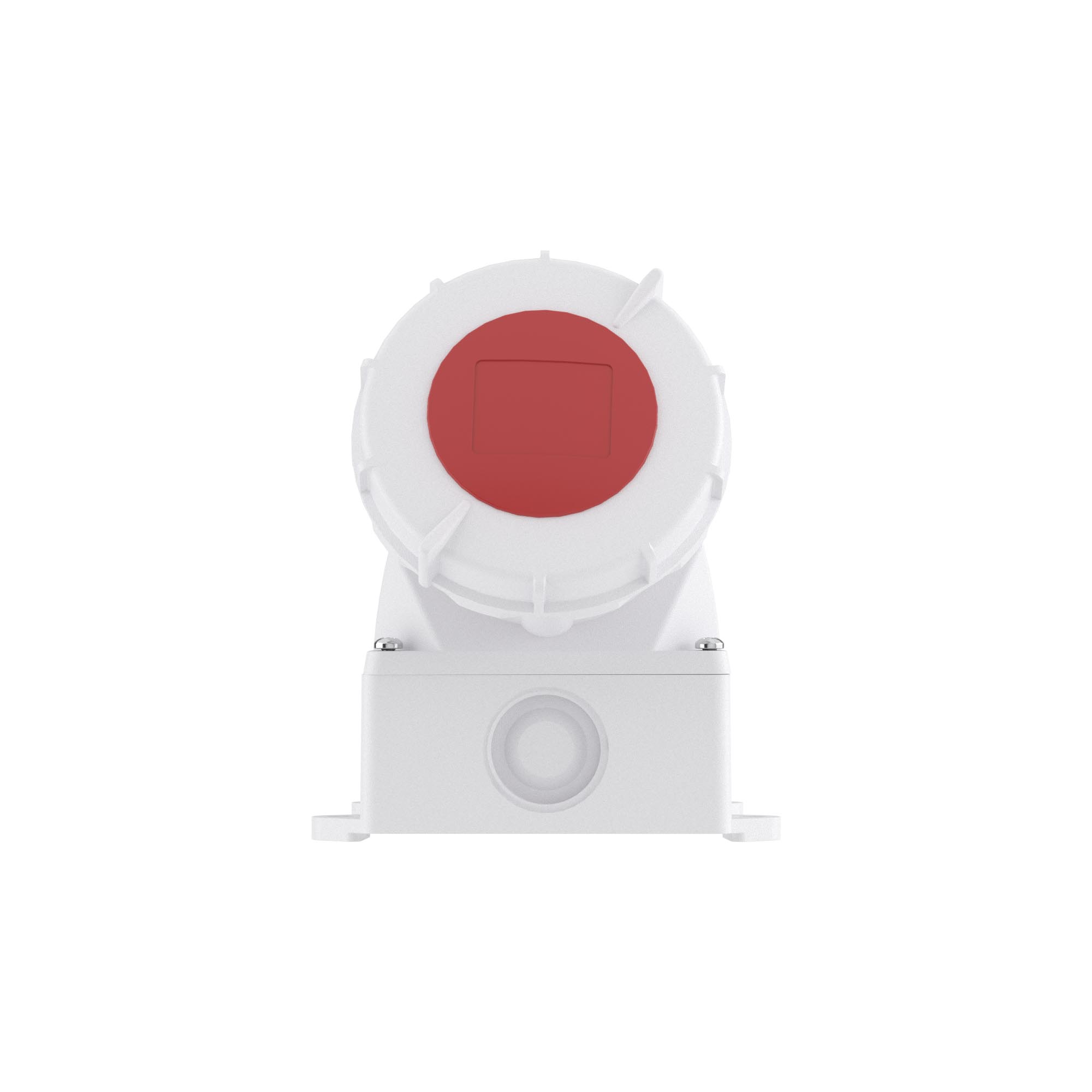

Surface mounting socket IP67 63A 3P+E 400V

Code: DIS5156356
Height, mm 267
Width, mm 115
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 125
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 63
Degree of protection (IP) IP67
Military model No
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Drill hole distance vertical 70
Flange size vertical 125
Flange size horizontal 136
Width of device 70
Height of device 70
Depth of device 144

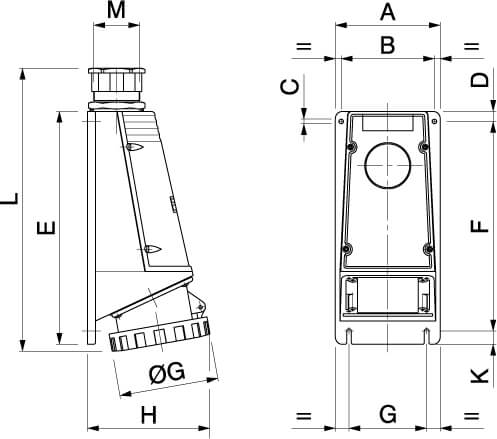

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
Quadro - industrial plugs
