Surface mounting socket IP67 125A 3p+E+N 400V

Code: DIS51512557
Surface mounting socket IP67 125A 3p+E+N 400V
  • To ask a question
Model Surface mounted (plaster)
Number of poles 5
Material Plastic
Type of fastening External mounting
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model Нет
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation Нет
Angle of plug Angled
For heavy conditions (according to VDE) Нет
Phase inverter Нет
Empty locations on mounting rail Нет
Number of height units 1
With earth leakage switch Нет
Total number of groups 1
Flange size vertical 260
Flange size horizontal 160
Width of device 160
Height of device 299
Depth of device 208
Height, mm 346
Width, mm 135
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 157
Product type Surface mounting socket
Voltage 400V

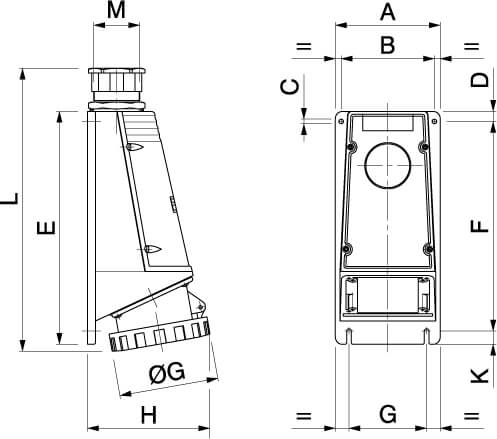

Drawings
