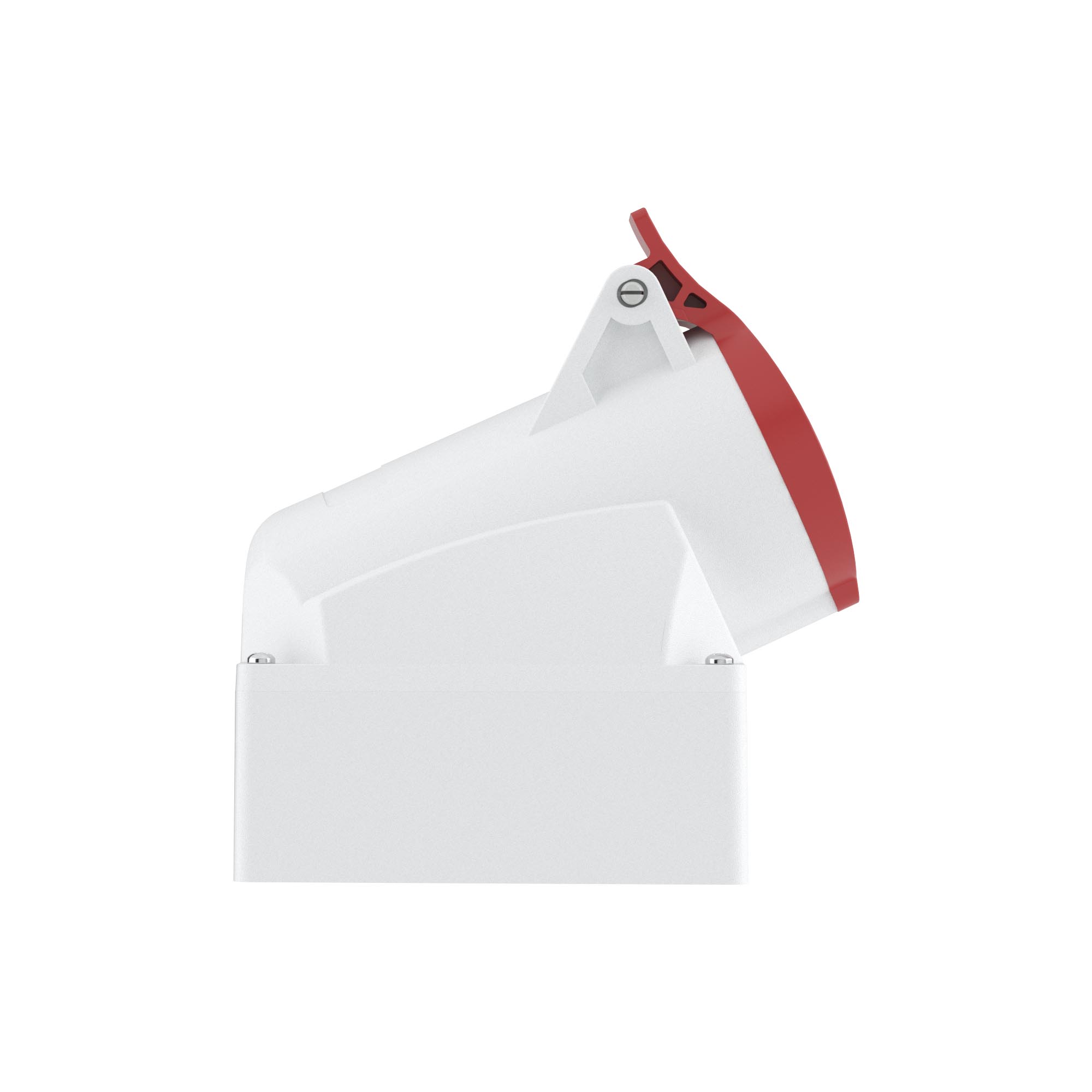

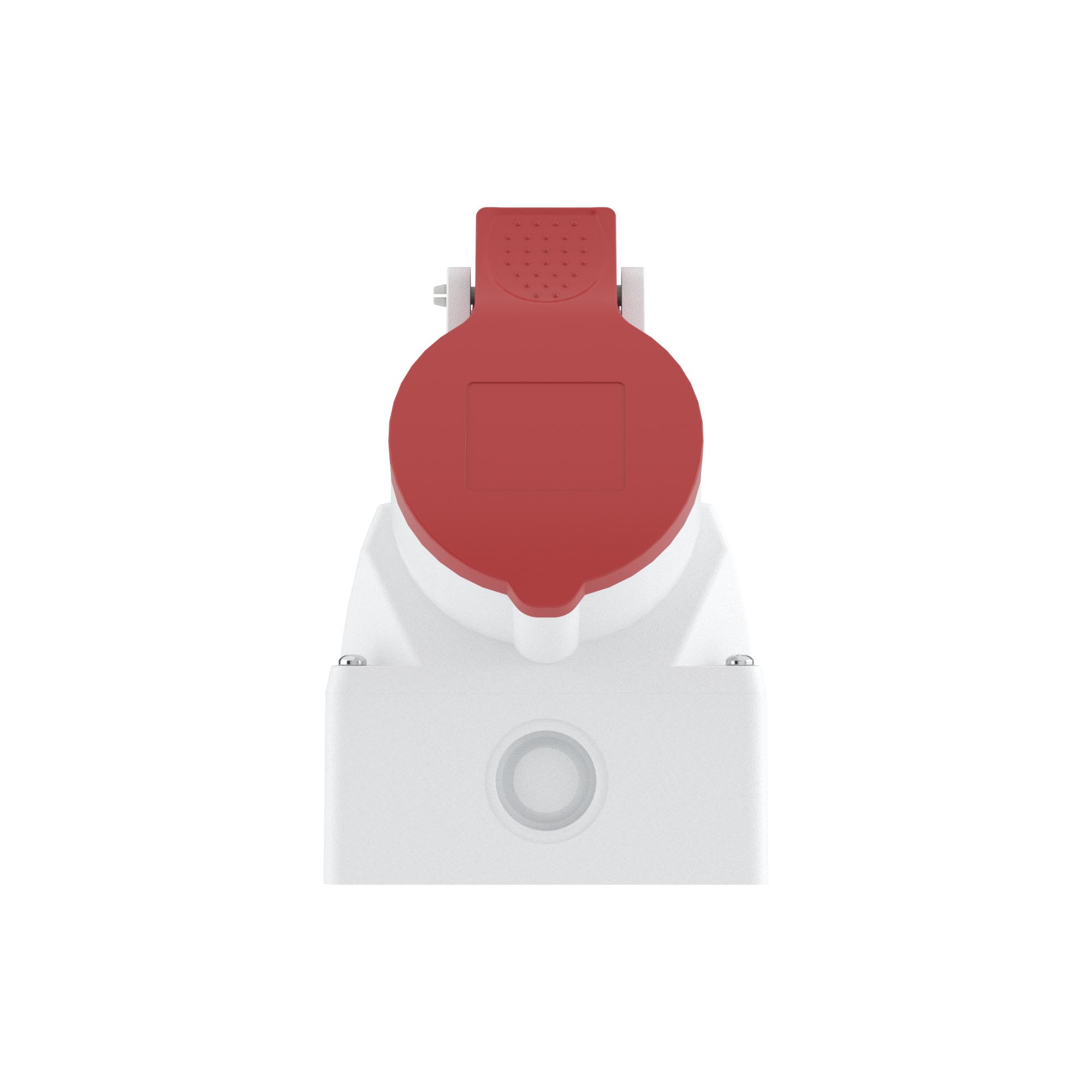

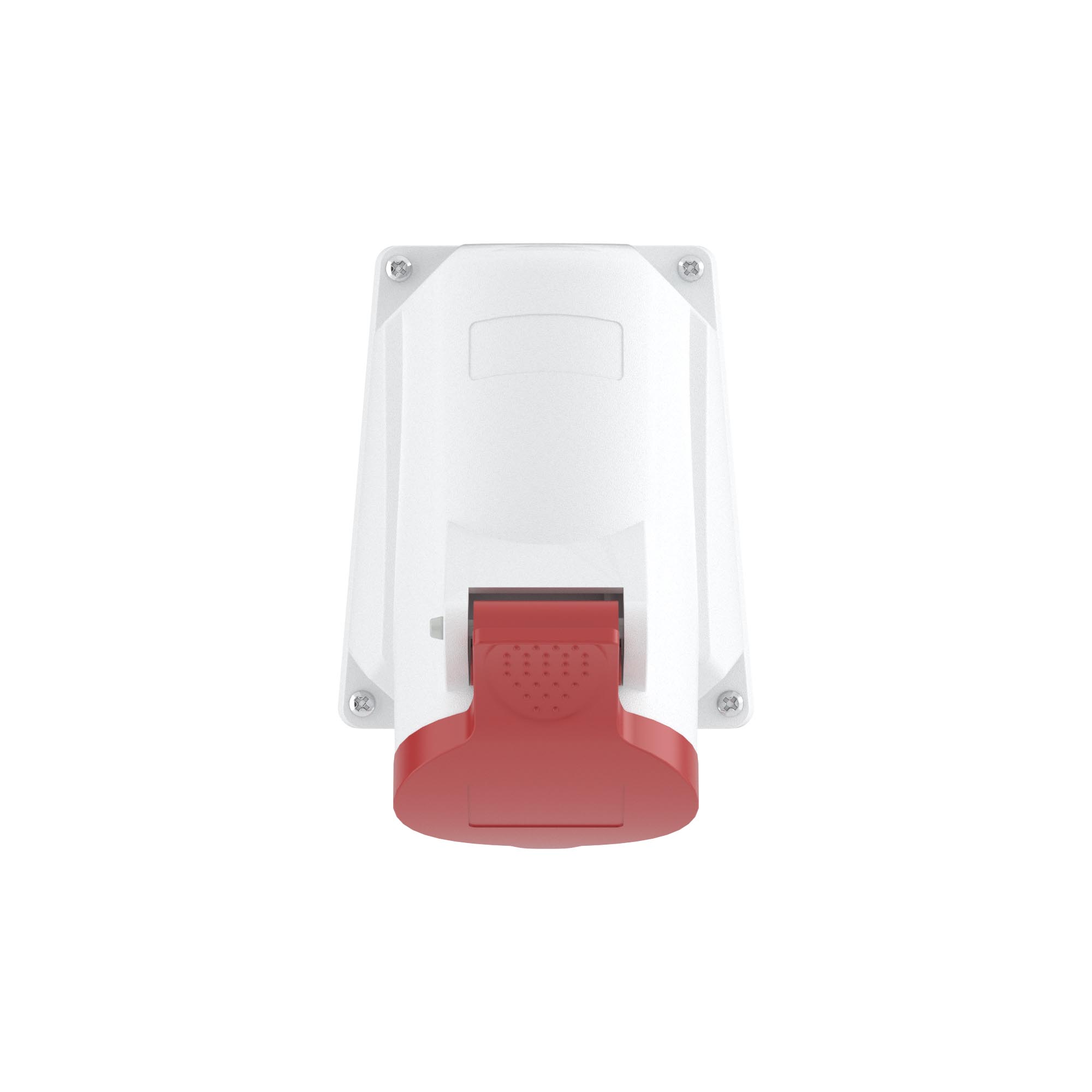

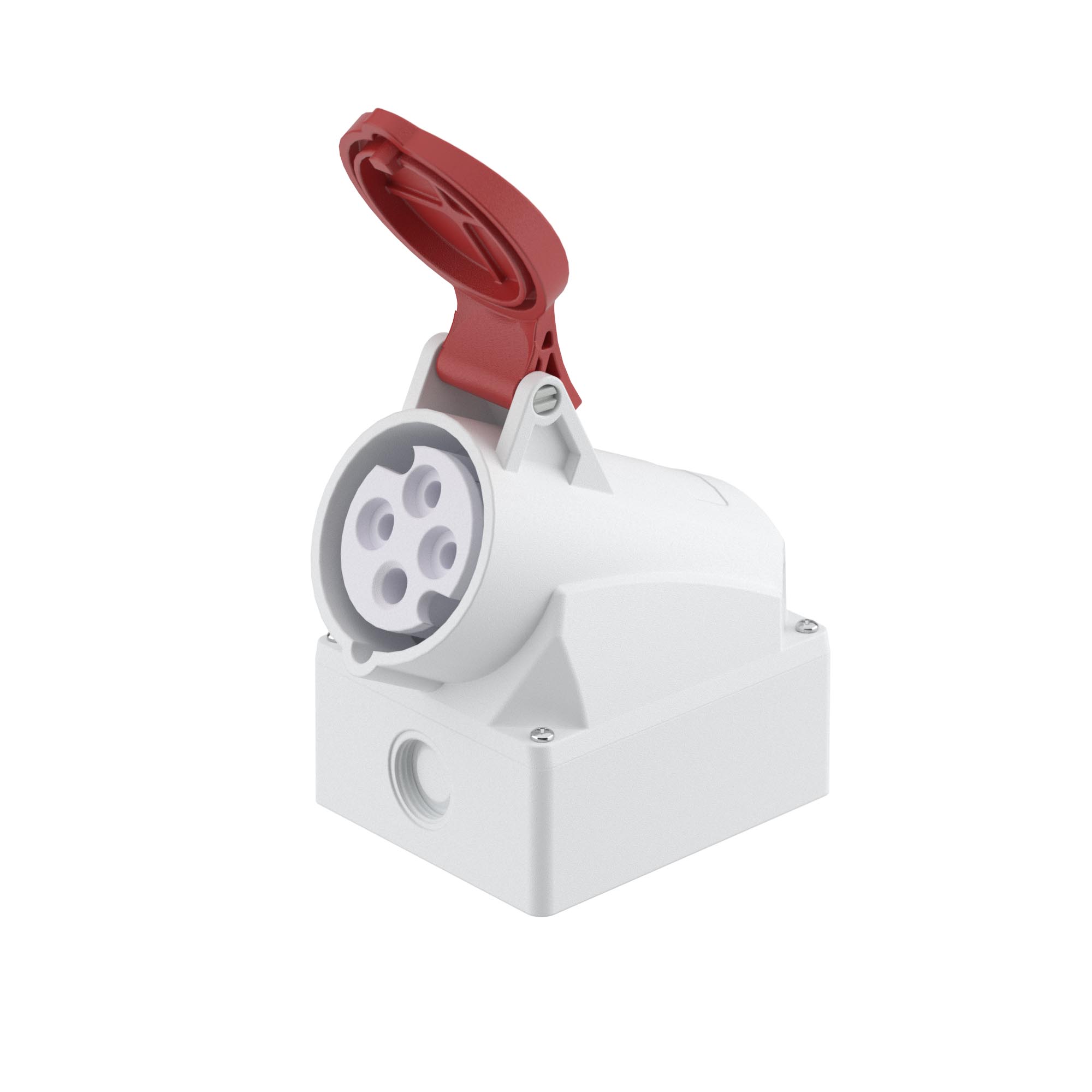

Surface mounting socket IP44 32A 3P+E 400V

Code: DIS5133256
Surface mounting socket IP44 32A 3P+E 400V
  • To ask a question
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 141
Flange size horizontal 99
Width of device 99
Height of device 182
Depth of device 115
Height, mm 182
Width, mm 99
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 115
Product type Surface mounting socket
Voltage 400V

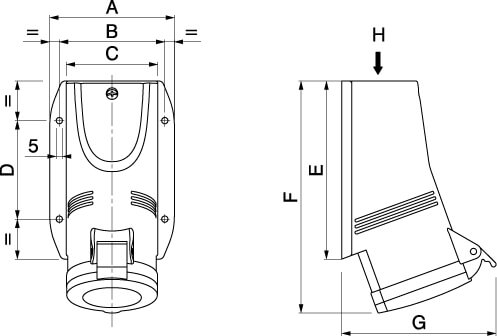

Drawings
