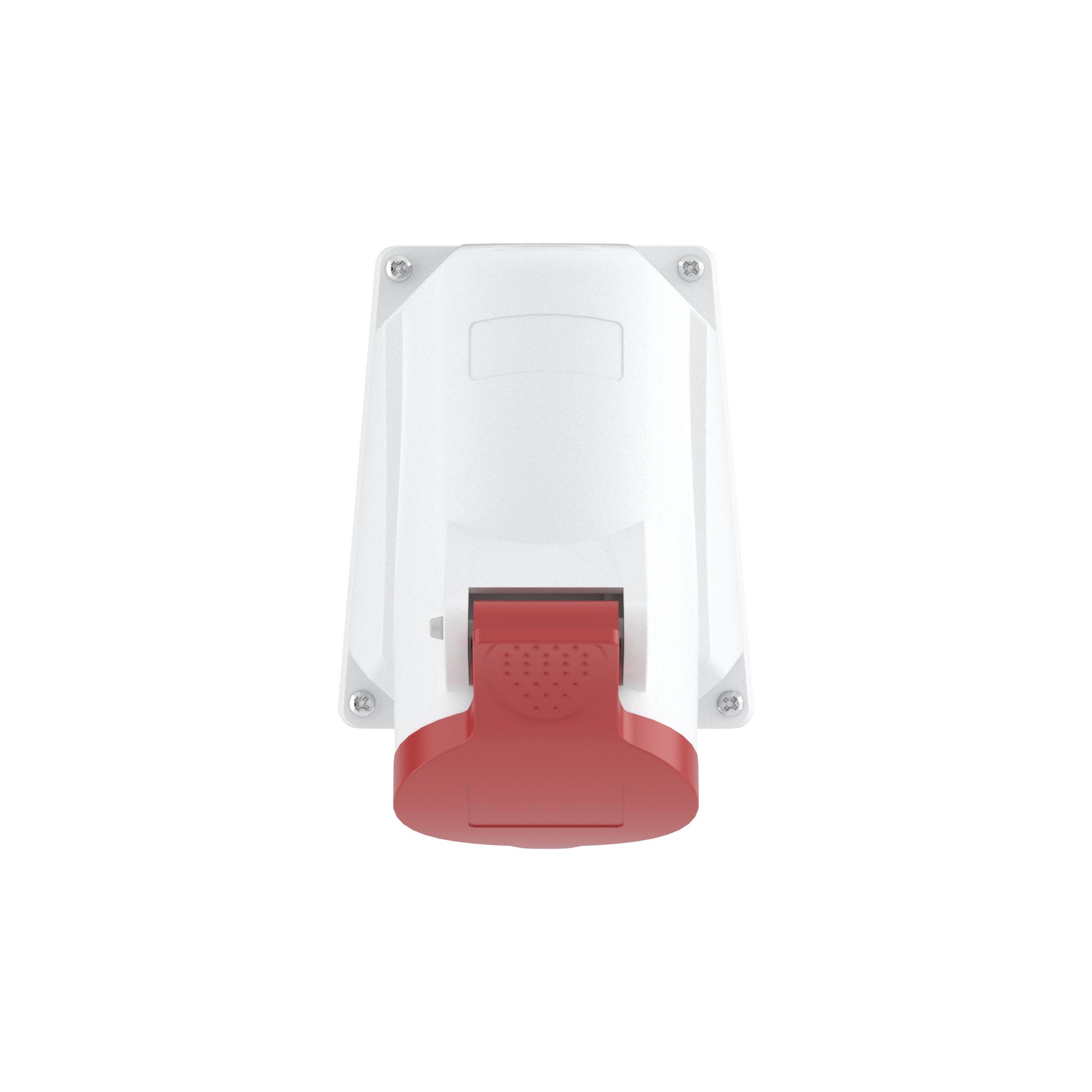

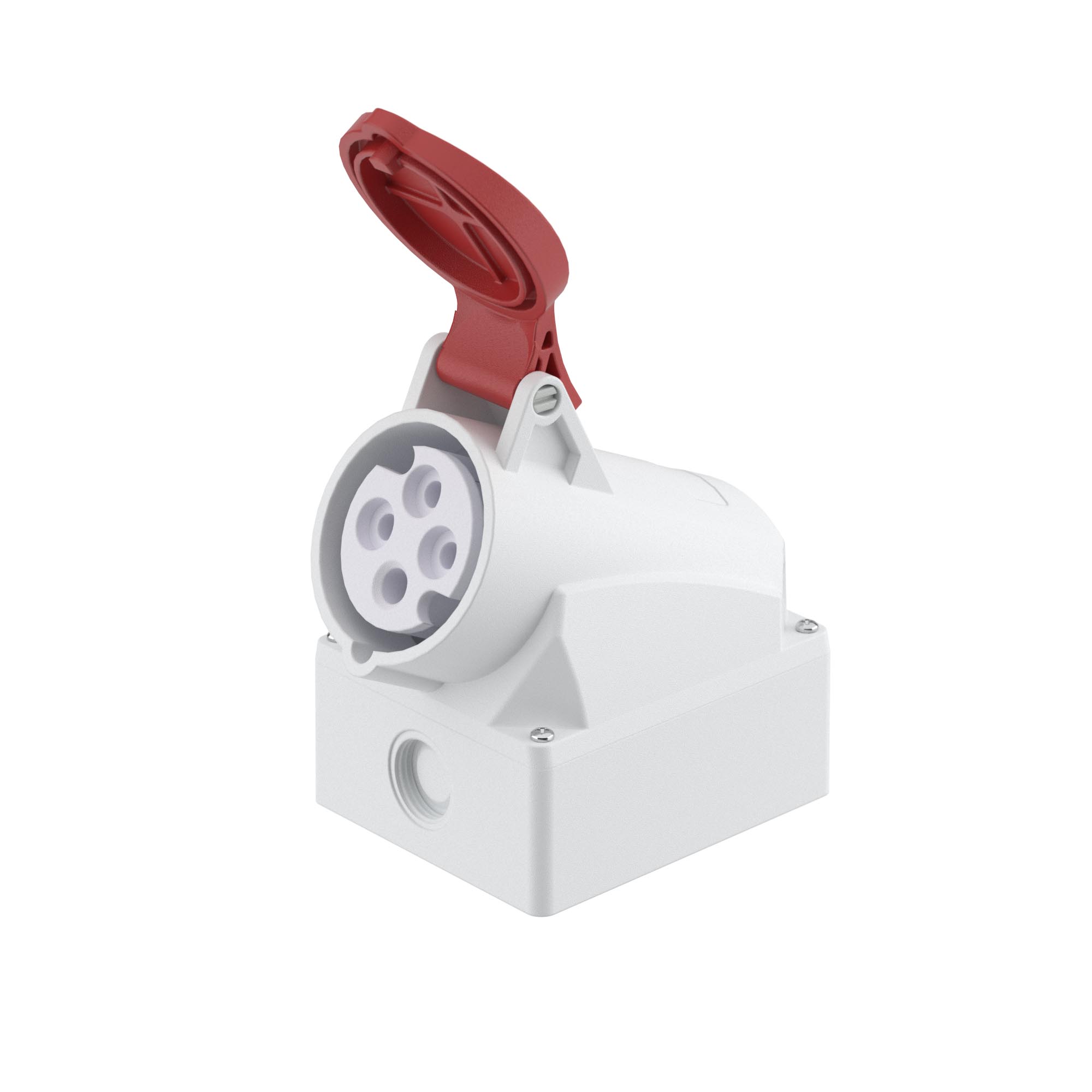

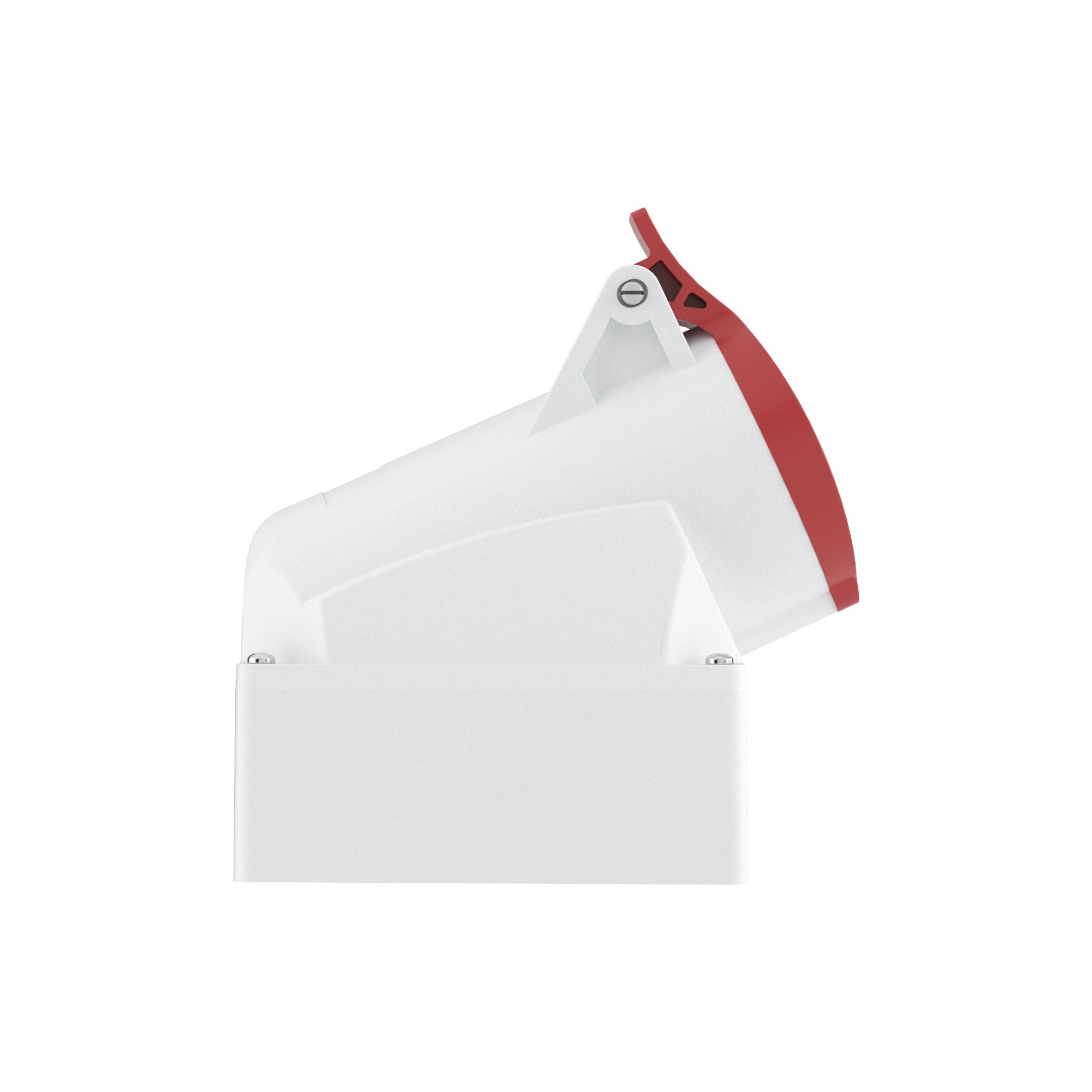

Surface mounting socket IP44 16A 3P+E 400V

Code: DIS5131656
Surface mounting socket IP44 16A 3P+E 400V
Surface mounting socket IP44 16A 3P+E 400V
Height, mm 155
Width, mm 91
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 103
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 75
Flange size horizontal 75
Width of device 112
Height of device 220
Depth of device 220
