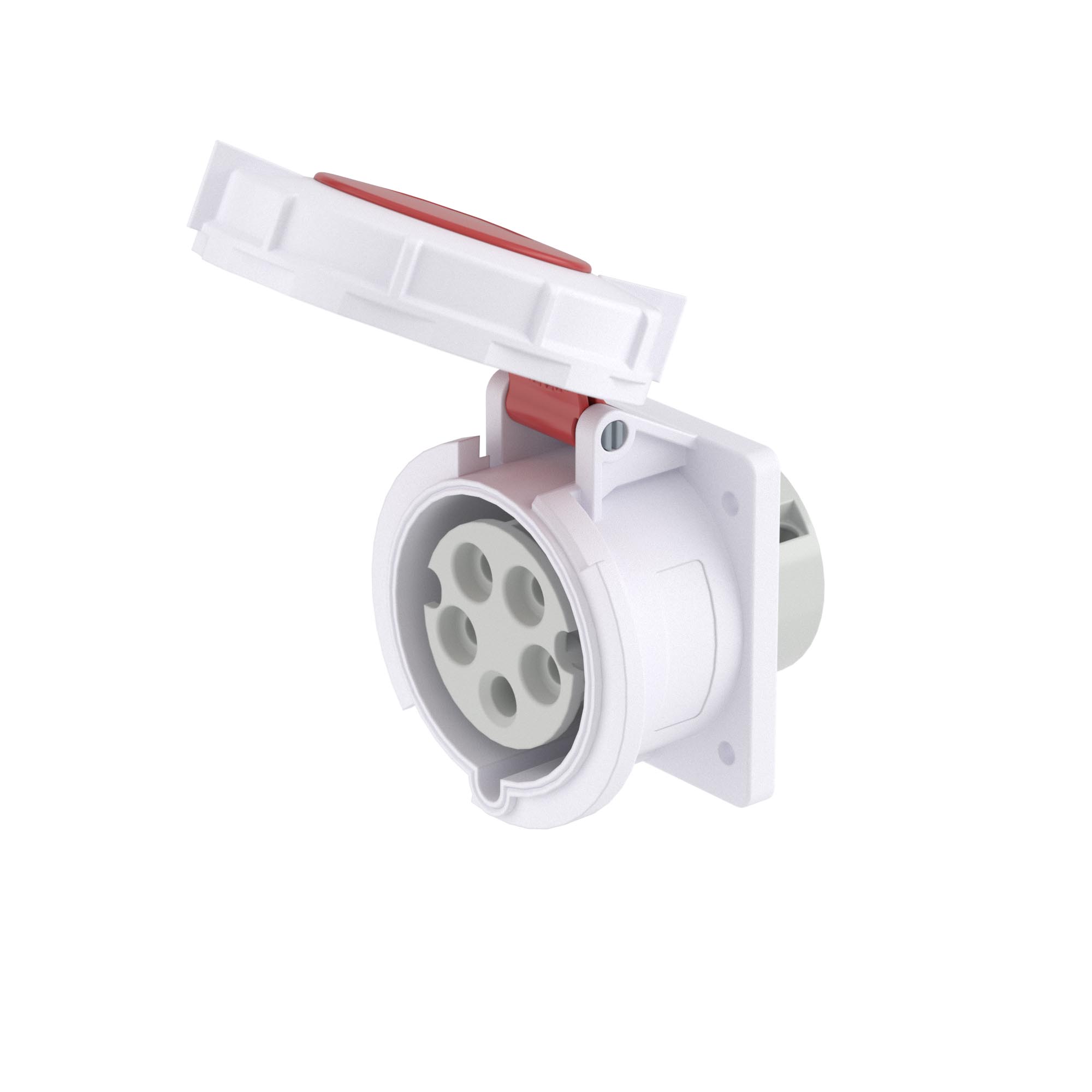

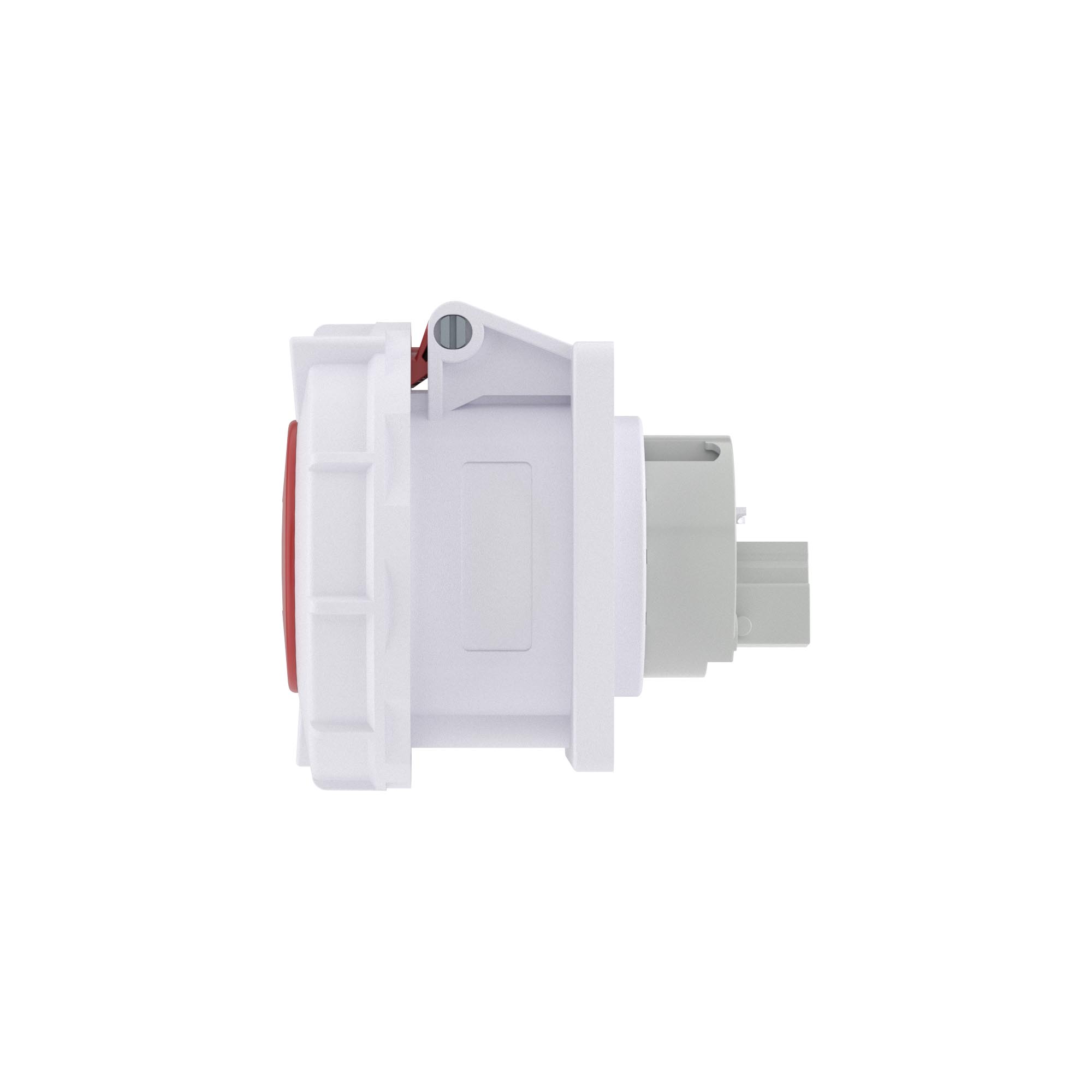

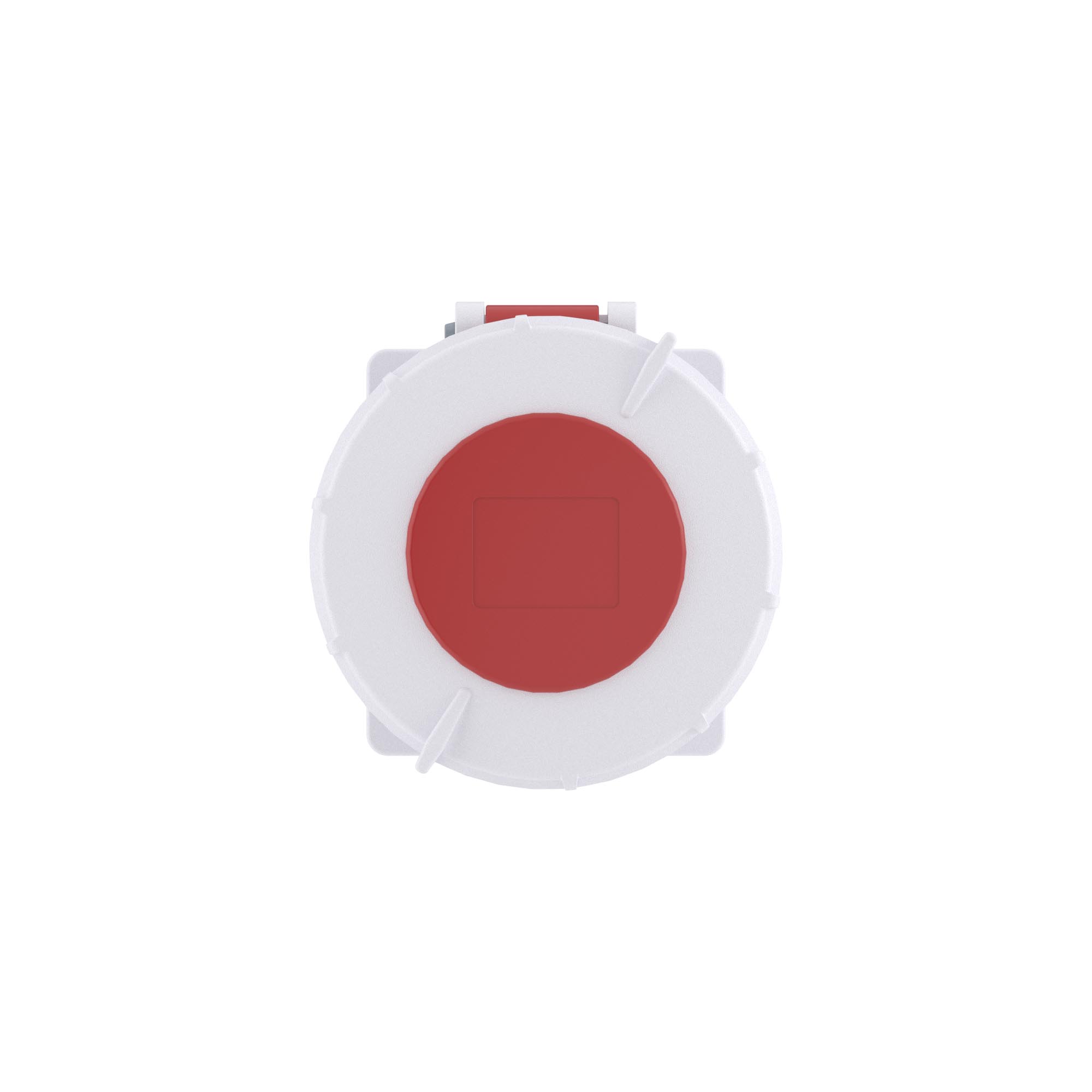

Panel socket PSS IP67 32A 3P+E+N 400V
Code: DIS4273267
Panel socket PSS IP67 32A 3P+E+N 400V
Code: DIS4273267
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage, A | 32 |
| Degree of protection (IP) | IP67 |
| Military model | Yes |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 75 |
| Flange size horizontal, mm | 75 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Height, mm | 75 |
| Width, mm | 75 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 5 |
| Depth, mm | 69 |
| Product type | Flush-mounting socket |
| Voltage | 400V |
| Q'ty of poles | 3P+E+N |
| Degree of protection | IP67 |
| Current | 32А |

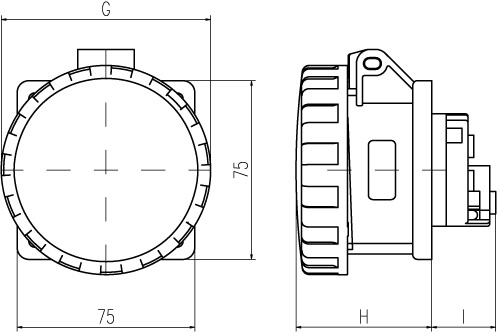

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
