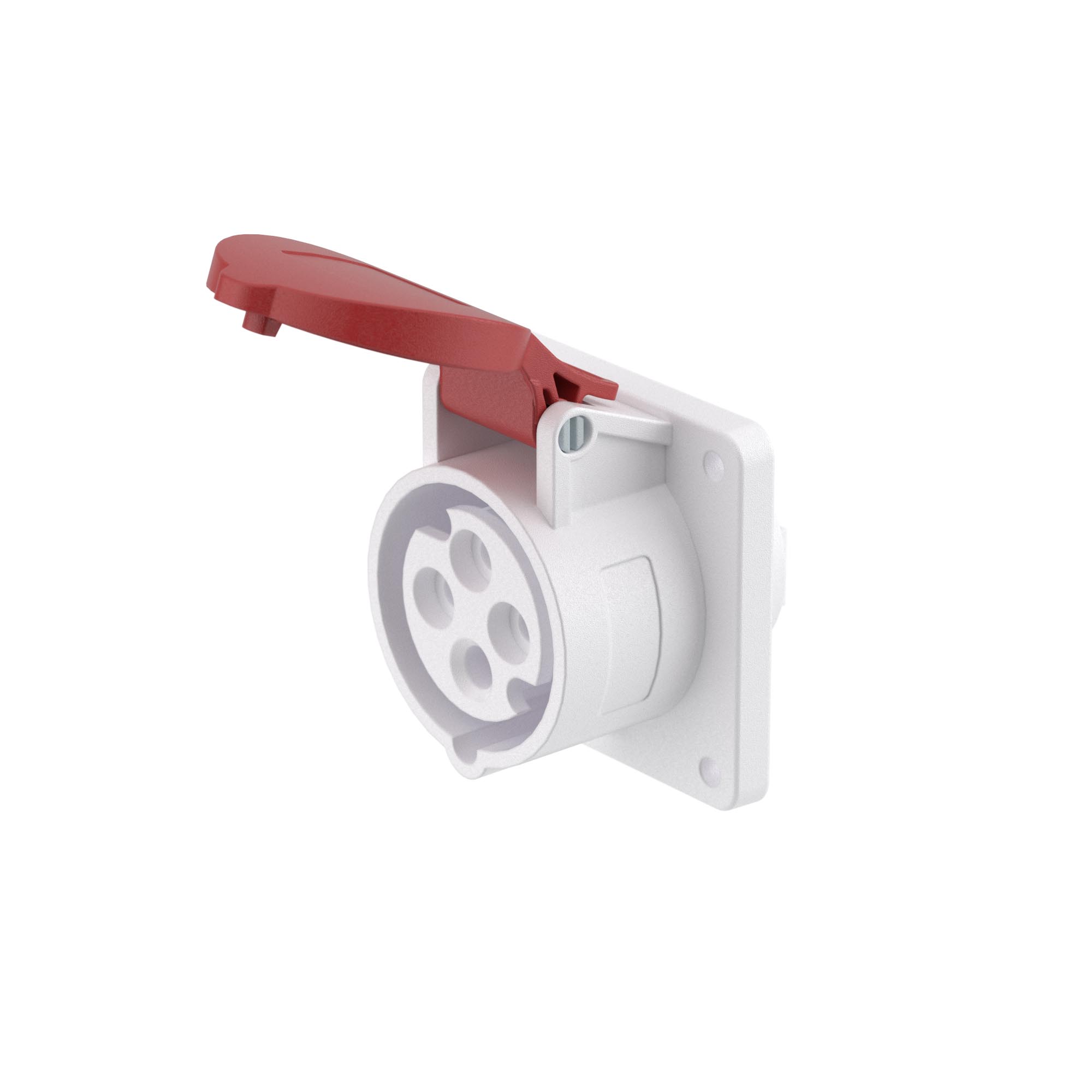

Flanged socket IP44 32A 3P+E 400V

Code: DIS4223266
Flanged socket IP44 32A 3P+E 400V
  • To ask a question
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red

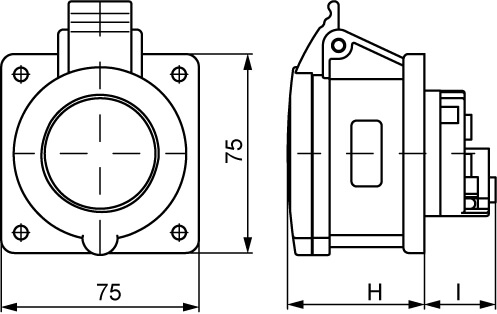

Flange size vertical, mm 75
Flange size horizontal, mm 75
Angle of plug Straight
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 75
Height of device 75
Depth of device 103
Height, mm 75
Width, mm 75
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 62
Product type Flush-mounting socket
Voltage 400V
