Flush mounting angled socketIP67 32A 3P+E 400V

Code: DIS4183266

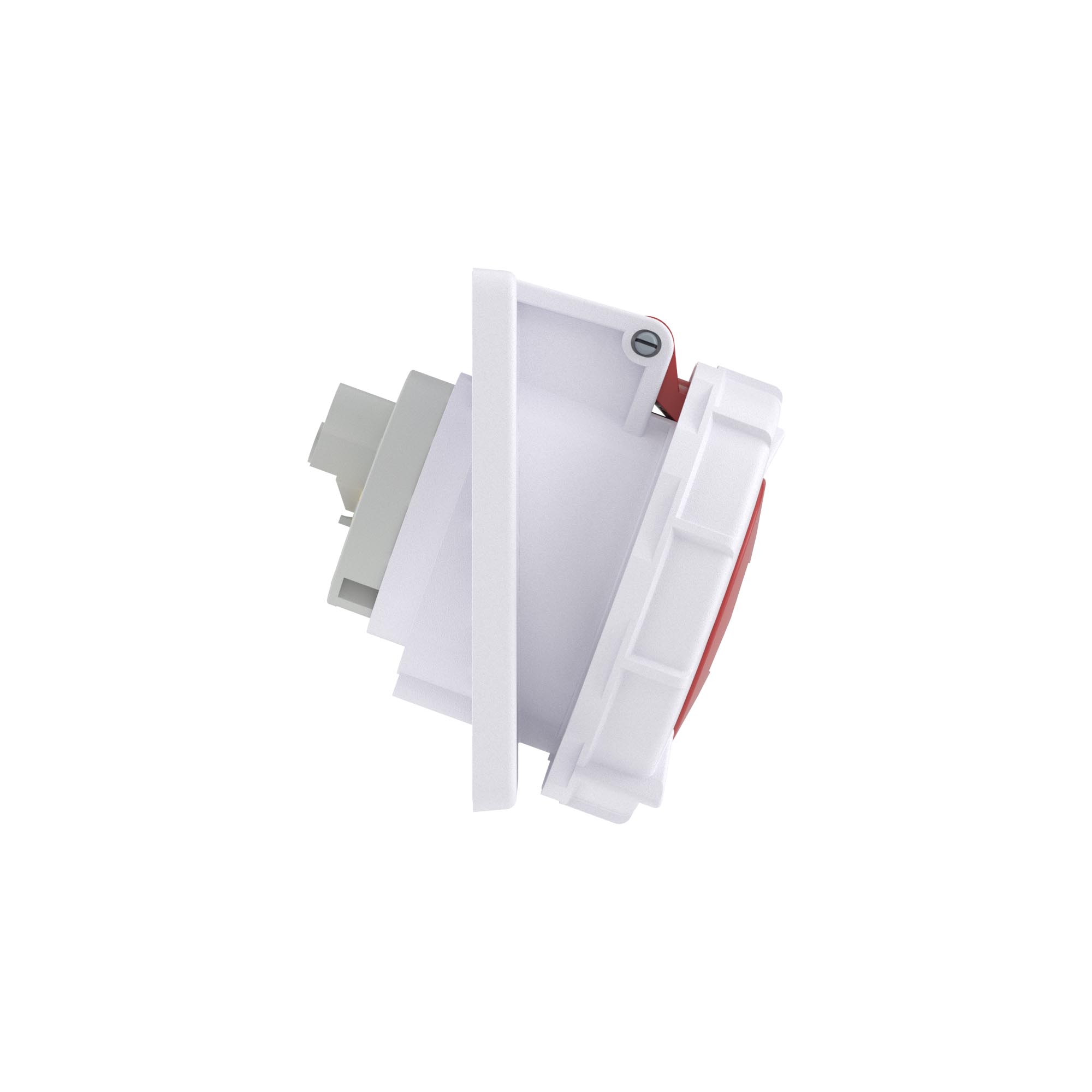

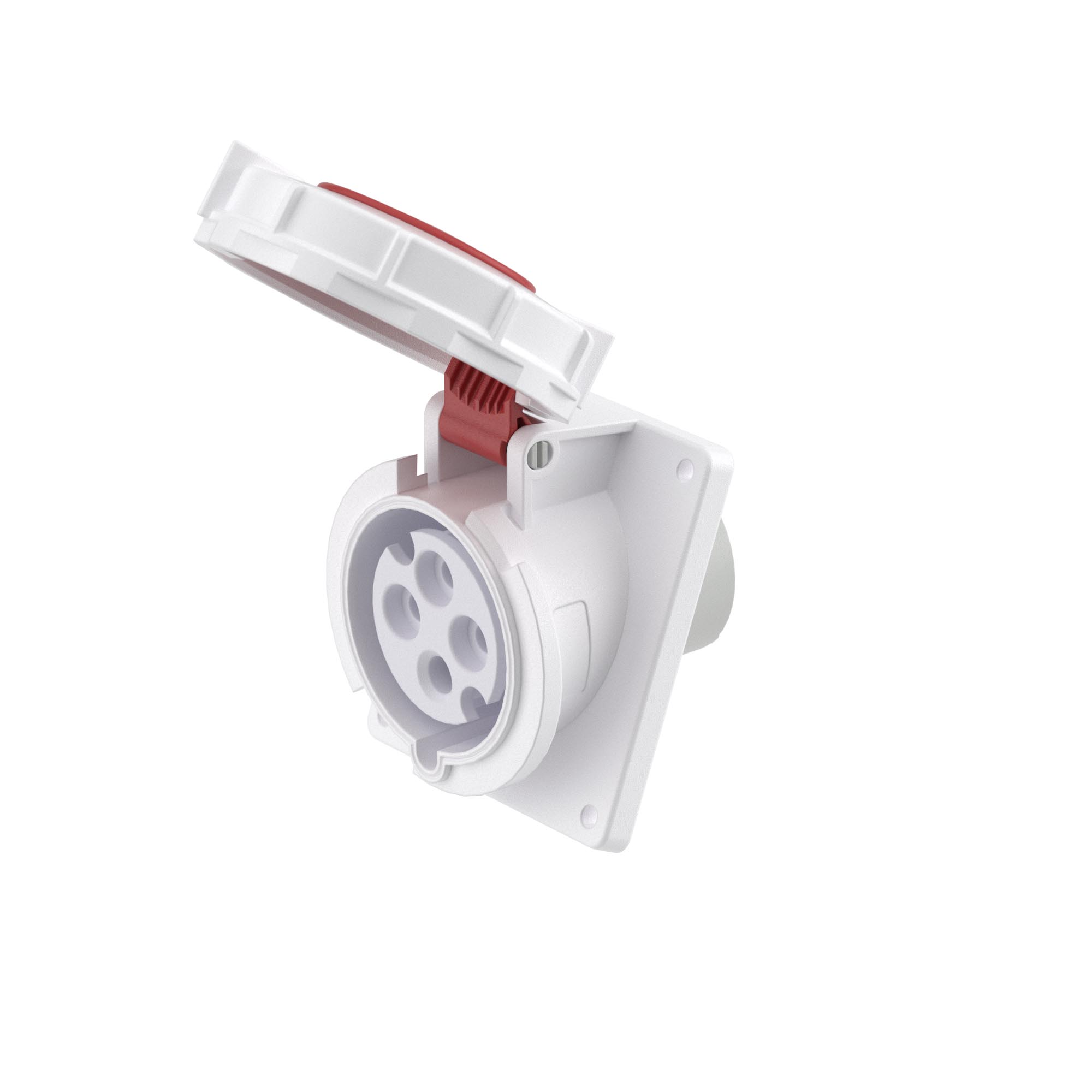

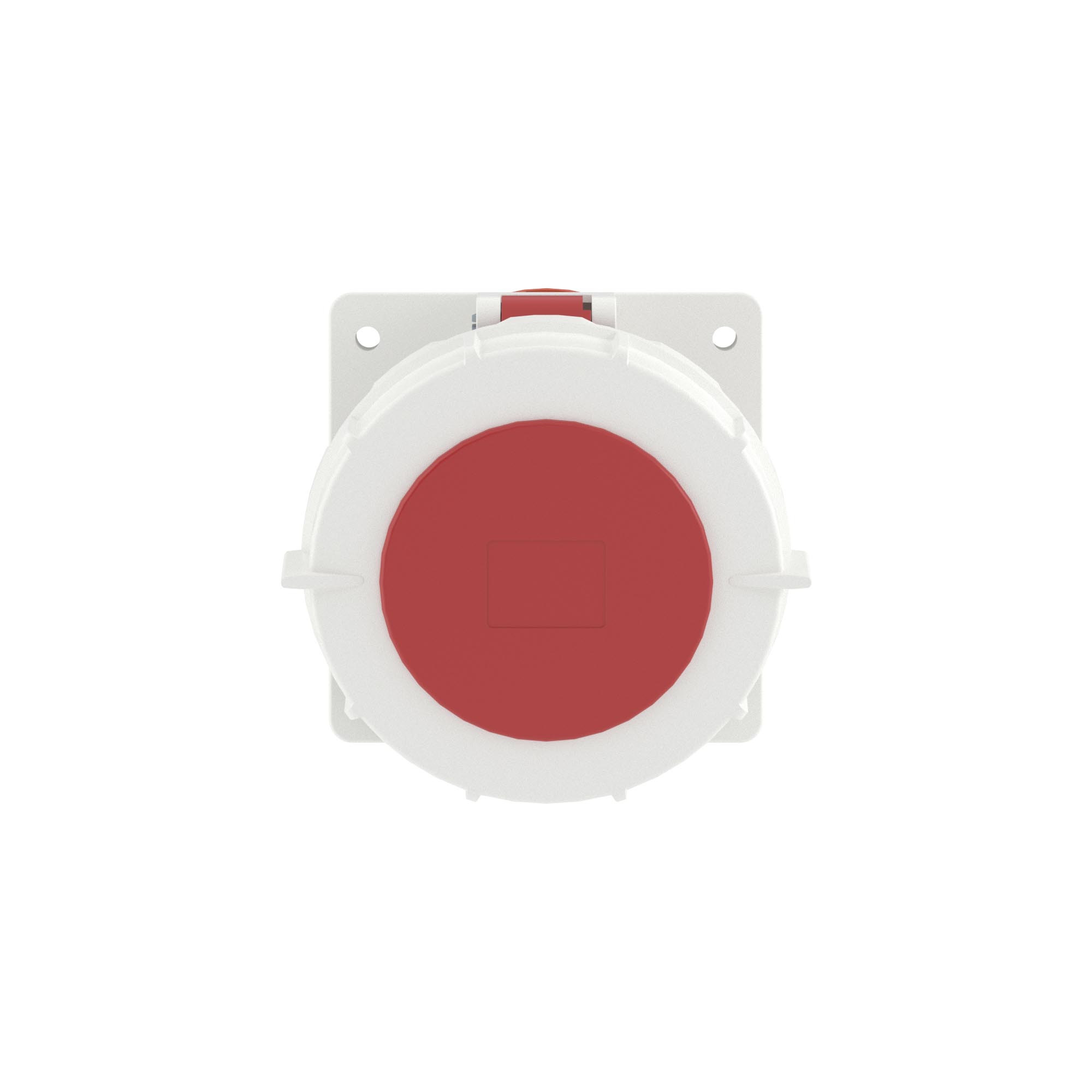

Flush mounting angled socketIP67 32A 3P+E 400V
Flush mounting angled socketIP67 32A 3P+E 400V
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 106
Flange size horizontal, mm 90
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 88
Height of device 153
Depth of device 153
Color gray
Material of case Polyamide
Height, mm 106
Width, mm 90
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 61

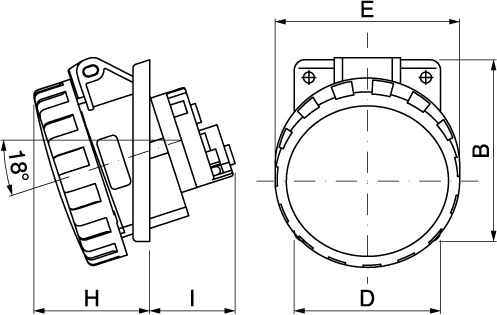

Drawings
