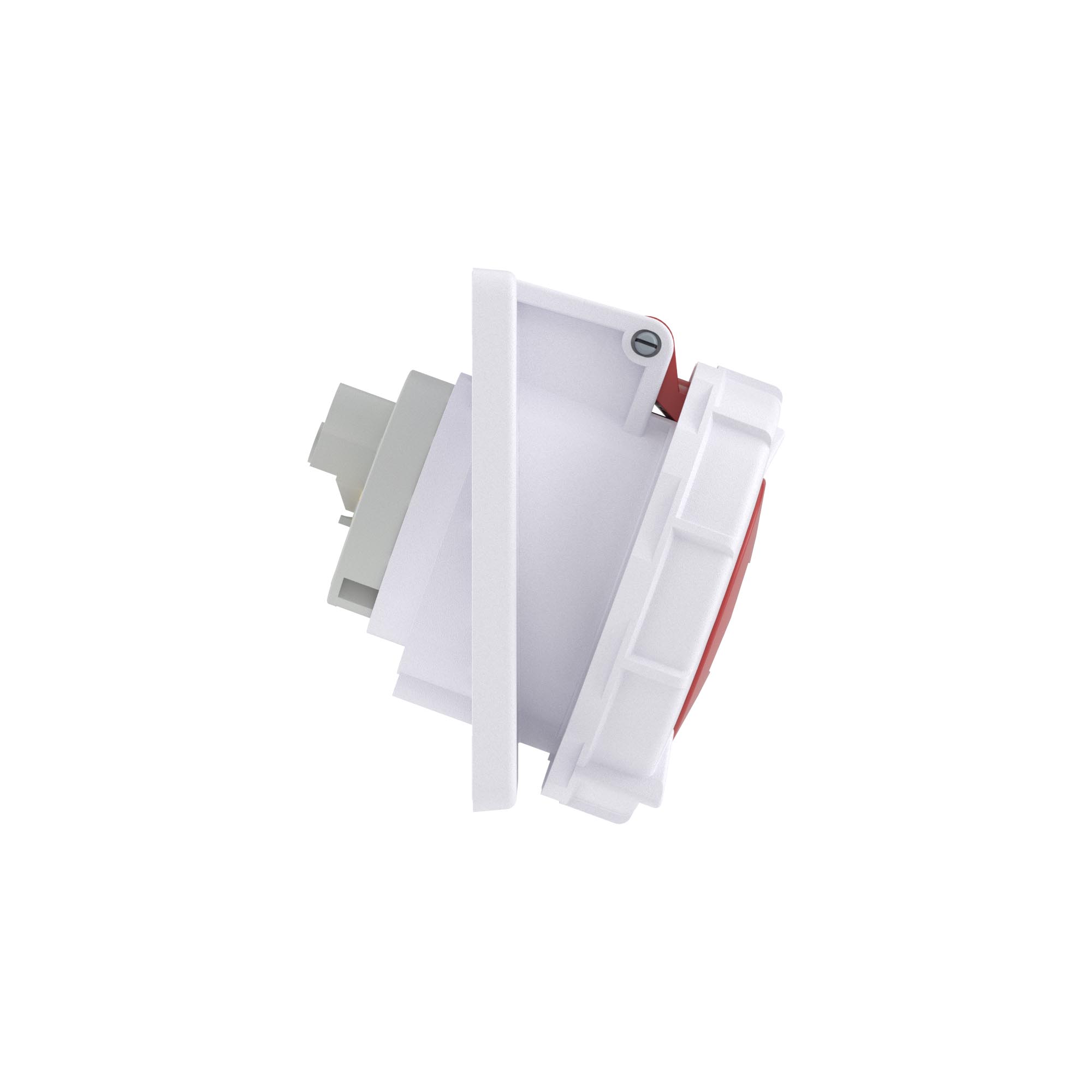

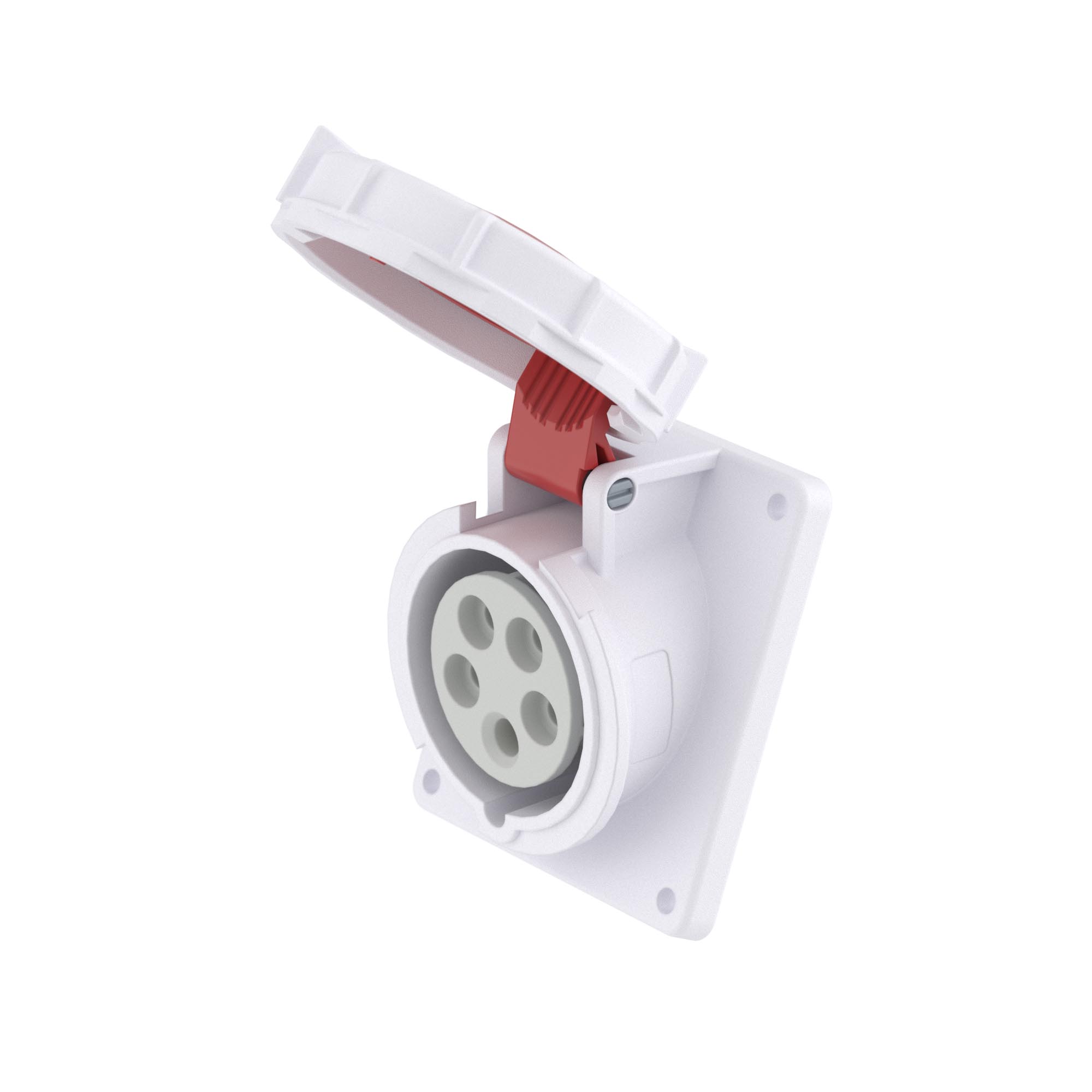

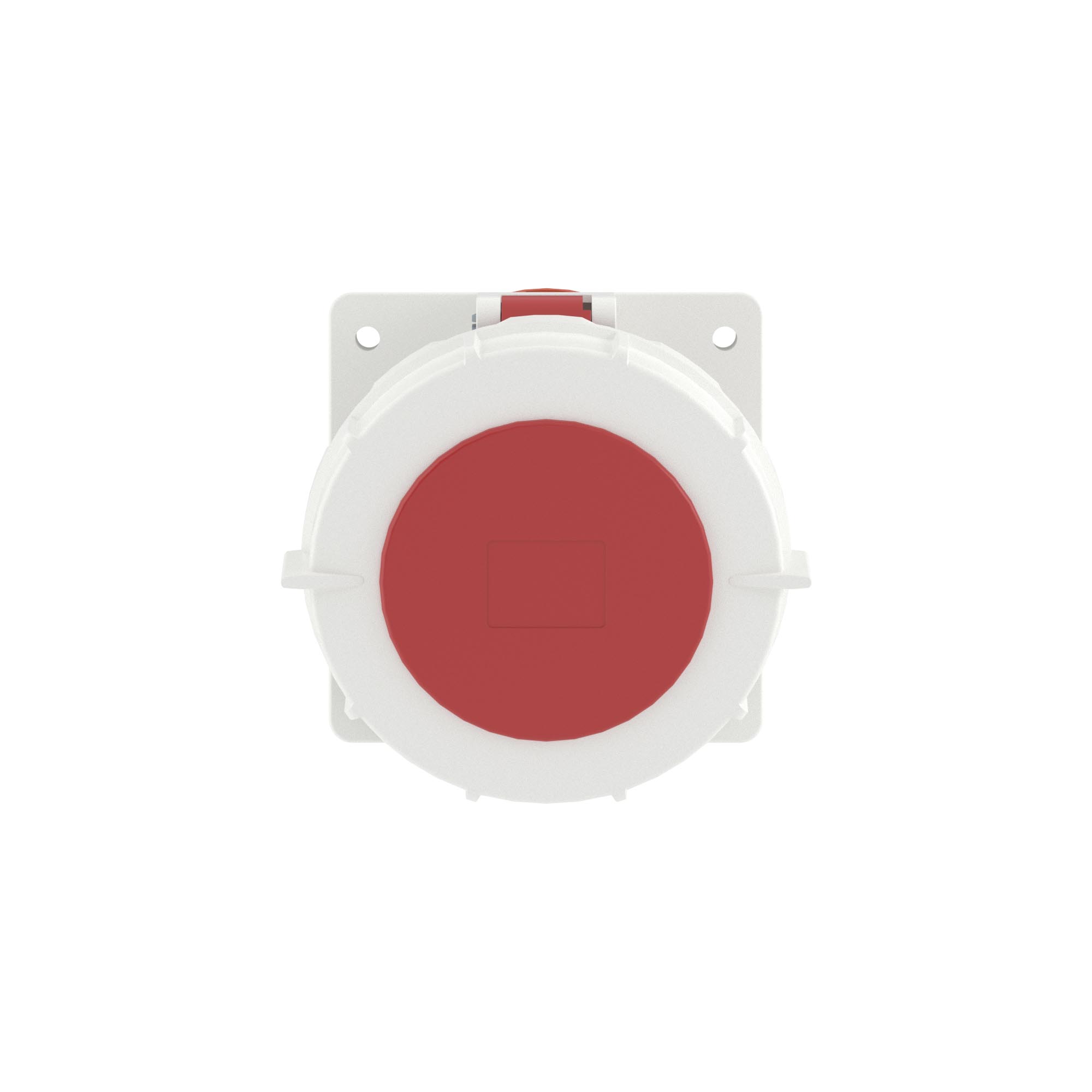

Flanged socket, angled IP67 16A 3P+E+N 400V

Code: DIS4181667
Number of poles 5
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 87
Flange size horizontal, mm 70
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 88
Height of device 153
Depth of device 153
Height, mm 87
Width, mm 70
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 55

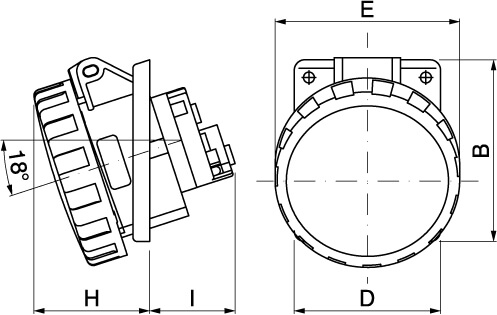

Drawings
