Code: DIS41512566
Number of poles3
MaterialPlastic
IEC-amperage, A125
Degree of protection (IP)IP67
Military modelNo
Clock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, h6
Identification colourRed
Voltage acc. EN 60309-2400 V (50+60 Hz) red

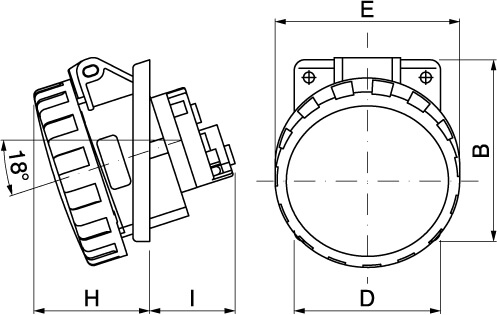

Flange size vertical, mm114
Flange size horizontal, mm90

Enclosures and accessories
Seria Name Eplan DWG
Quadro - industrial plugs The System "Quadro" Link
The system "Quadro" industrial connectors Link
