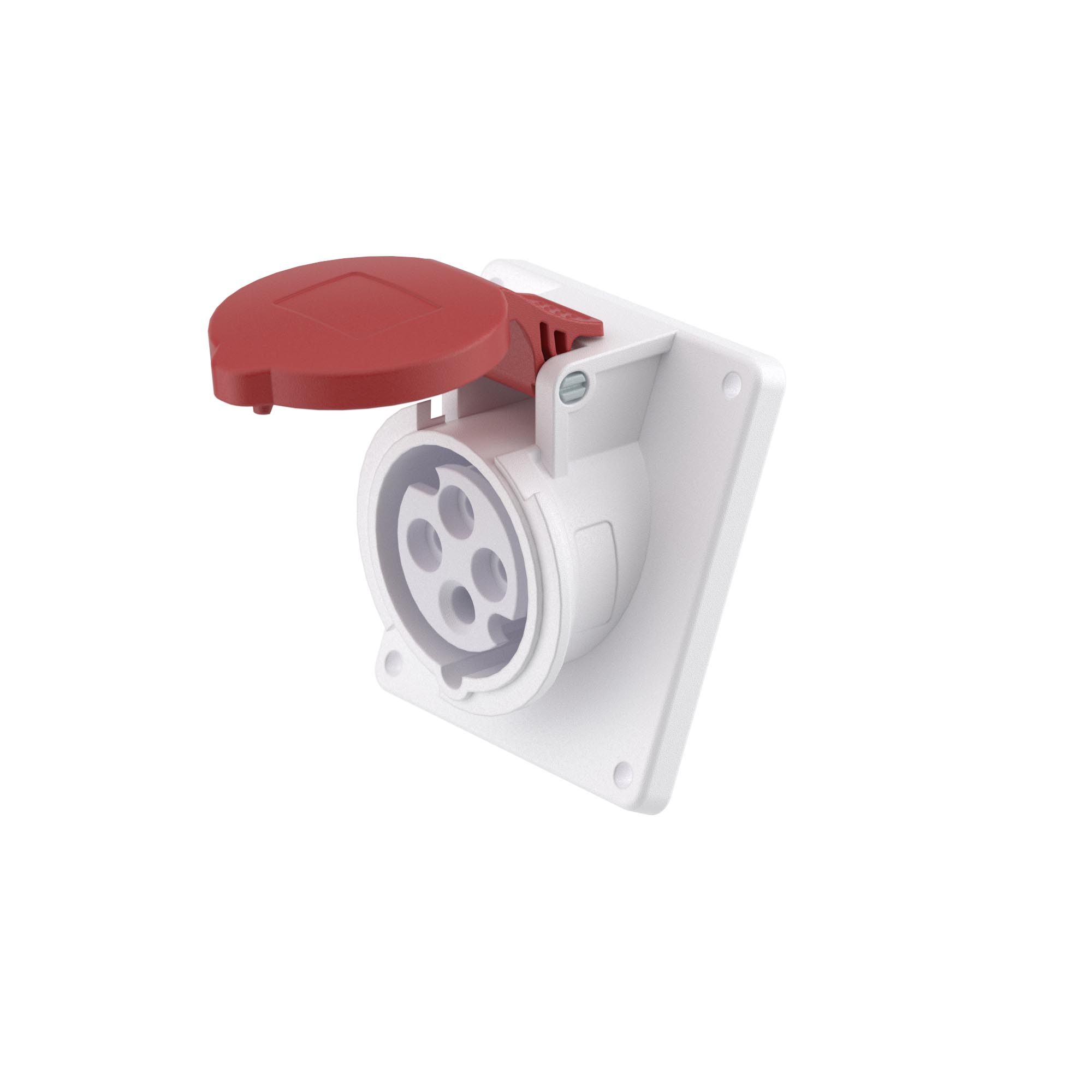

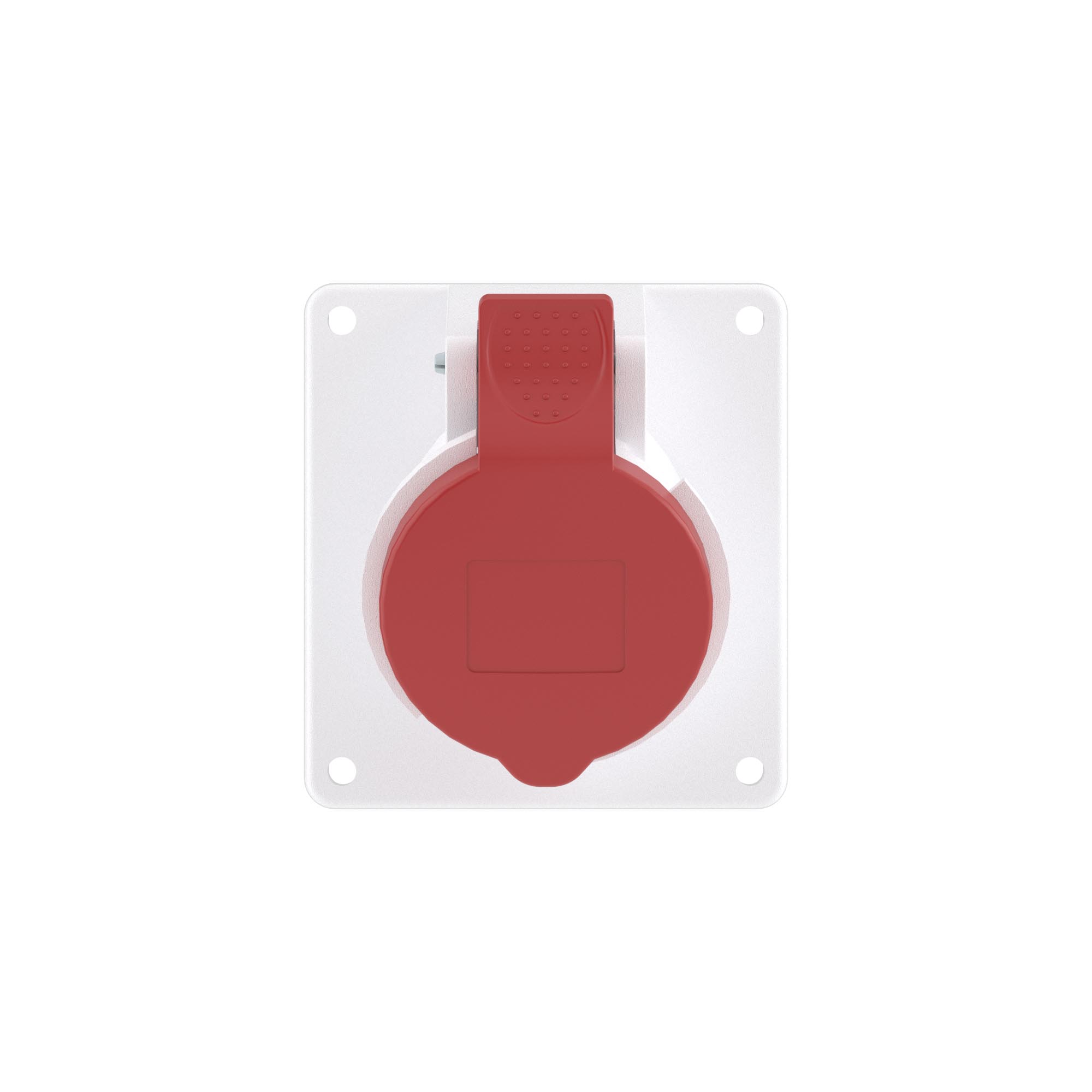

Flush mounting angled socket IP44 32A 3P+E 400V

Code: DIS4133266
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 114
Flange size horizontal, mm 90
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 65
Height of device 153
Depth of device 153
Color gray
Material of case Polyamide
Height, mm 106
Width, mm 90
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP44
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 52

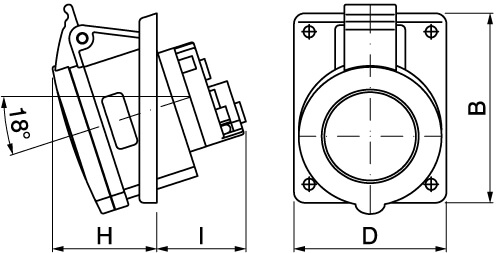

Drawings
