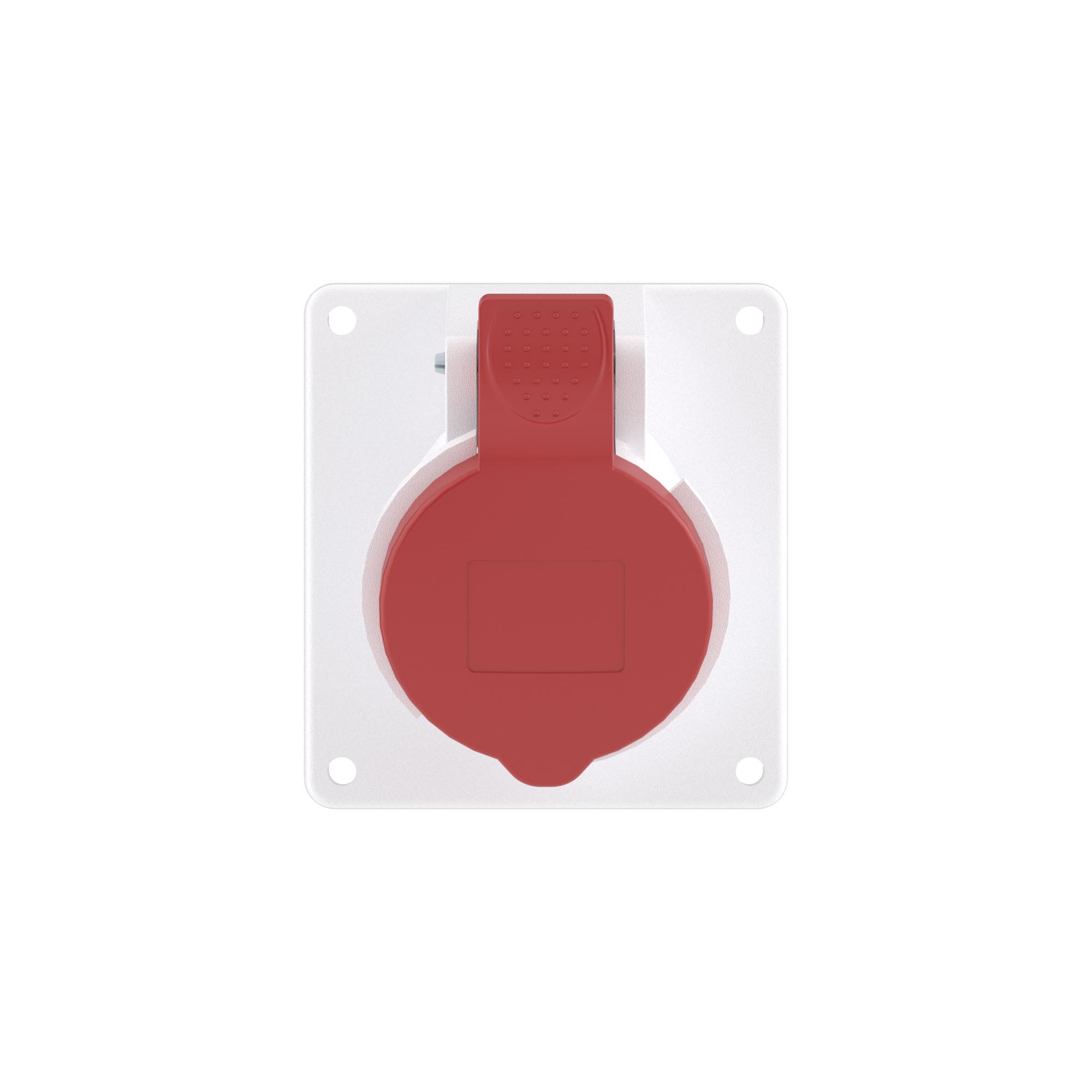

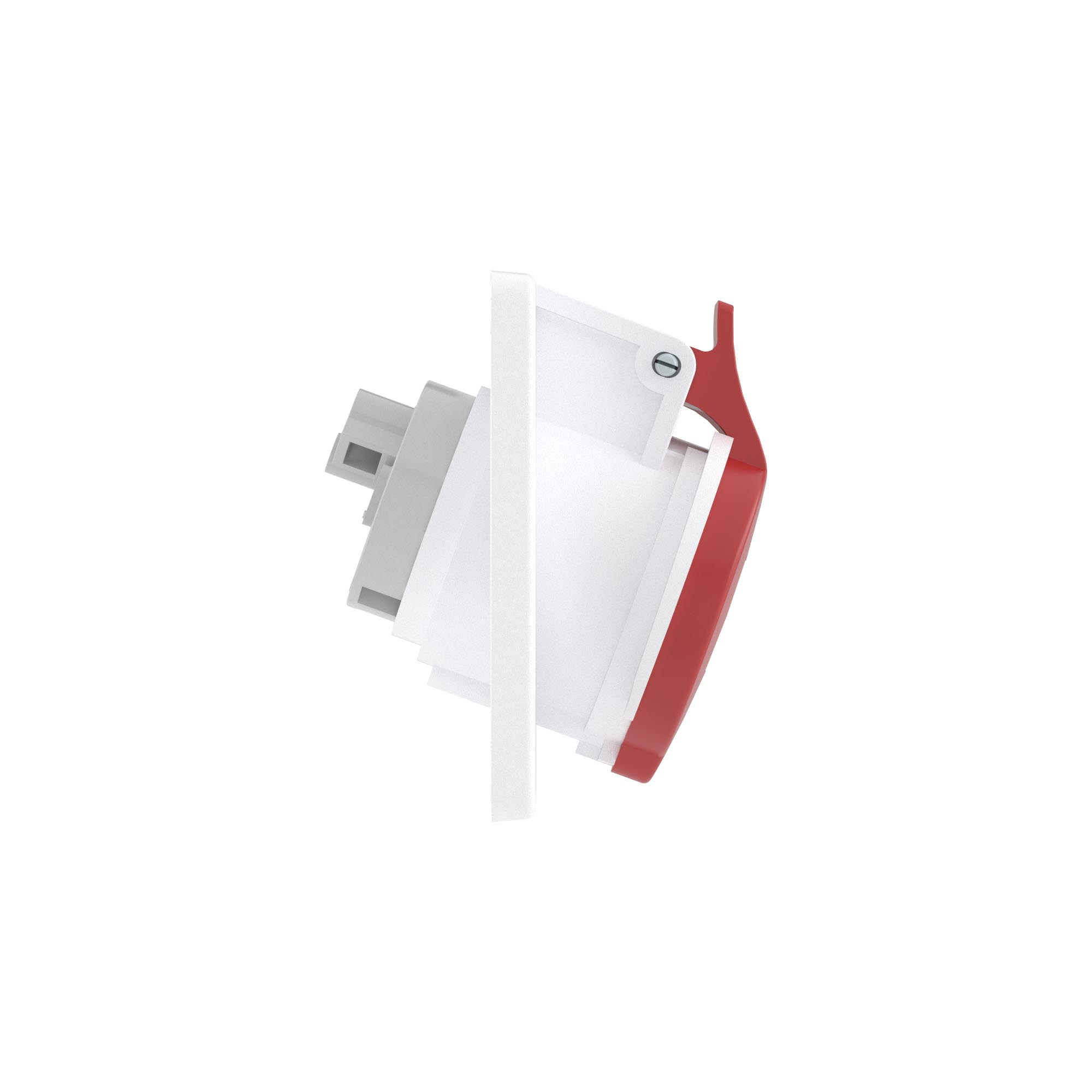

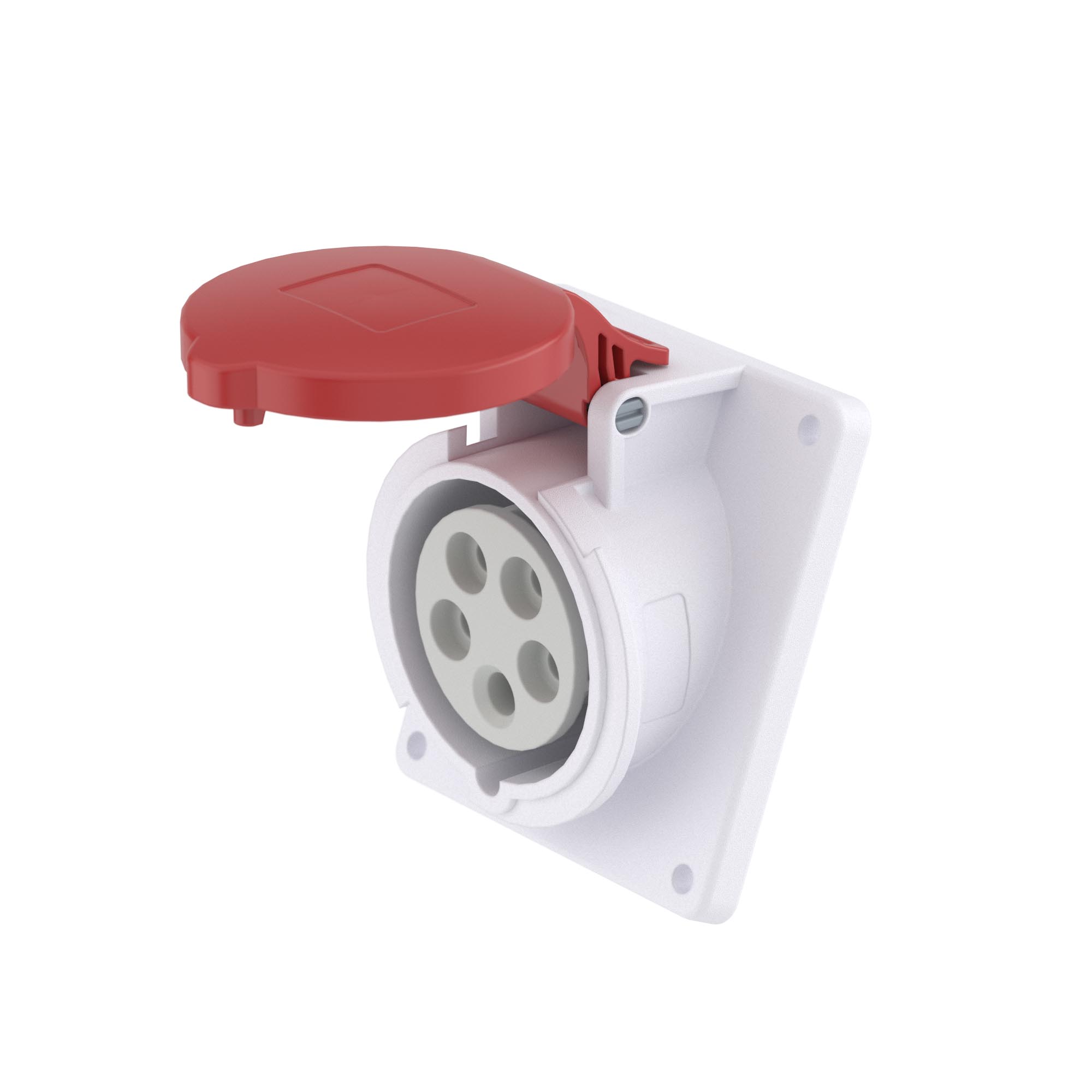

Flush mounting angled socket IP44 16A 3P+E+N 400V

Code: DIS4131667

Flush mounting angled socket IP44 16A 3P+E+N 400V

Code: DIS4131667
Number of poles 5
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 87
Flange size horizontal, mm 70
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 70
Height of device 87
Depth of device 92
Color gray
Material of case Ployamide
Height, mm 87
Width, mm 70
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP44
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 48
Product type Flush-mounting socket
Voltage 400V

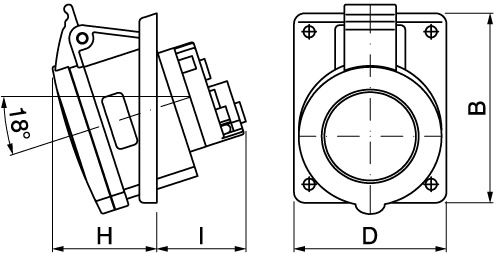

Drawings
