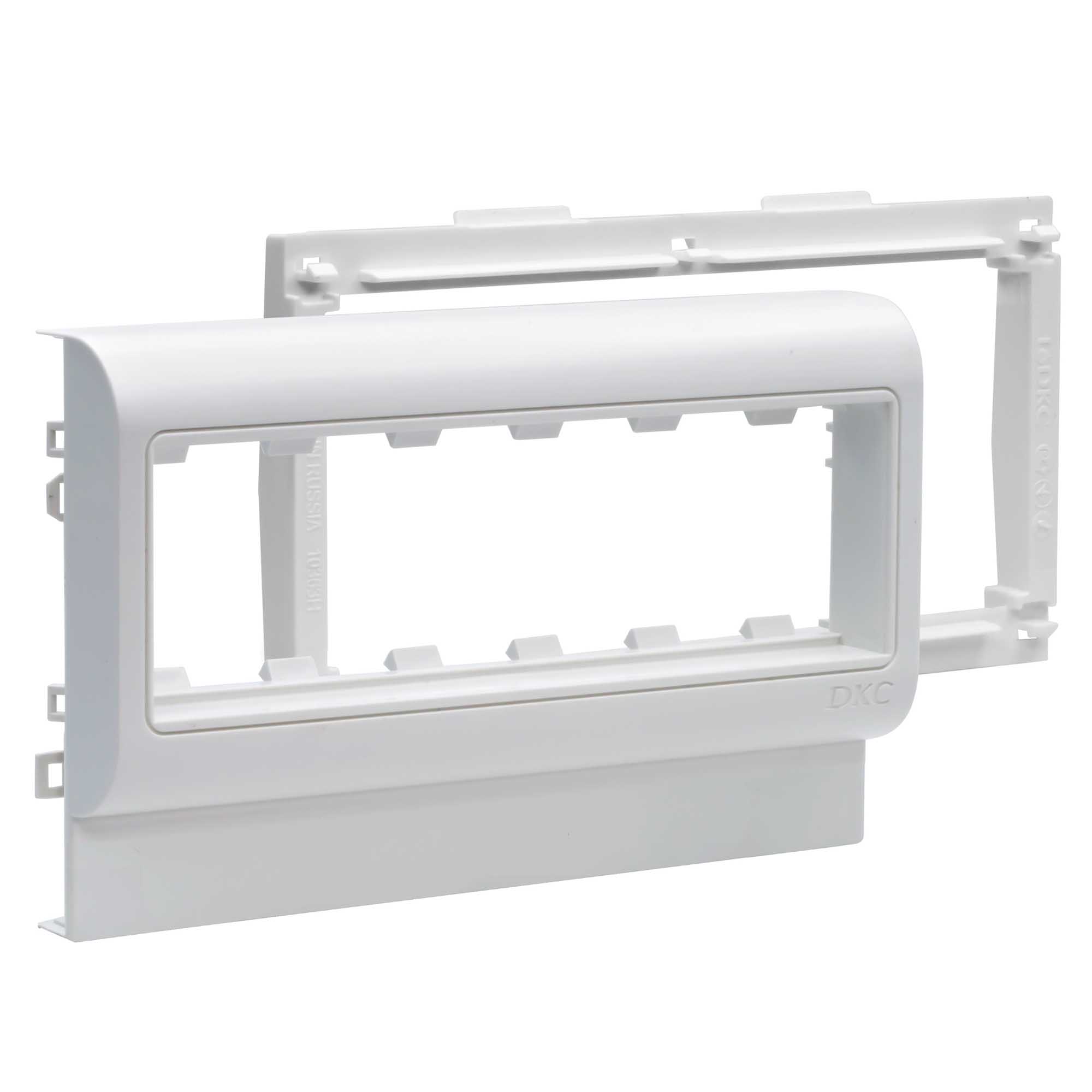

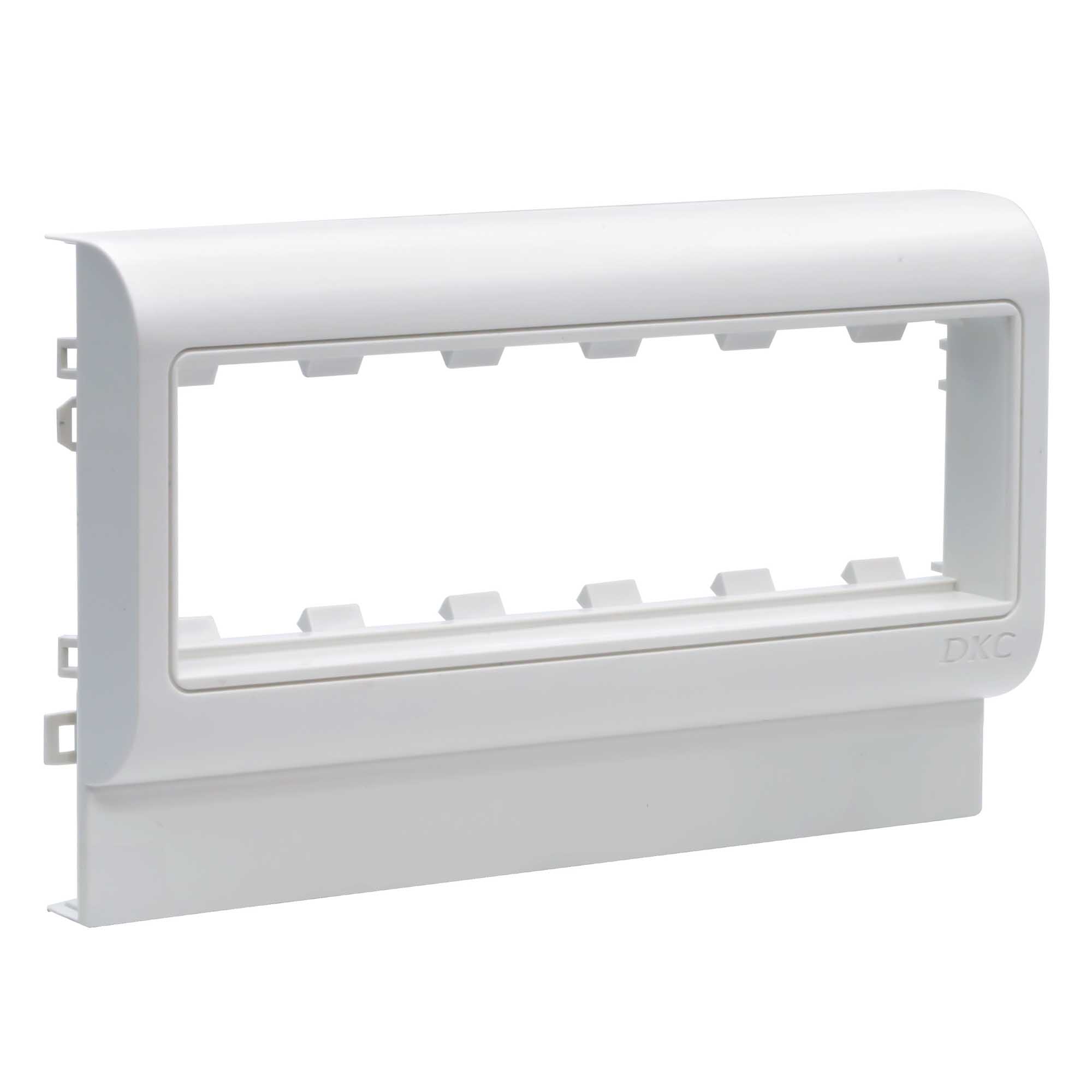

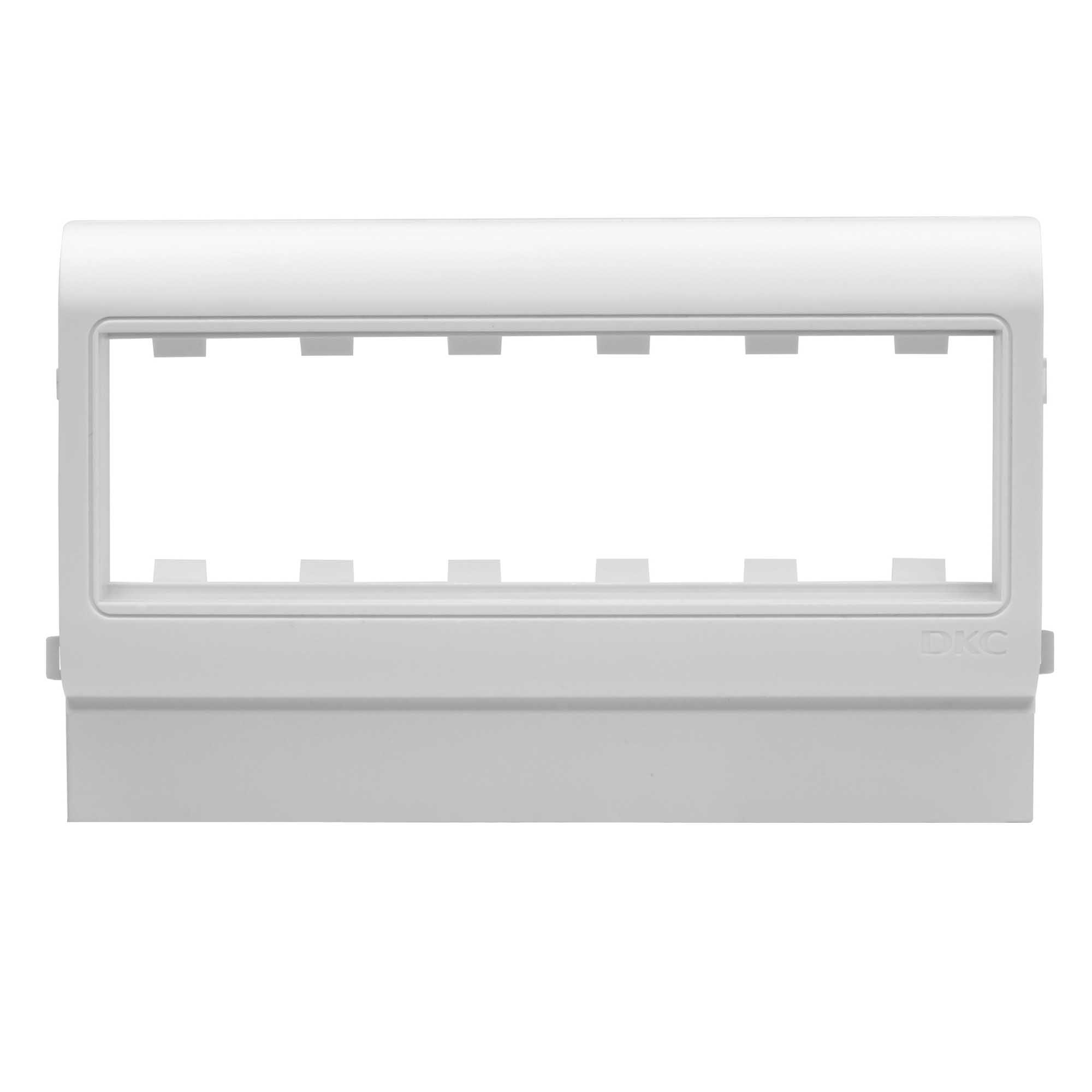

PDA-ЗDN 100 Frame-support 6 mod. ''VIVA''

Colour White
Width, mm 100
Halogen free Yes
Height, mm 100
Depth, mm 26.4
Number of units 6
With hinged lid No
Surface protection Decor
Built-in height, mm 50
Built-in width, mm 135
Label space/information surface No
Material quality Other
Material Plastic
Type of fastening Clamp mounting
Mounting direction Vertical
Degree of protection (IP) IP40
Suitable for floor box No
Transparent No
Type of surface Brilliant
Suitable for wall duct Yes
Suitable for flush-mounted installation No
Flat surface model No
Suitable for built-in installation Yes
Number of units horizontal 1
Number of units vertical 1
Number of modules 6
Decoration Декор по эскизу
Without bridge Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 100
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Type Supporting plate
