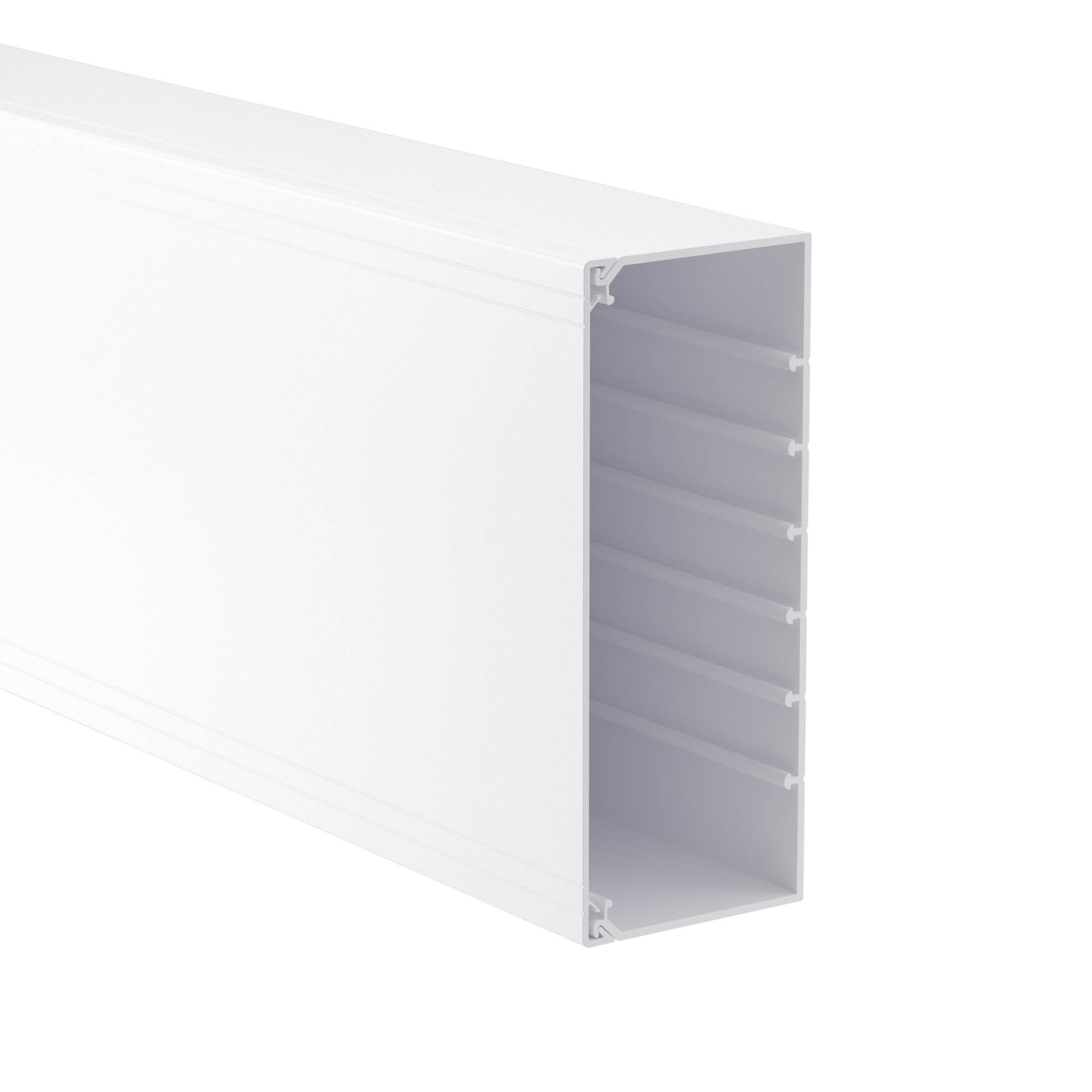

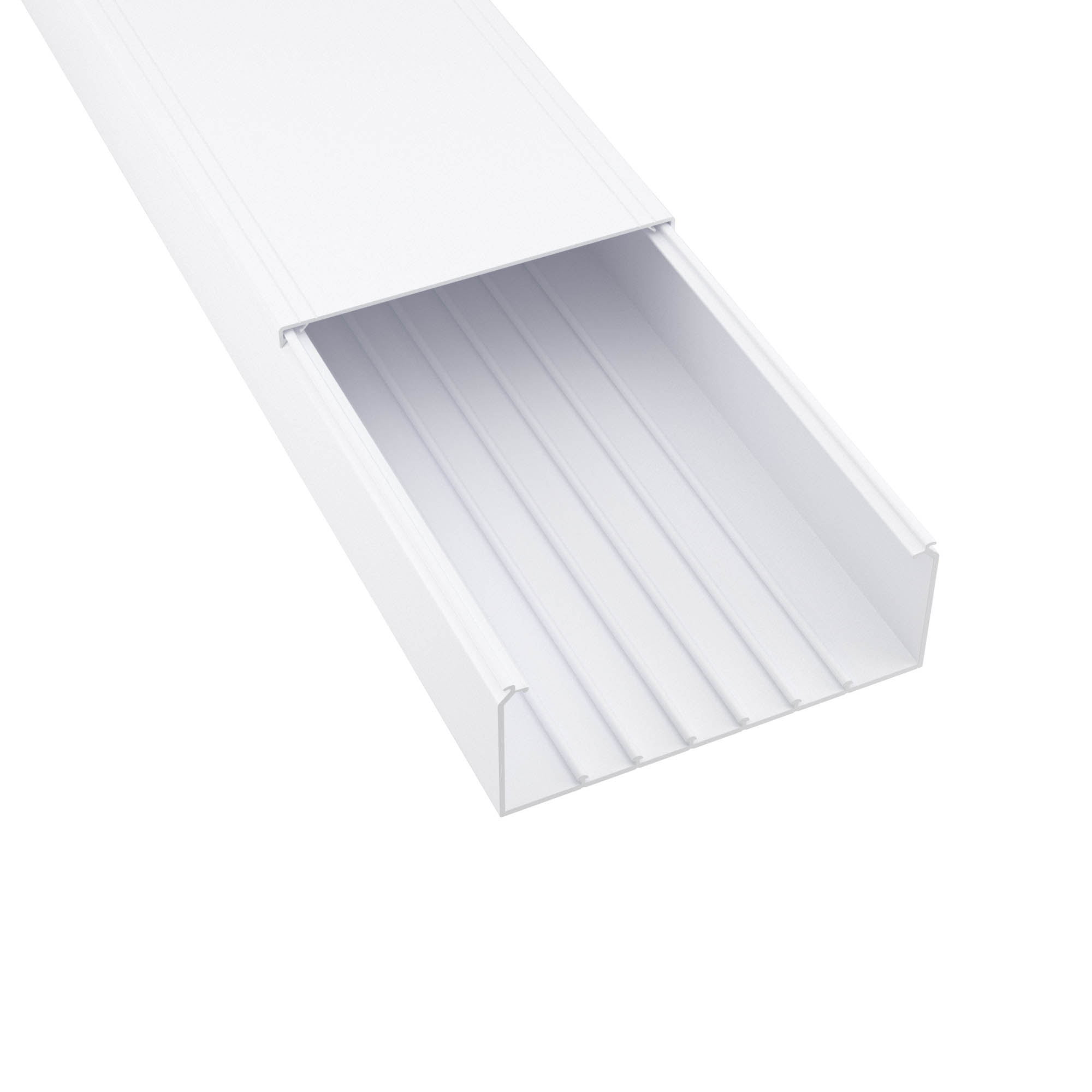

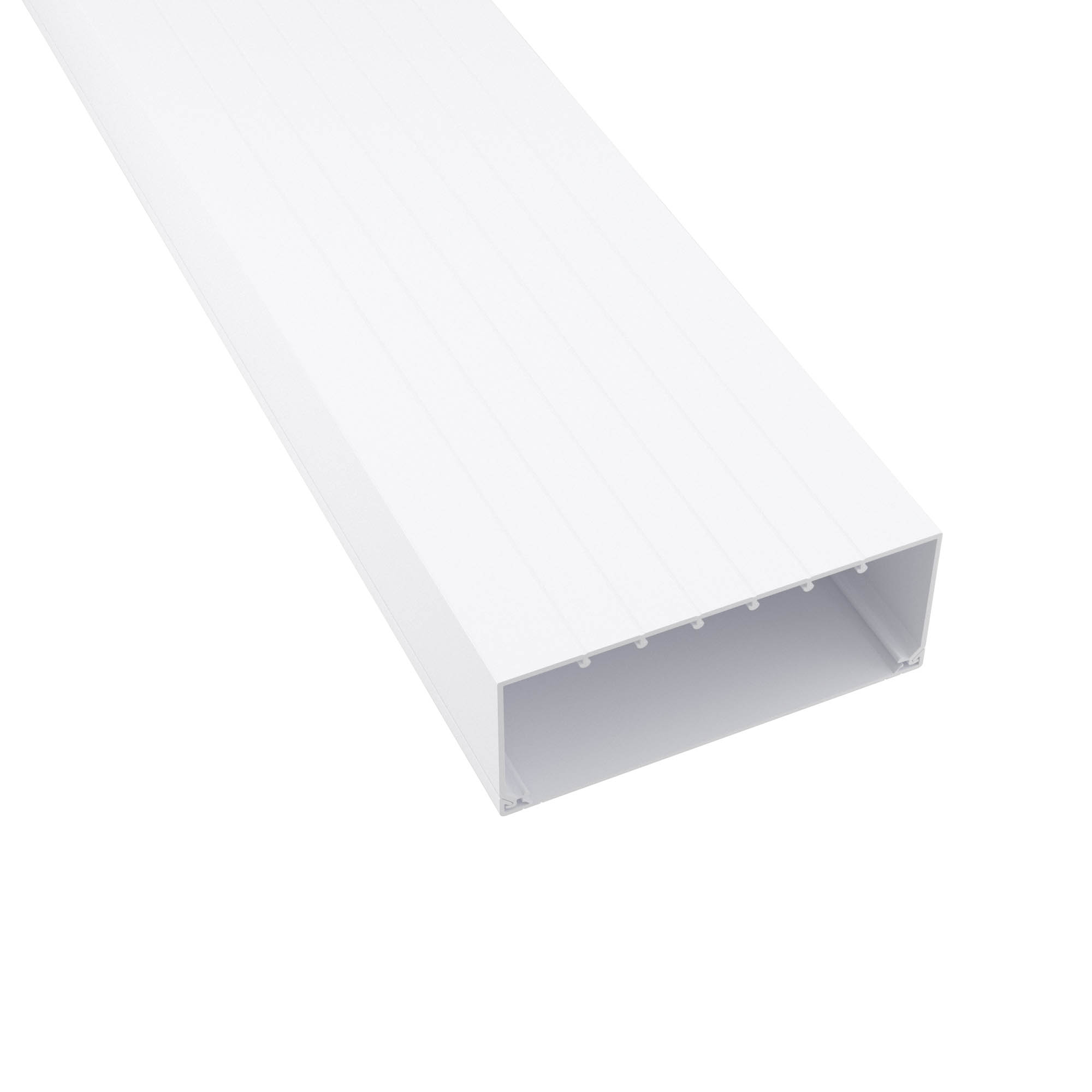

TA-GN 200x80 Cable trunking with cover, white

Code: 01793
TA-GN 200x80 Cable trunking with cover, white
  • To ask a question
Colour Clear white
Width, mm 200
Depth, mm 80
Surface protection Other
Material quality PVC
Length, mm 2000
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 6
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 14430
Cover width 1, mm 200
Protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Color white, RAL 9016
Material PVC
Ingress Protection rating, IP IP40
Shock resistance, J 6
Climate version UHL4
Fire protection It is not spread combustion (corresponds to the requirements of №123-ФЗ 22.07.2008, ГОСТ Р 53313-2009)
Product type Cable duct with a cover
