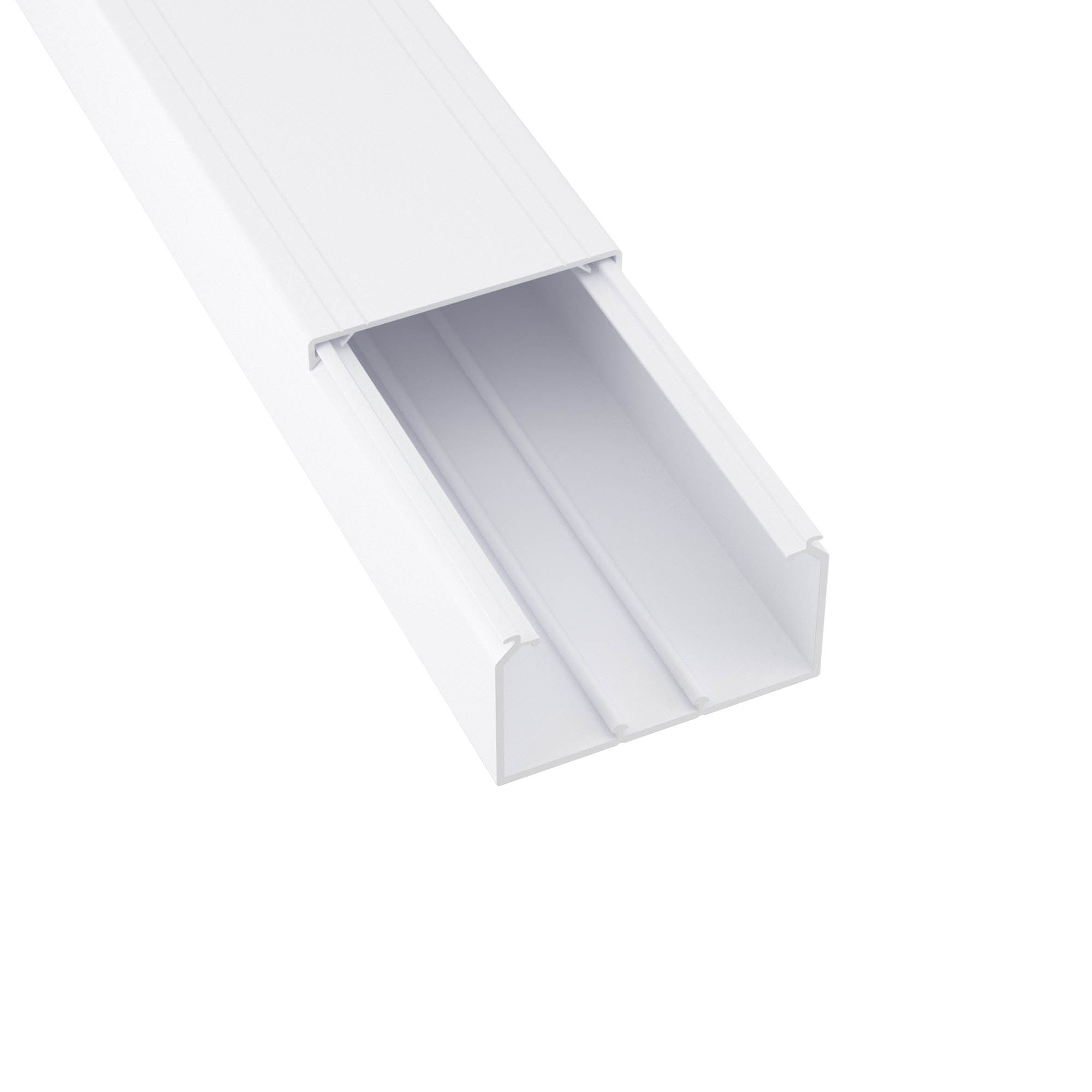

TA-GN 100x60 Cable trunking with cover, white

Code: 01786
TA-GN 100x60 Cable trunking with cover, white
  • To ask a question
Colour Clear white
Width, mm 100
Depth, mm 60
Material quality Plastic
Length, mm 2000
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 2
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 5063
Cover width 1, mm 100
Protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 100
Ingress Protection rating, IP IP40
Average filled area, sq.mm 5063
Summarized profile area (max), sq.mm 5063
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 60
Self-glueing base false
Product type Cable duct with a cover
