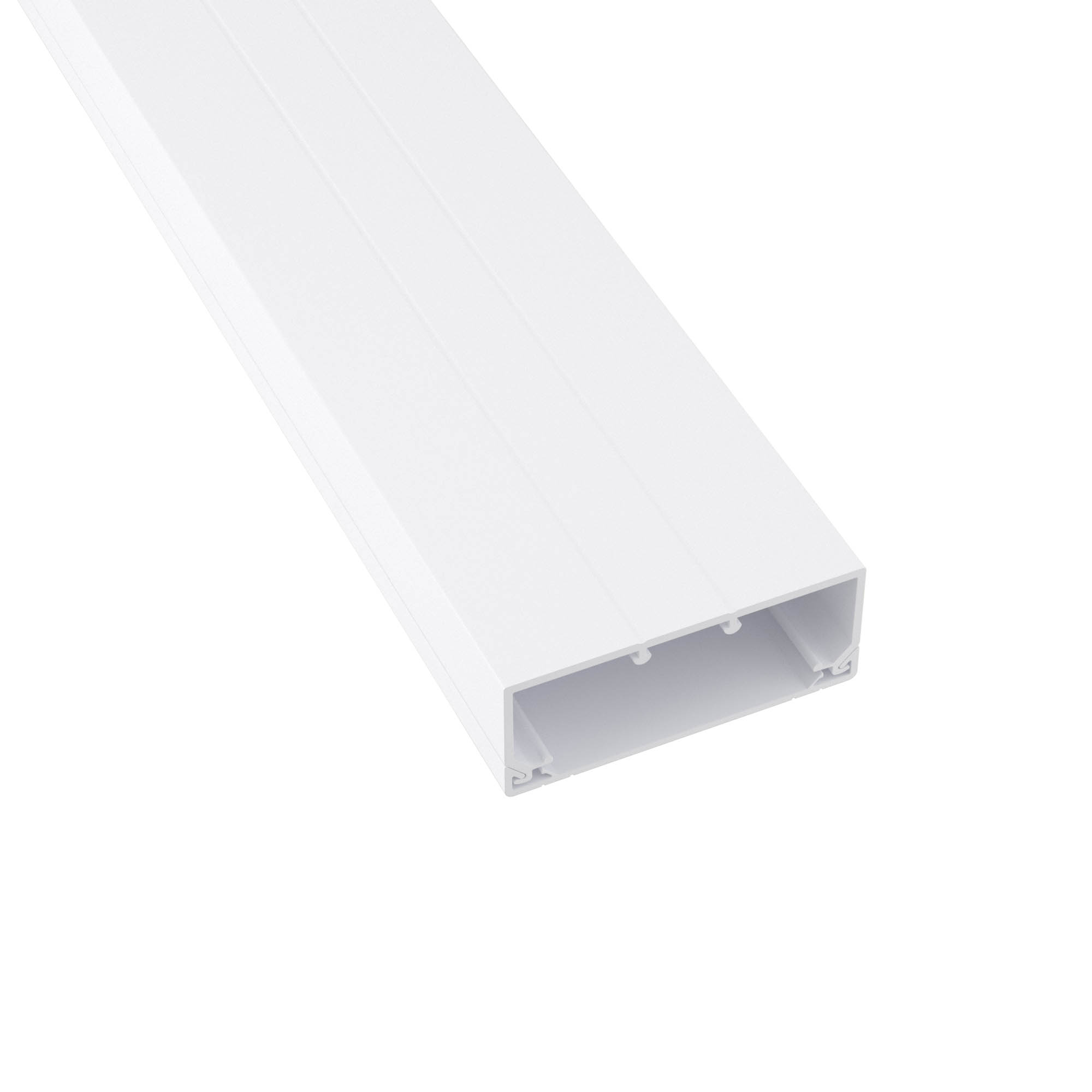

TA-GN 100x40 Cable trunking with cover, white

Code: 01782
TA-GN 100x40 Cable trunking with cover, white
  • To ask a question
Colour Clear white
Width, mm 100
Model Plain
RAL-number 9016
Surface protection Other
Material quality Other
Material Plastic
Mounting method covers Inner lying
Protection film No
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 100
Ingress Protection rating, IP IP40
Average filled area, sq.mm 3164
Summarized profile area (max), sq.mm 3164
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 40
Self-glueing base false
Product type Cable duct with a cover
