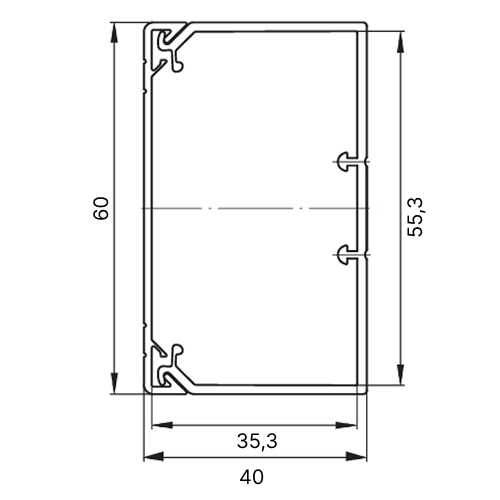

TA-GN 60x40 Cable trunking with cover, white

Code: 01780
TA-GN 60x40 Cable trunking with cover, white
  • To ask a question
Colour Clear white
Width, mm 60
Height, mm 40
RAL-number 9016
Surface protection Other
Cover model Loose
Material quality PVC
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
Number of plug-in partitions 1
With cable fixing clip No
With duct connector No
Useful cross section, mm² 1767
Protection film Yes
Delivery on roll No
Transparent No
Suitable for circuit integrity No
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 60
Ingress Protection rating, IP IP40
Average filled area, sq.mm 1767
Summarized profile area (max), sq.mm 1767
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 40
Self-glueing base false
Product type Cable duct with a cover
