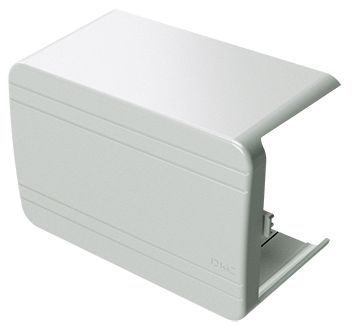

NTAN 200x60 T-form angle (branch), white

Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 200
Ingress Protection rating, IP IP40
Temperature of usage, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 60
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Colour Clear white
Width, mm 200
Model Base unit and cover
Halogen free Yes
Depth, mm 60
RAL-number 9016
Surface protection Other
Width branch, mm 200
Material quality Other
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Protection film No
Symmetric Yes
