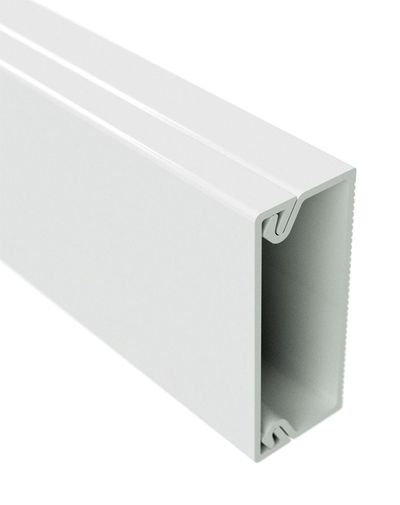

TMC 30x10 Cable trunking with cover, white

Code: 00311

TMC 30x10 Cable trunking with cover, white

Code: 00311
Colour Pure white
Width, mm 30
Height, mm 10
RAL-number 9016
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 217
With protection film Yes
Delivery on roll Yes
Transparent Yes
Suitable for circuit integrity Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 30
Ingress Protection rating, IP IP40
Average filled area, sq.mm 217
Summarized profile area (max), sq.mm 217
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 2
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 10
Product type Miniduct
