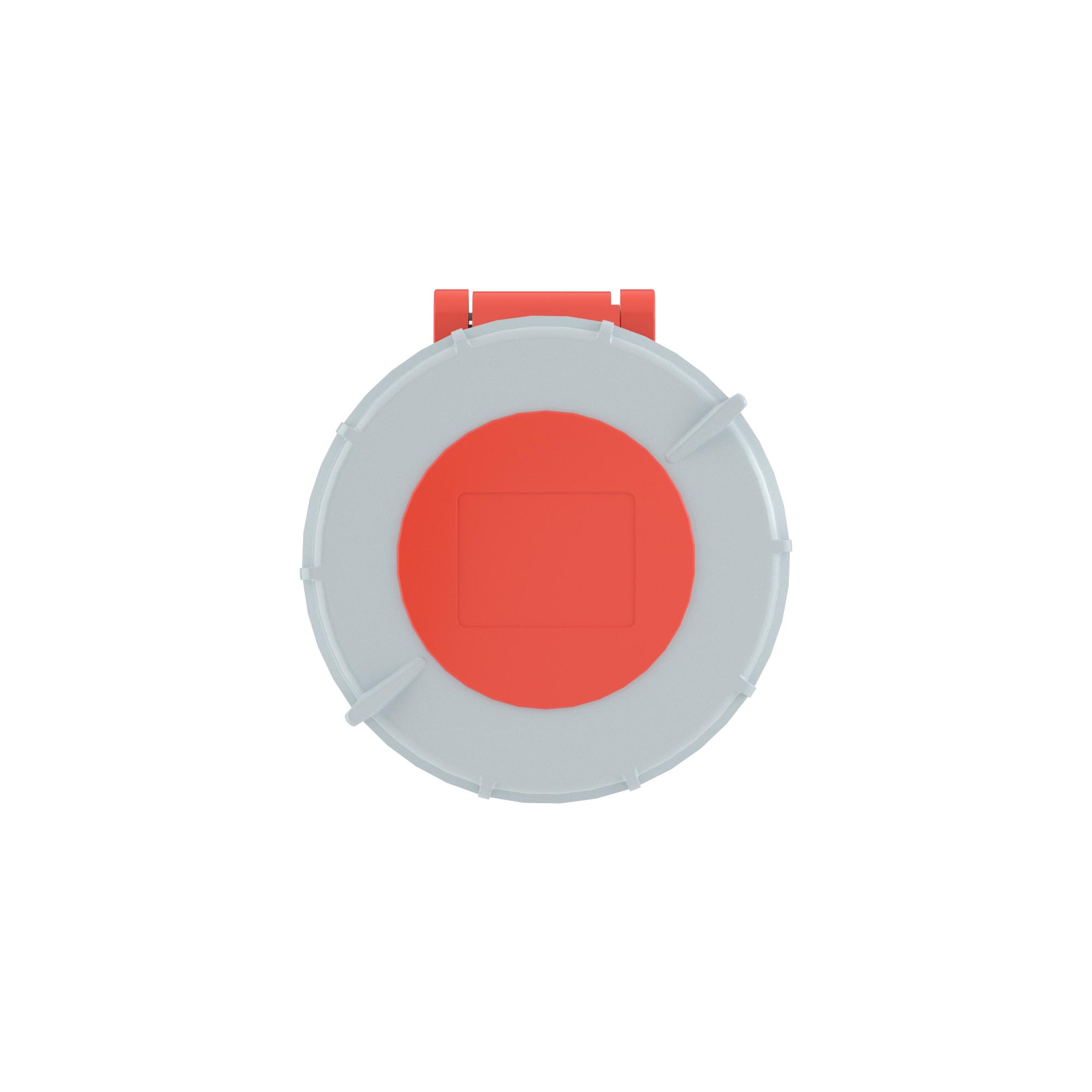

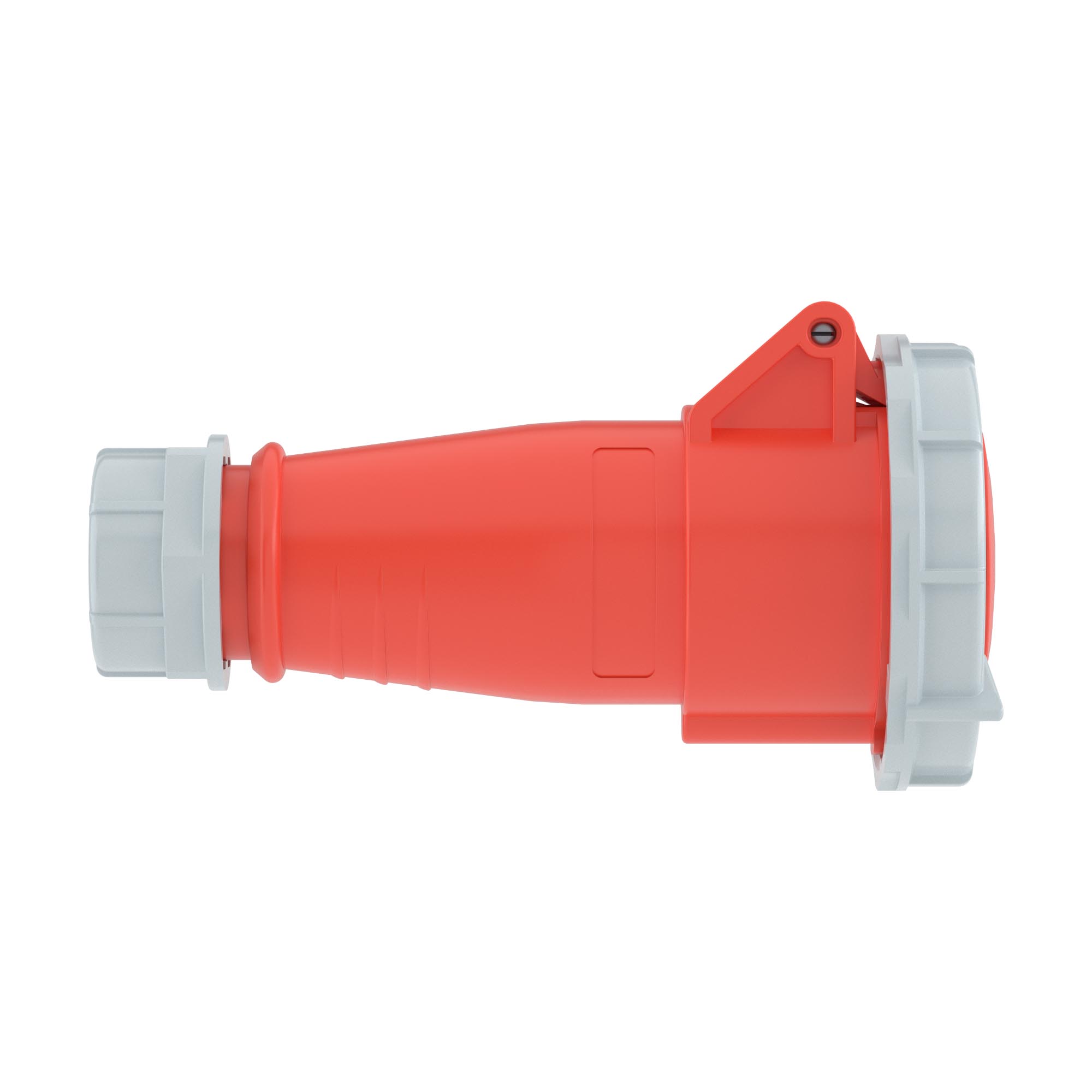

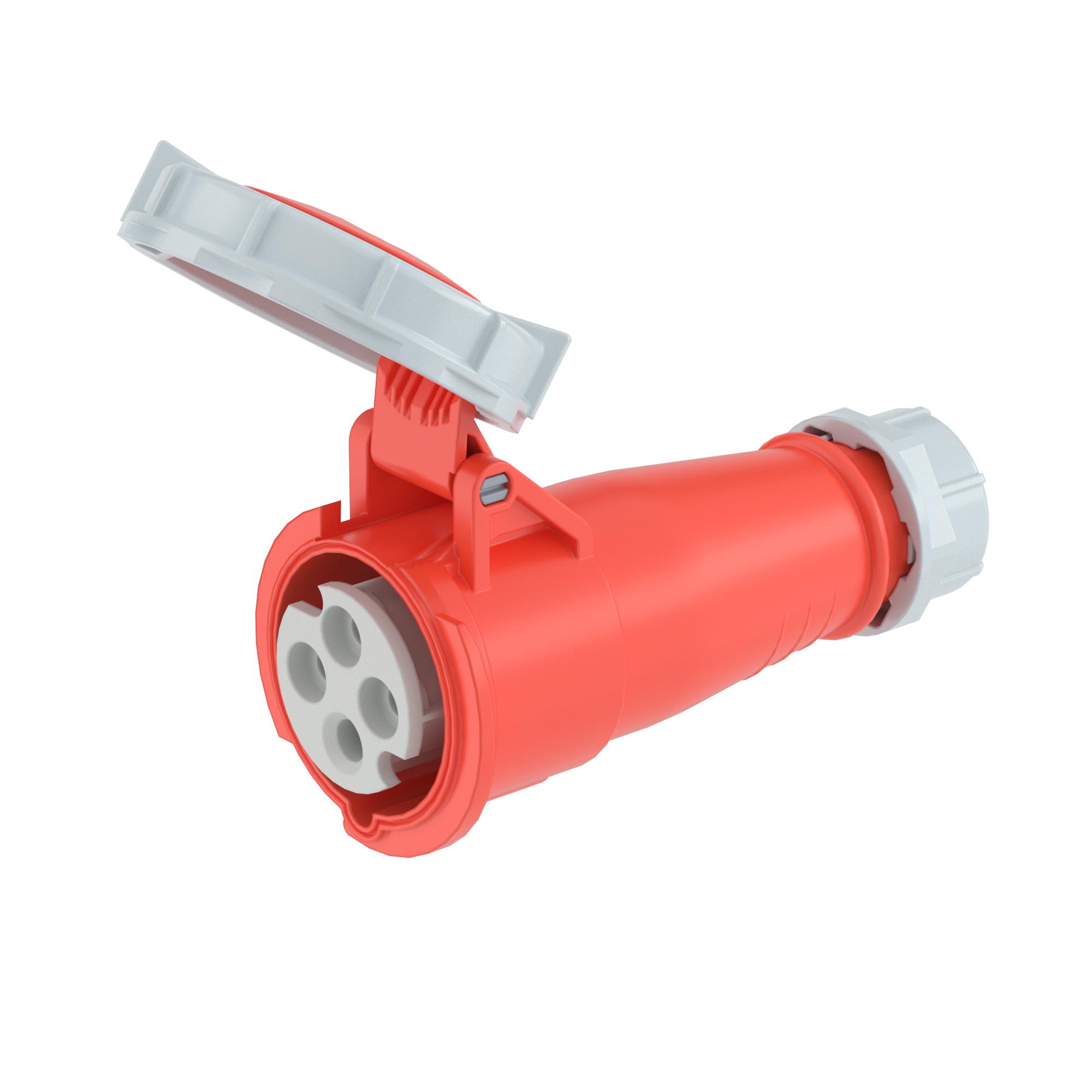

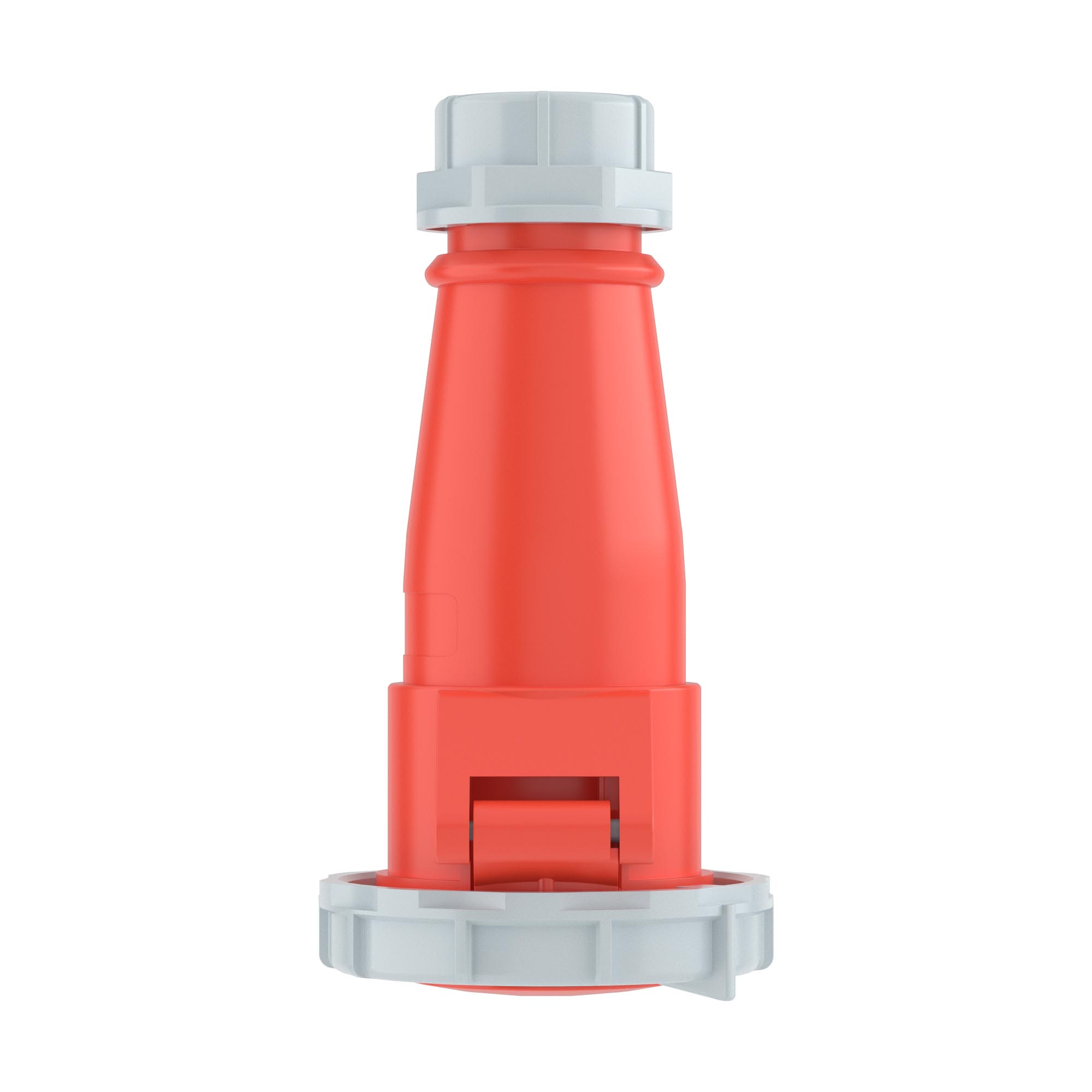

Cable socket CS IP67 32A 3P+E 400V
Code: DIS3183246
Cable socket CS IP67 32A 3P+E 400V
Code: DIS3183246
Model | Surface mounted (plaster) |
Number of poles | 4 |
Material | Plastic |
IEC-amperage, A | 32 |
Degree of protection (IP) | IP67 |
Identification colour | Red |
Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Connection system | Screwed terminal |
Cable entry | Swivel |
Clock hour position, h | 6 |
GWFI | +960°С |
Q'ty of poles | 3P+E |
Temperature of operation | +40°С |
Material of case | polyamide |
Voltage | 400V |
Clock position | 6h |
Degree of protection | IP67 |
-5°С ... +60°С | -25°С...+40°С |
Temperature of dinamic operation | -25°С...+40°С |
Temperature of static operation | -40°С...+40°С |
Product type | Cable socket |
Current | 32А |
Color | Red |

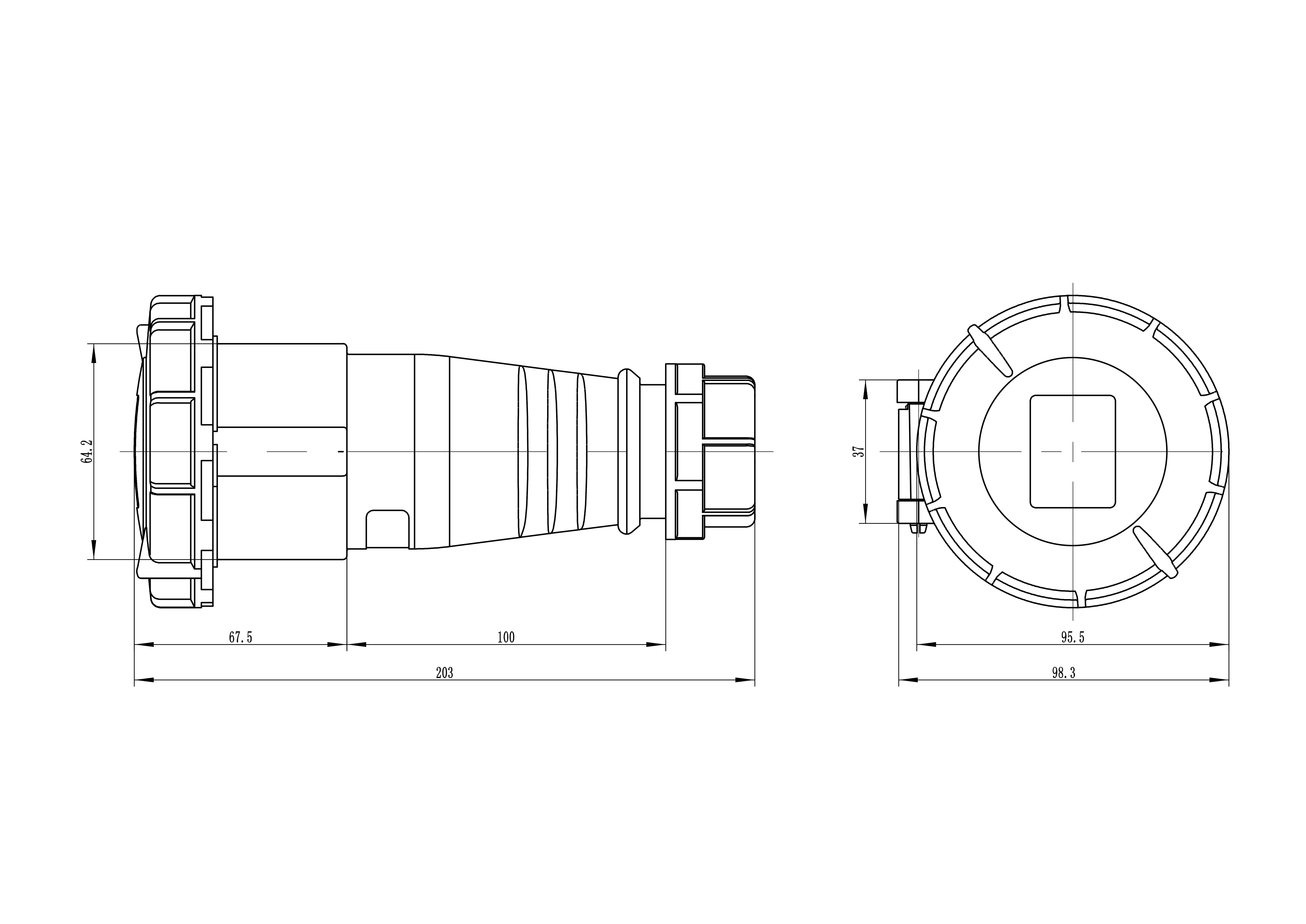

Drawings
Seria | Name | DWG | Eplan |
---|---|---|---|
