Temperature of operation, °C 60
Shock resistance, J 5
Radius of bending (min) , mm 5
Model Surface mounted (plaster)
Number of poles 4
Material Plastic
Type of fastening External mounting
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model No
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 114
Flange size horizontal 90
Width of device 65
Height of device 176
Depth of device 176

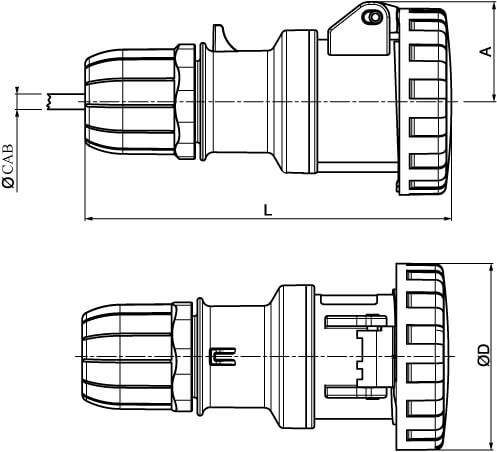

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
Quadro - industrial plugs
