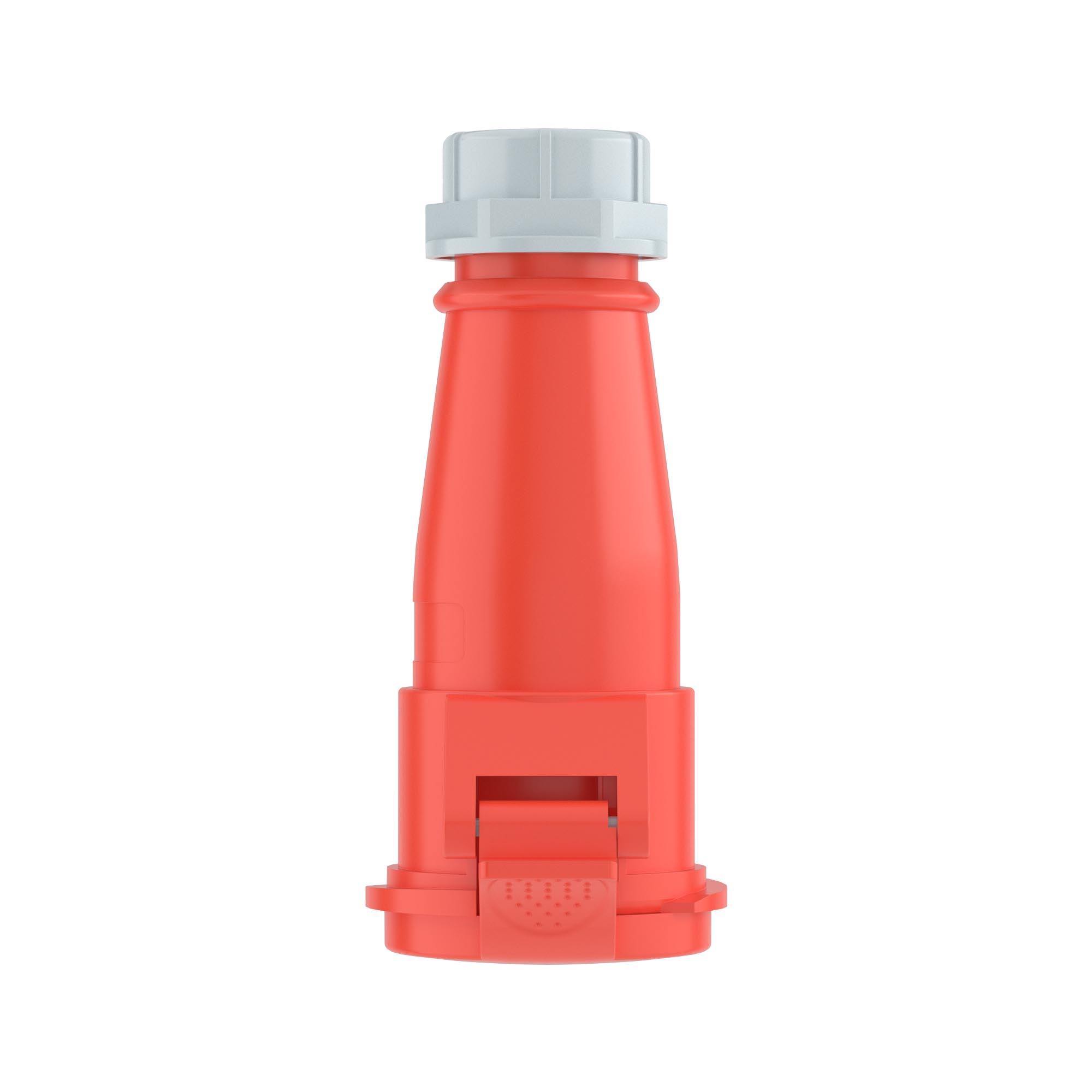

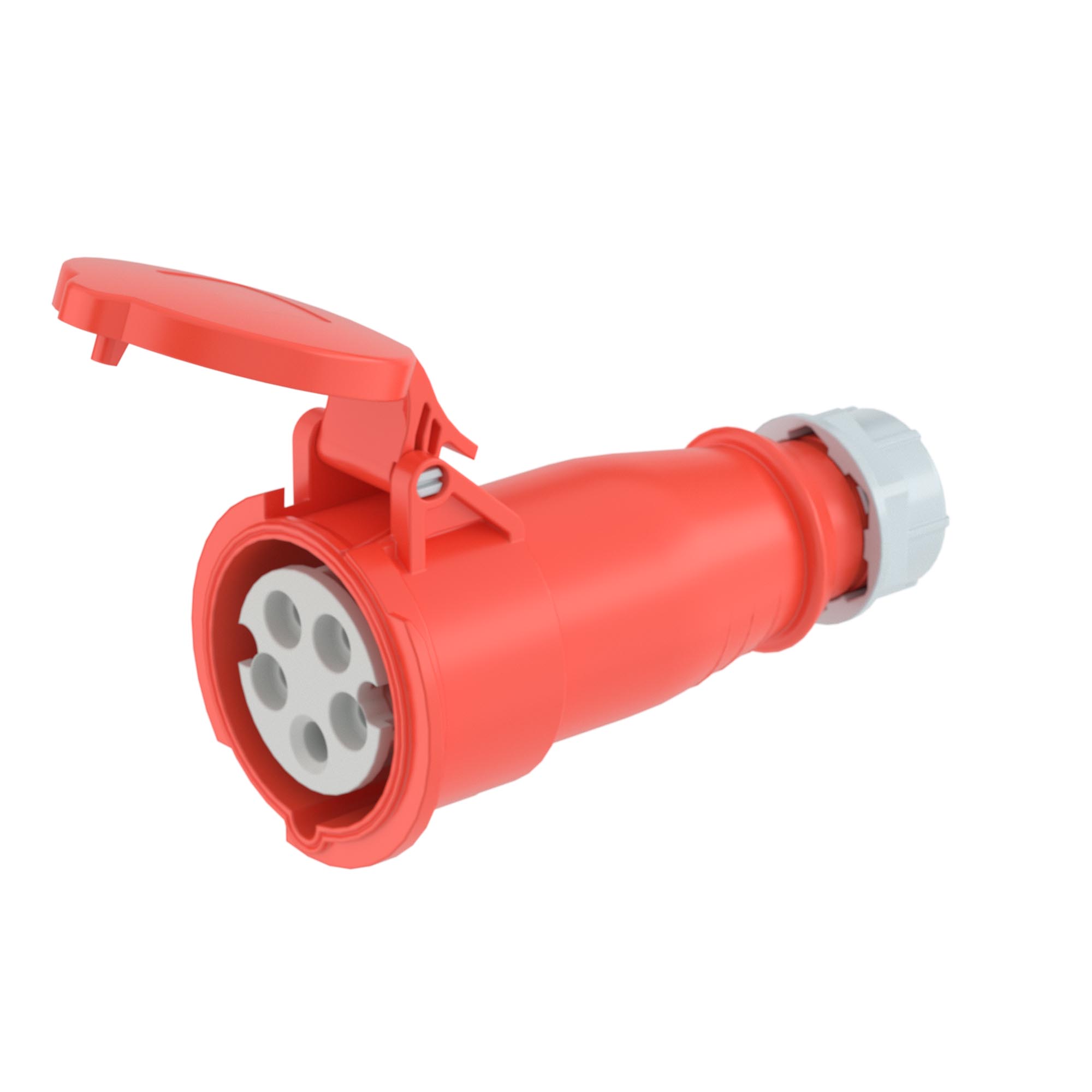

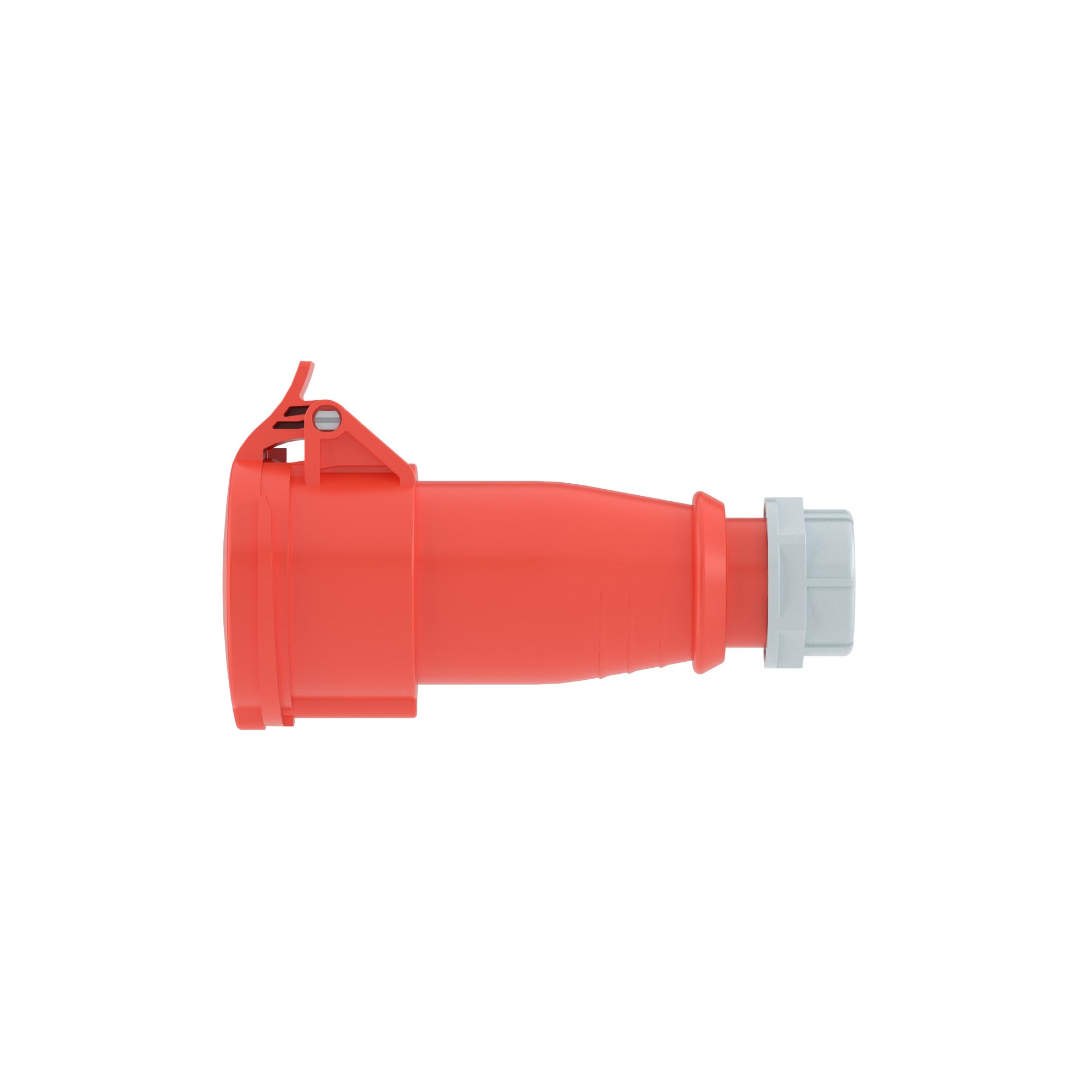

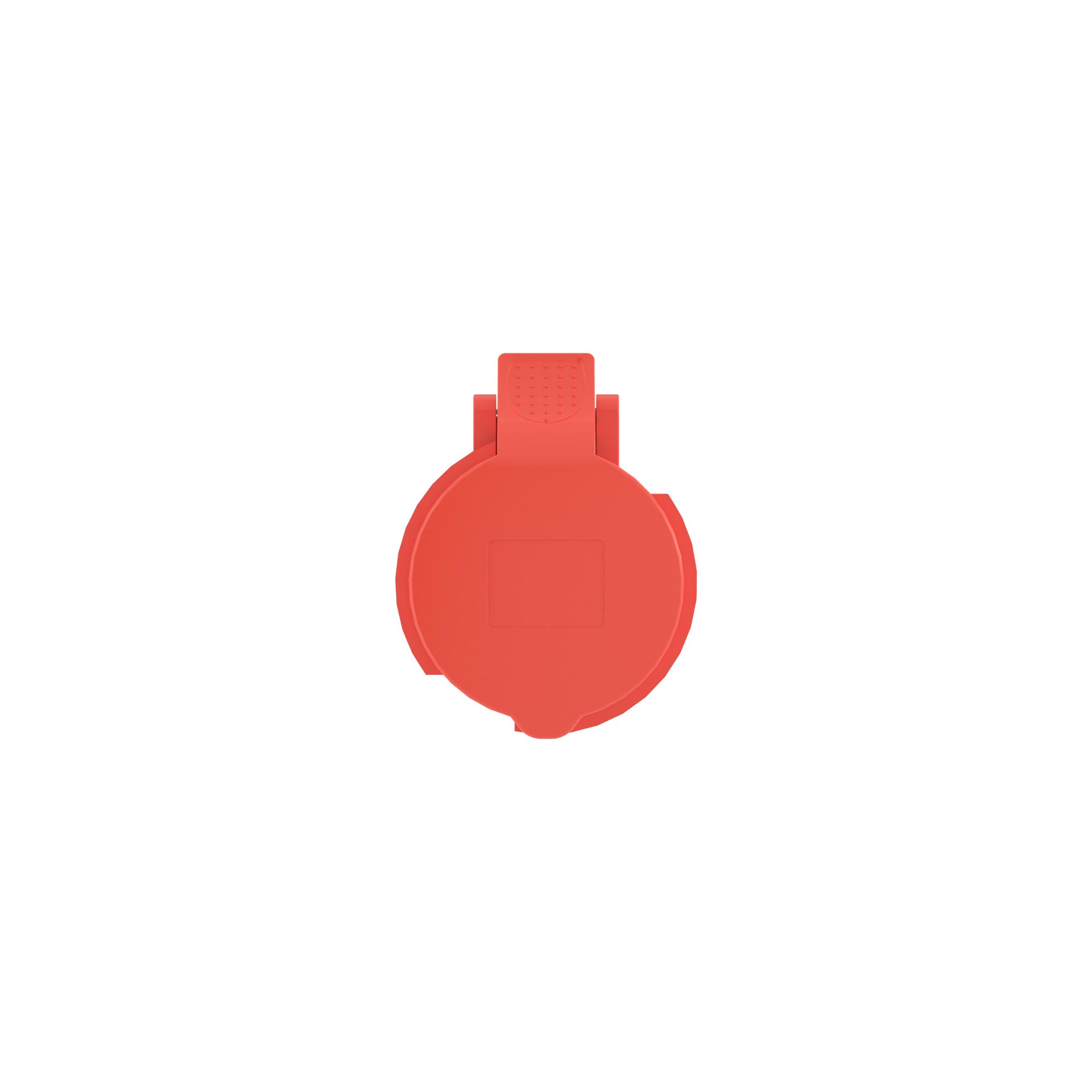

Cable socket IP44 32A 3P+E+N 400V

Code: DIS3133247
Cable socket IP44 32A 3P+E+N 400V
  • To ask a question
Model Surface mounted (plaster)
Number of poles 5
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 91
Height of device 101
Depth of device 196
Temperature of operation, °C 60
Shock resistance, J 5
Radius of bending (min) , mm 5
Product type Cable socket
Voltage 400V

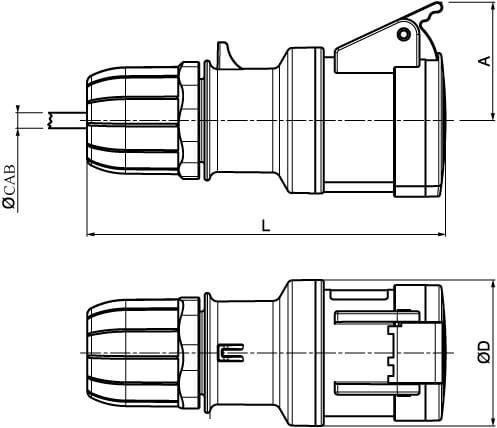

Drawings
