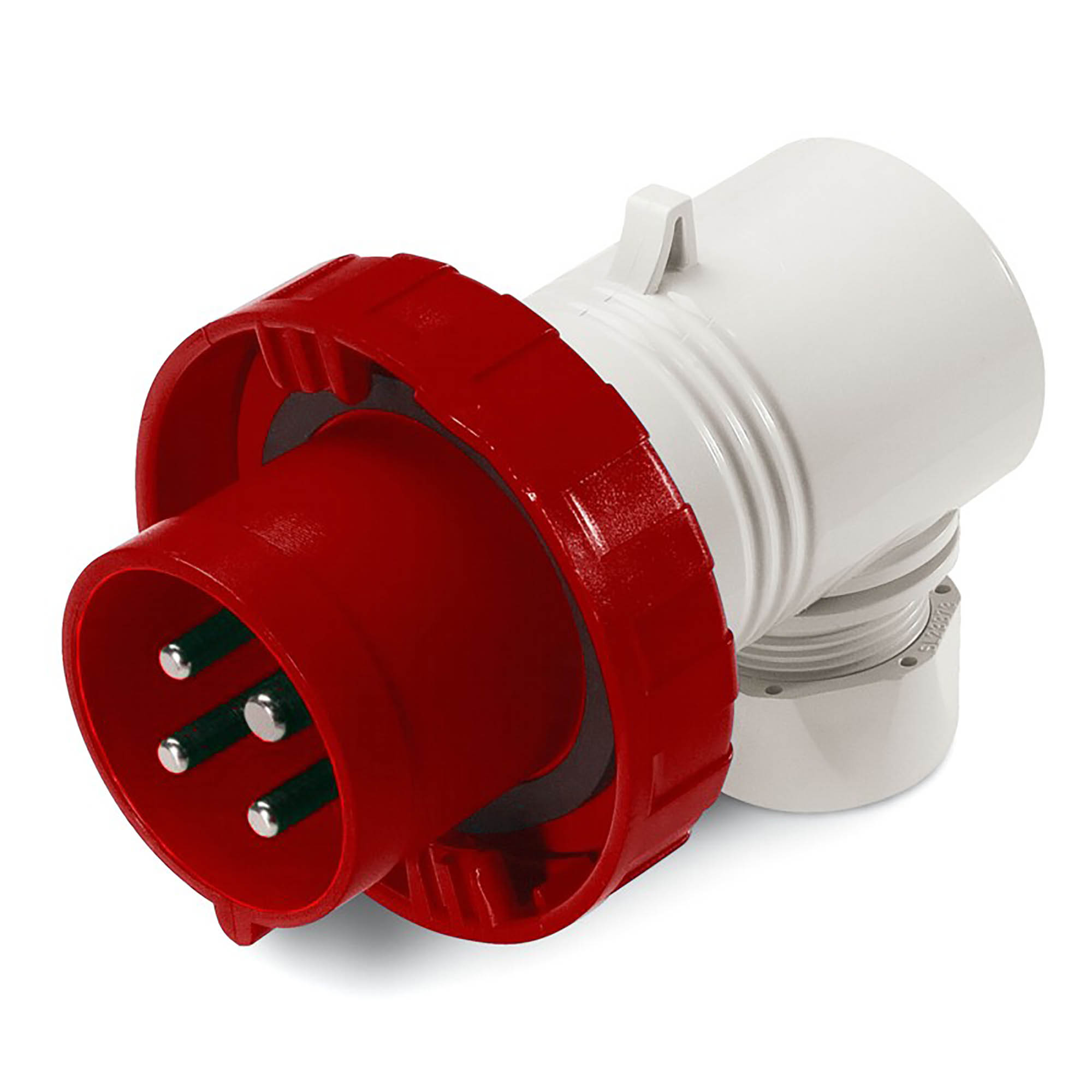

Angled plug IP67 16A 3P+E 400V

Code: DIS2261636
Angled plug IP67 16A 3P+E 400V
  • To ask a question
Width 80
Height 87
Depth 113
Lockable No
With hinged lid No
With socket outlet No
Number of phases 3
With child-protection No
Frequency 50
Cable entry Swivel
Extension possible No
With transparent cover No
Fault current protection No
Number of poles 4
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 16
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Width of device 80
Height of device 87
Depth of device 113
Angle of plug Right-angled
Connection system Screwed terminal
Color gray
Material of case Ployamide
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Product type Cable plug
Voltage 400V
