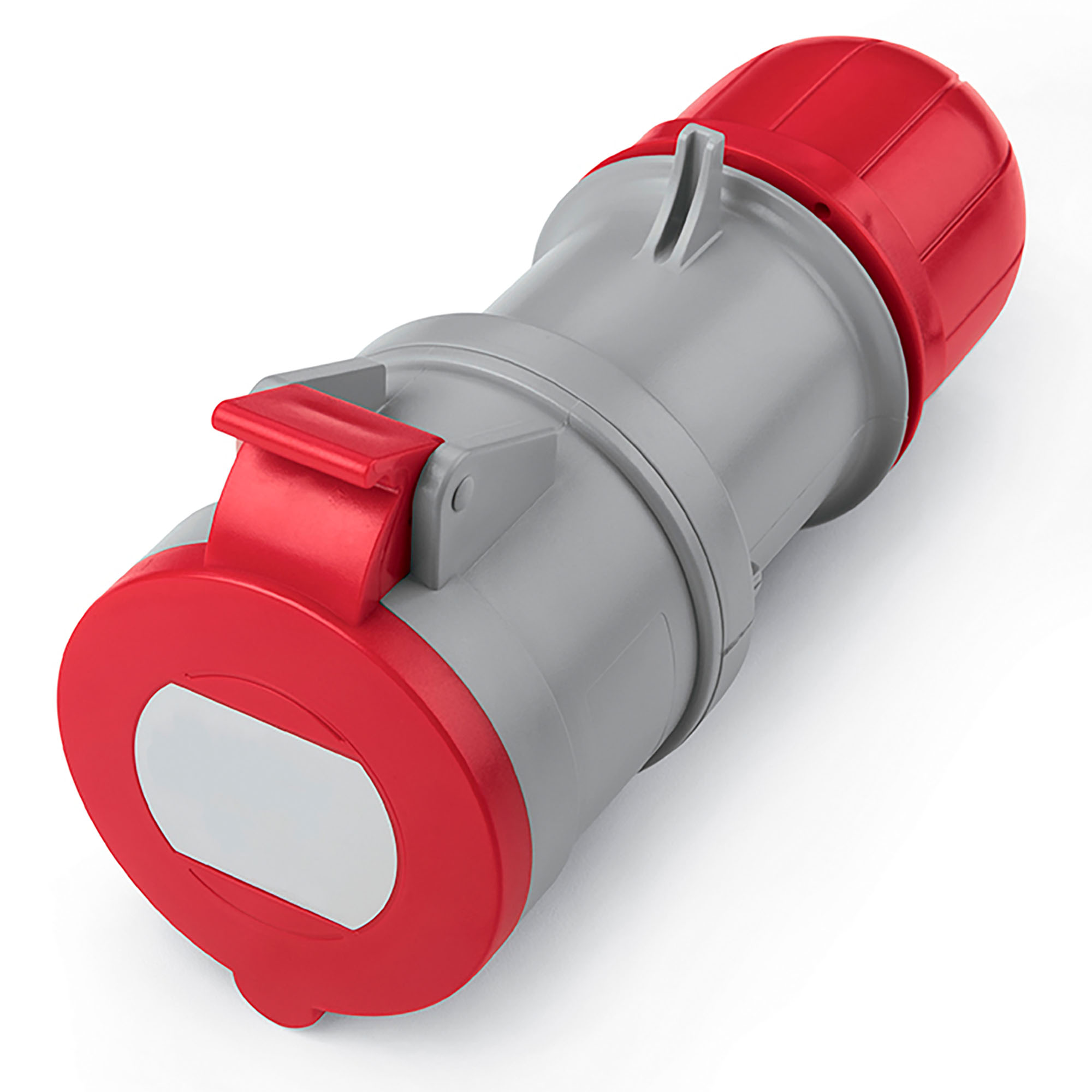

Cable socket screwless IP44 32A 3P+E 400V

Code: DIS3133246F
Cable socket screwless IP44 32A 3P+E 400V
Cable socket screwless IP44 32A 3P+E 400V
Code: DIS3133246F
Removed from the product range . Proposed replacement: DIS3133246
  • To ask a question
  • Characteristics

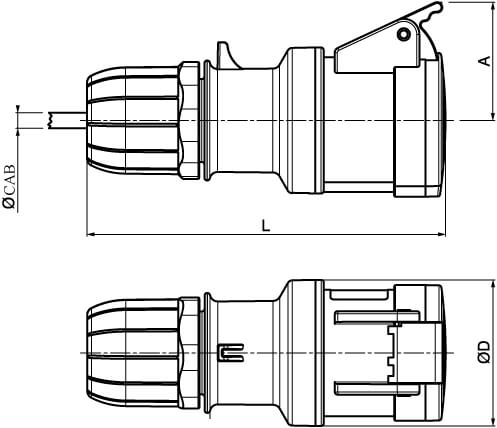

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Cable entry Swivel
Clock hour position, h 6
Number of poles 4
Material Plastic
IEC-amperage, A 32
Connection system Screwed terminal
Angle of plug Straight
Degree of protection (IP) IP44
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Temperature of operation, °C 60
Shock resistance, J 5
Radius of bending (min) , mm 5
Product type Cable socket
Voltage 400V
