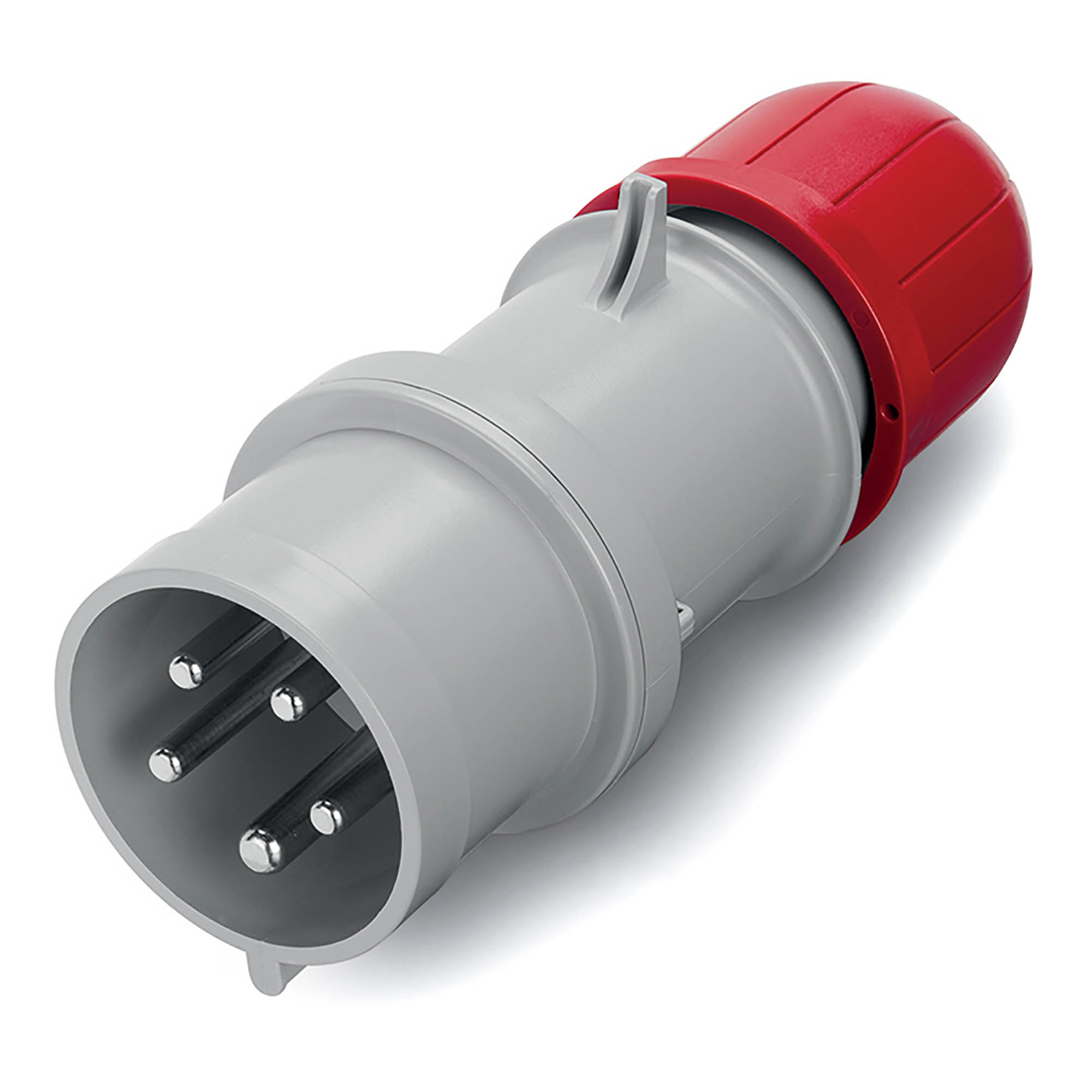

Cable plug screwless IP44 32A 3P+E+N 400V

Code: DIS2133237F
Cable plug screwless IP44 32A 3P+E+N 400V
  • To ask a question
Width 73
Height 73
Depth 179
Lockable No
With hinged lid No
With socket outlet No
Number of phases 3
With child-protection No
Frequency 50
Cable entry Swivel
Extension possible No
With transparent cover No
Fault current protection No
Number of poles 5
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 32
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP44
Total number of groups 1
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Width of device 73
Height of device 73
Depth of device 179
Angle of plug Straight
Connection system Screw less terminal
Temperature of operation, °C 60
Shock resistance, J 5
Product type Cable plug
Voltage 400V
