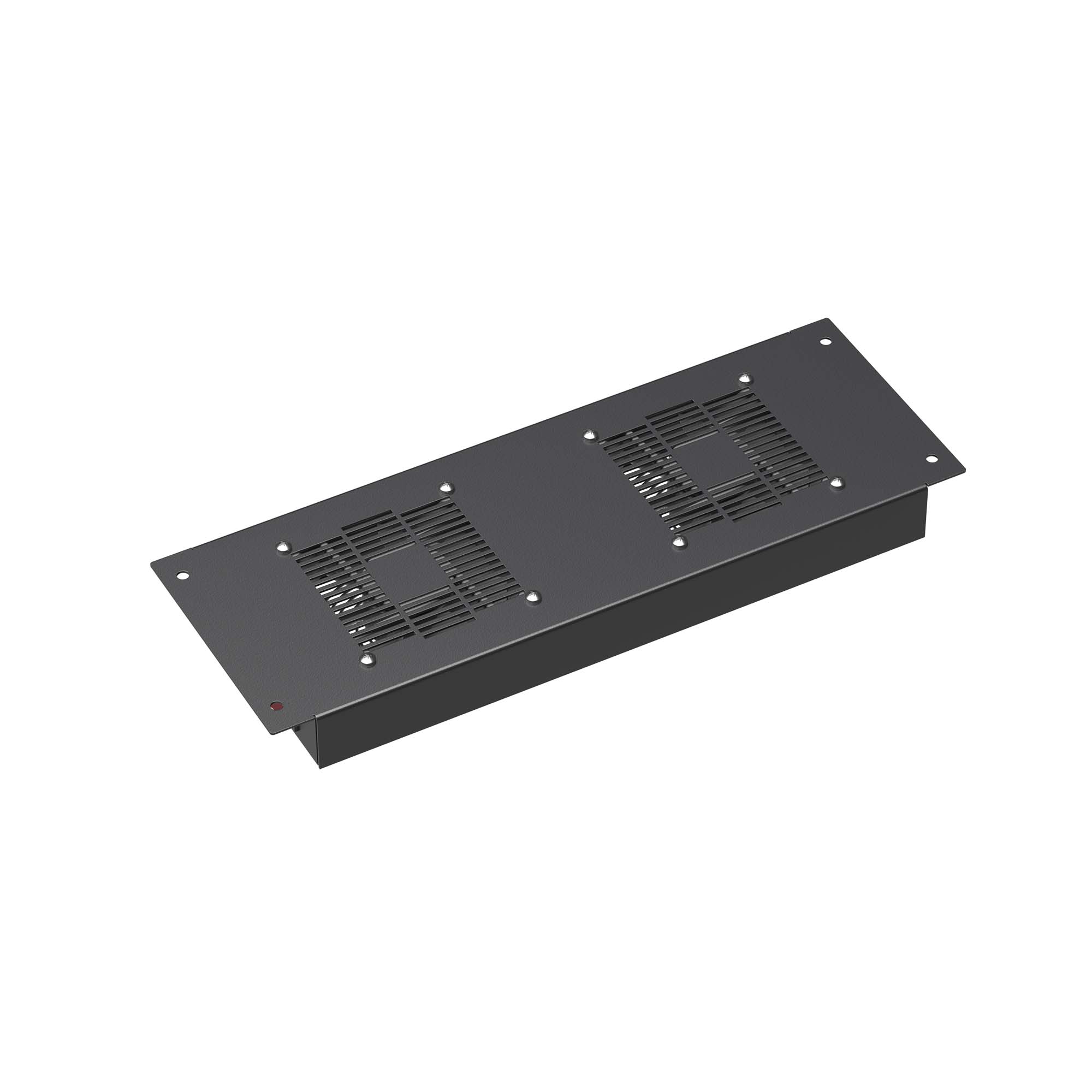

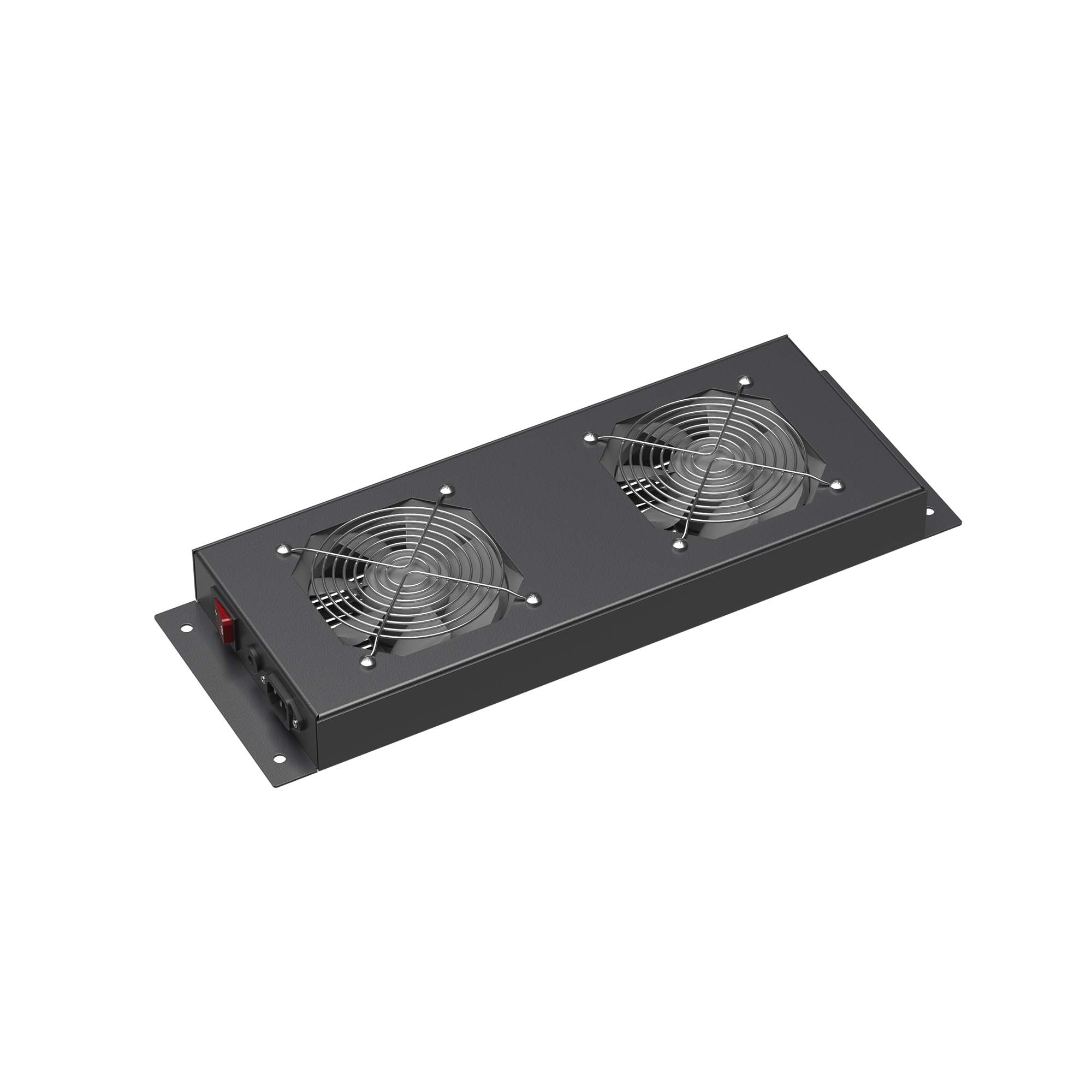

Ceiling module 2 fans without thermostat for IT CQE/STI 600mm wide, RAL9005
Code: R5VSIT6002FB
Ceiling module 2 fans without thermostat for IT CQE/STI 600mm wide, RAL9005
Code: R5VSIT6002FB
| Colour | Black |
| Depth, mm | 160 |
| RAL-number | 9005 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 2 |
| EMC-version | Yes |
| With protective cover | No |
| With filter | No |
| Rated power, W | 44 |
| Roof ventilator | Yes |
| Built as slide-in ventilator | No |
| Volume flow, freeblowing, m³/h | 320 |
| Air circulator | No |
| Wall build in | No |
| Operating voltage at AC 50 Hz, V | 210...240 |
| Mounting method | Screw mounting |
| Width, mm | 450 |
| Height, mm | 44 |
| Degree of protection (IP) | IP20 |
| Color | RAL9005 (black) |
| Product type | Ceiling fan module |
| Number of fans | 2 |
| Cabinet Width | 600 mm |
| Thermostat | No |
| Cabinet type | Floor |
