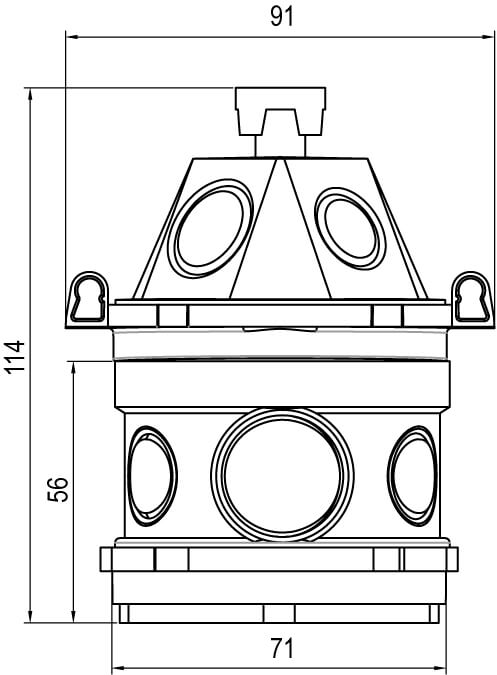

Universal ceiling box for concrete, 90x71x114 mm
Code: 59391U
Universal ceiling box for concrete, 90x71x114 mm
Code: 59391U
Mounting method | Concrete building |
Width, mm | 90 |
Model | Single |
Halogen free | No |
Depth | 114 |
Diameter, mm | 71 |
Construction type | Device connection box (round/square) |
Material | Plastic |
Number of inlets | 10 |
With screws | No |
Inlet from the rear | No |
Clamp position fixed | No |
Shape | Round |
Cover attachment | Snapped on |
Number of modules | 1 |
Colour | Blue |
Length, mm | 114 |
Material | PVC |
-5°С ... +60°С | -25°С ... +100°С |
от -25°С до +60°С | from -25°С to +100°С |
Product type | Ceiling box for pouring the concrete |
ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
3 года | 3 years |
