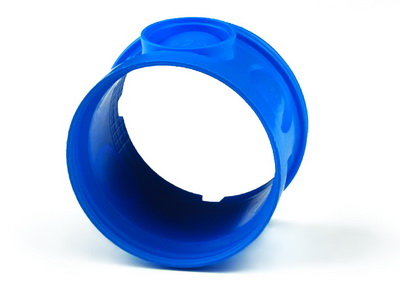

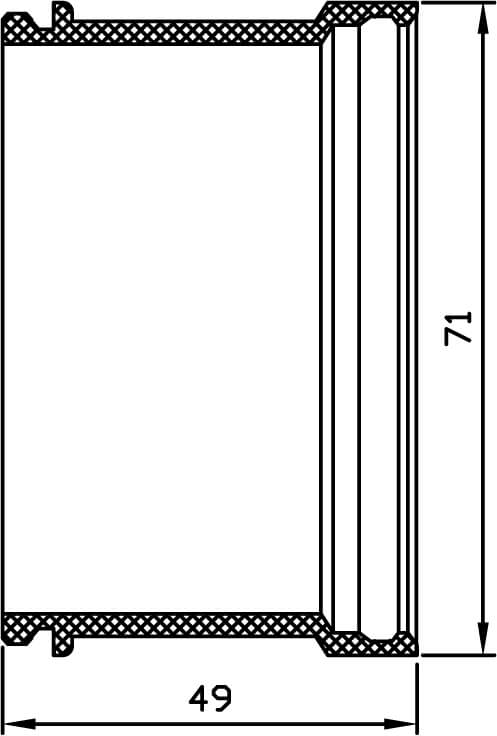

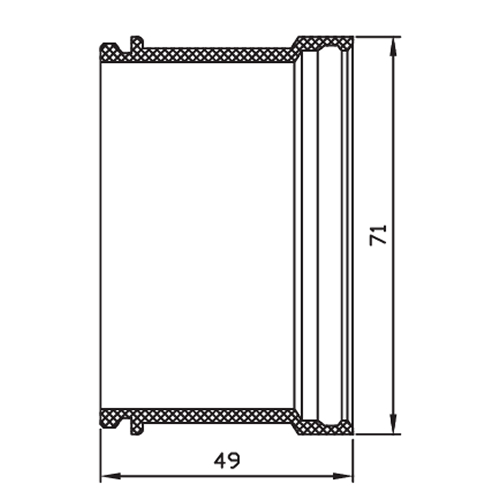

Body of the box for concrete, Ø 71x49 mm
Code: 59381B
Body of the box for concrete, Ø 71x49 mm
Code: 59381B
| Mounting method | Concrete building |
| Width, mm | 71 |
| Halogen free | No |
| Depth | 49 |
| Material | Plastic |
| Cover attachment | Snapped on |
| Model | Single |
| Diameter, mm | 71 |
| Construction type | Device connection box (round/square) |
| Number of inlets | 6 |
| With screws | No |
| Inlet from the rear | No |
| Clamp position fixed | No |
| Shape | Round |
| Number of modules | 1 |
| Colour | Blue |
| Length, mm | 49 |
| Material | PVC |
| -5°С ... +60°С | -25°С ... +100°С |
| от -25°С до +60°С | from -25°С to +100°С |
| Product type | Body of the box for concrete |
| ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
| 3 года | 3 years |
Certificates
| Name | Document |
|---|---|
