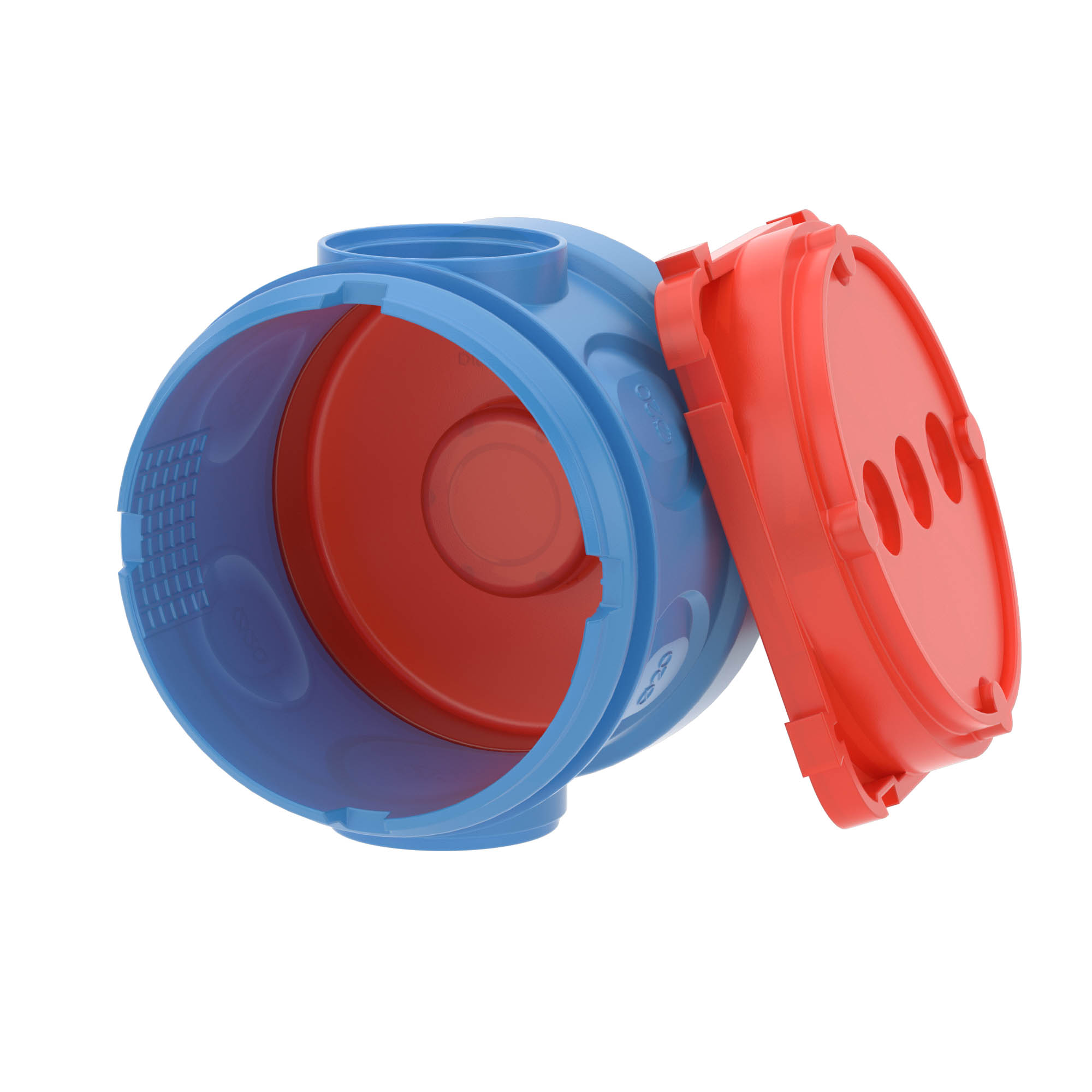

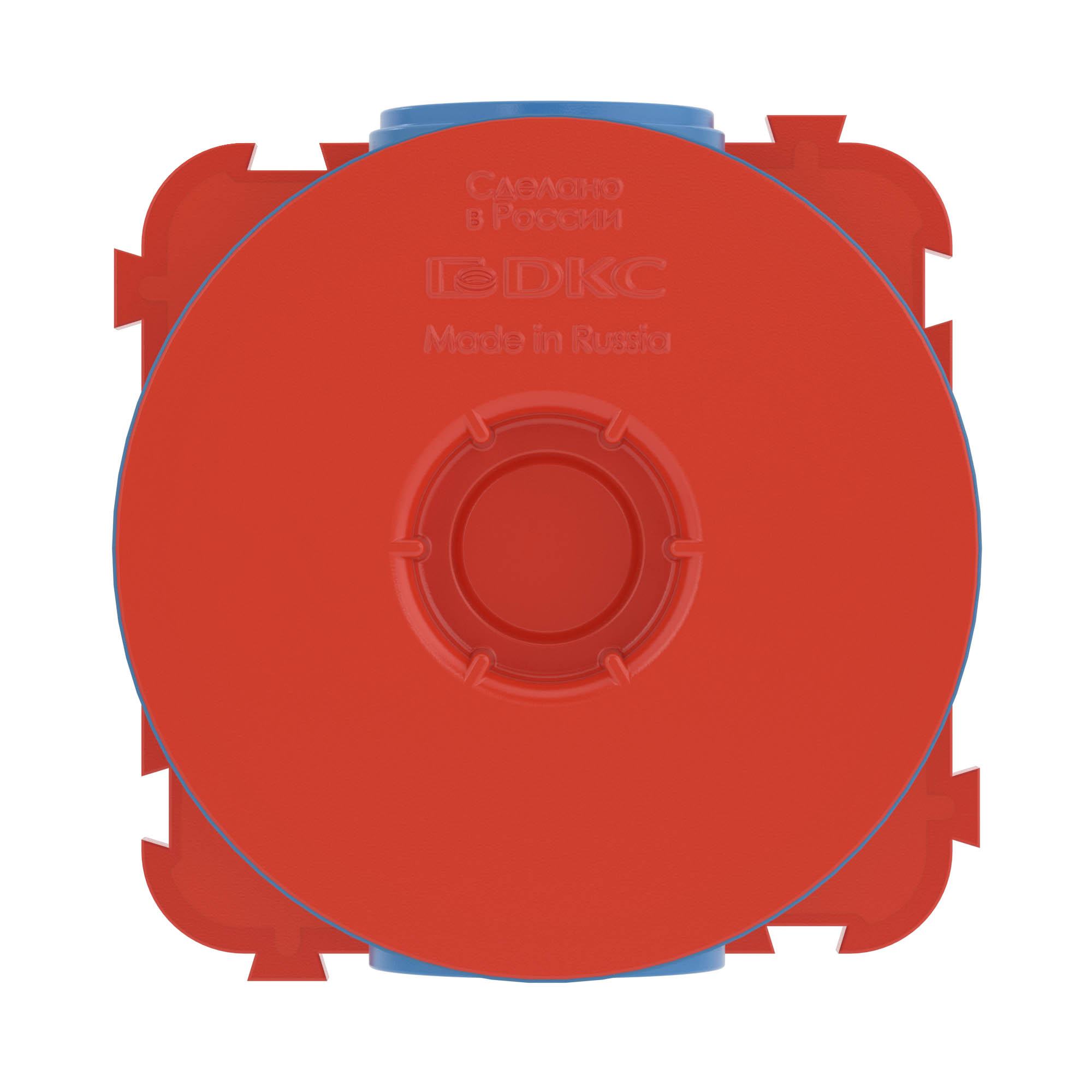

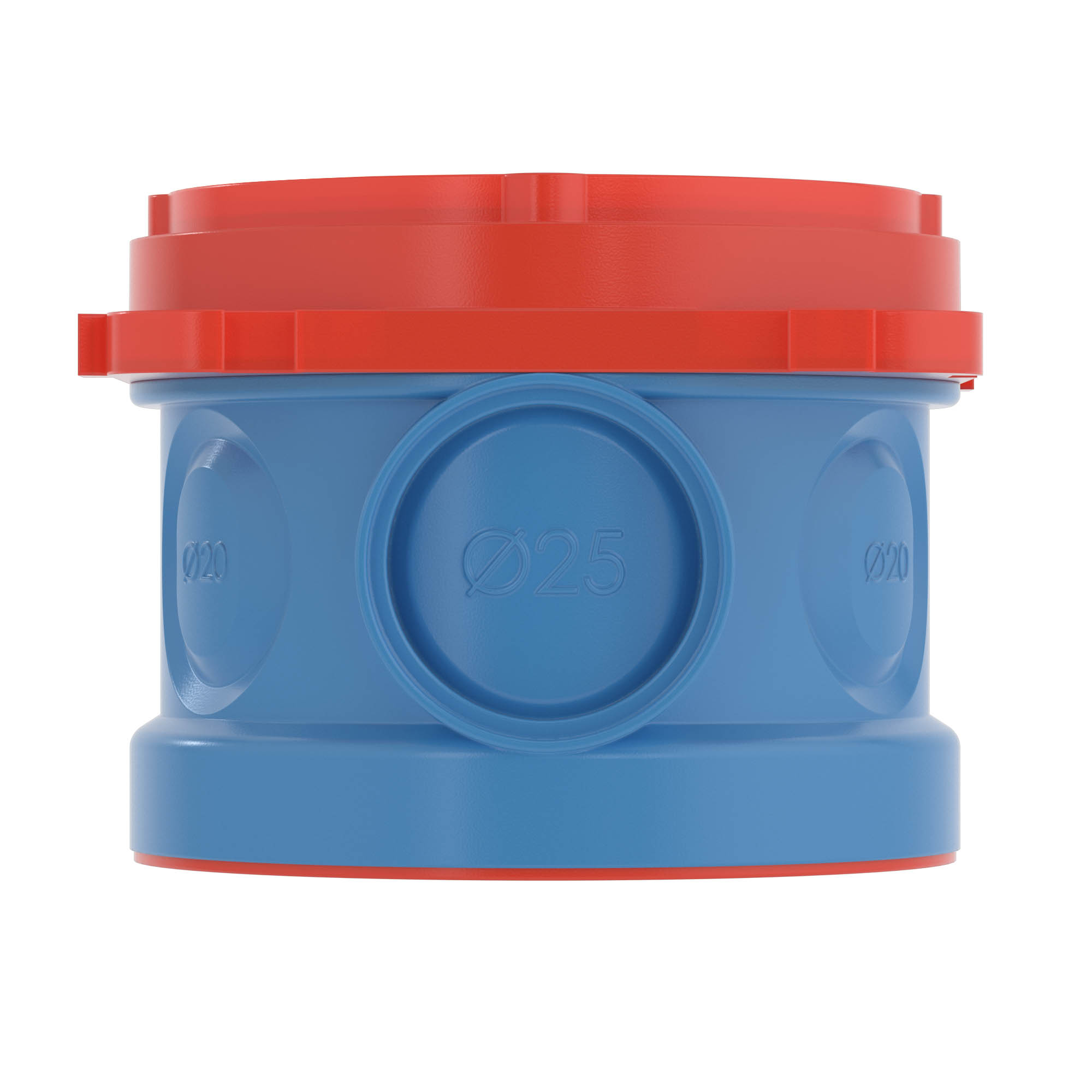

Adjusting box for concrete, Ø 70x57 mm
Code: 59380
Adjusting box for concrete, Ø 70x57 mm
Code: 59380
| Mounting method | Concrete building |
| Width, mm | 75.8 |
| Model | Single |
| Halogen free | No |
| Depth | 57 |
| Diameter, mm | 70 |
| Construction type | Device connection box (round/square) |
| Material | Plastic |
| Number of inlets | 6 |
| With screws | No |
| Inlet from the rear | No |
| Clamp position fixed | No |
| Shape | Round |
| Cover attachment | Snapped on |
| Number of modules | 1 |
| Colour | Blue |
| Length, mm | 57 |
| Temperature of mounting, °C | -25°С ... +100°С |
| Temperature of operation, °C | from -25°С to +100°С |
| Height (nominal), mm | 57 |
Certificates
| Name | Document |
|---|---|
