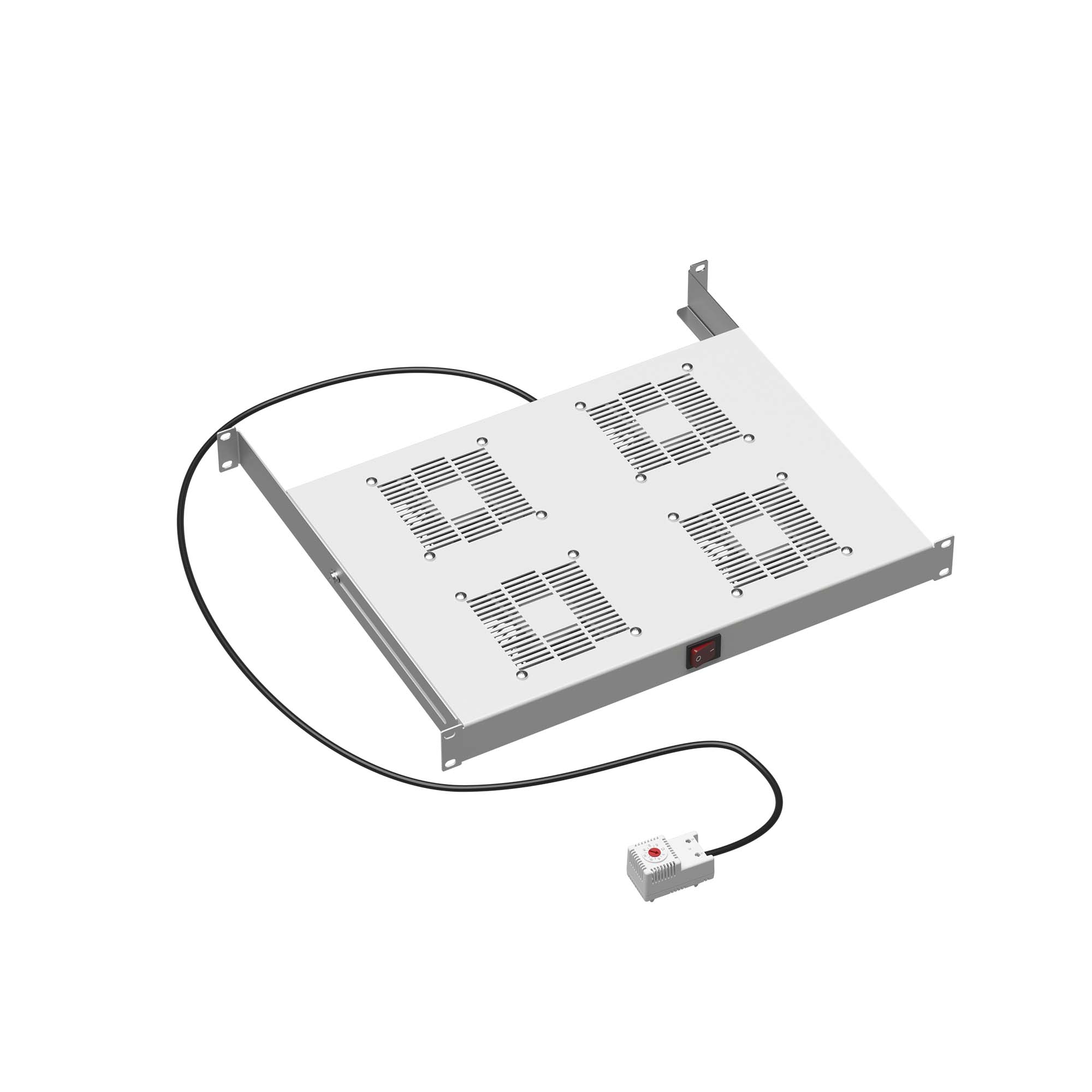

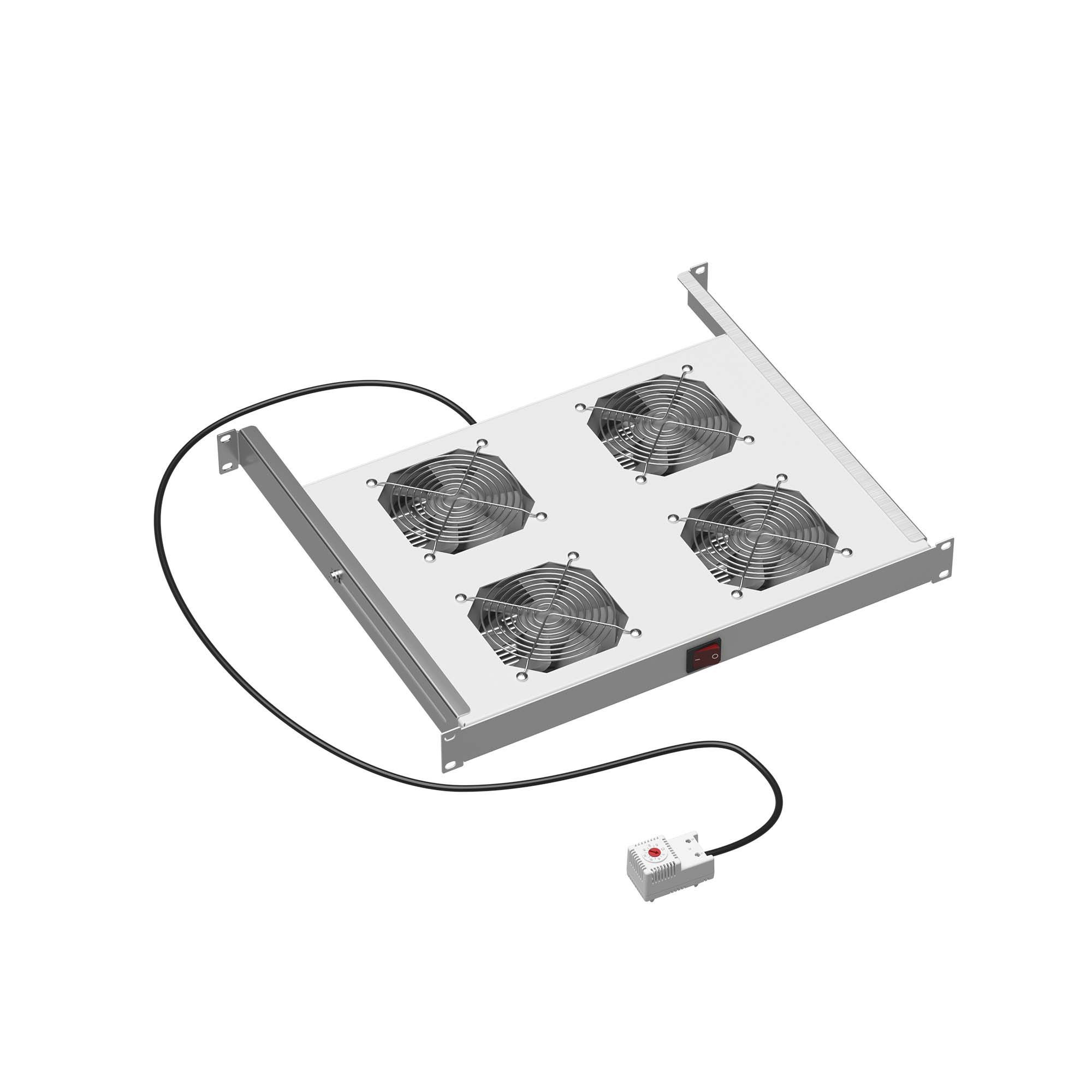

19" Fan module, 4 with thermostat, RAL7035

Code: R519VSIT4FT
Code: R519VSIT4FT
  • To ask a question
Colour Grey
Depth, mm 320
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting Yes
Number of fans 4
EMC-version Yes
With protective cover No
With filter No
Rated power, W 66
Roof ventilator No
Built as slide-in ventilator No
Volume flow, freeblowing, m³/h 640
Air circulator No
Wall build in No
Operating voltage at AC 50 Hz, V 210...240
Mounting method Screw mounting
Width, mm 482.6
Height, mm 44
Degree of protection (IP) IP20
Product type 19"fan panel with thermostat
Height 1U
Number of fans 4
Color RAL7035 (light gray)
