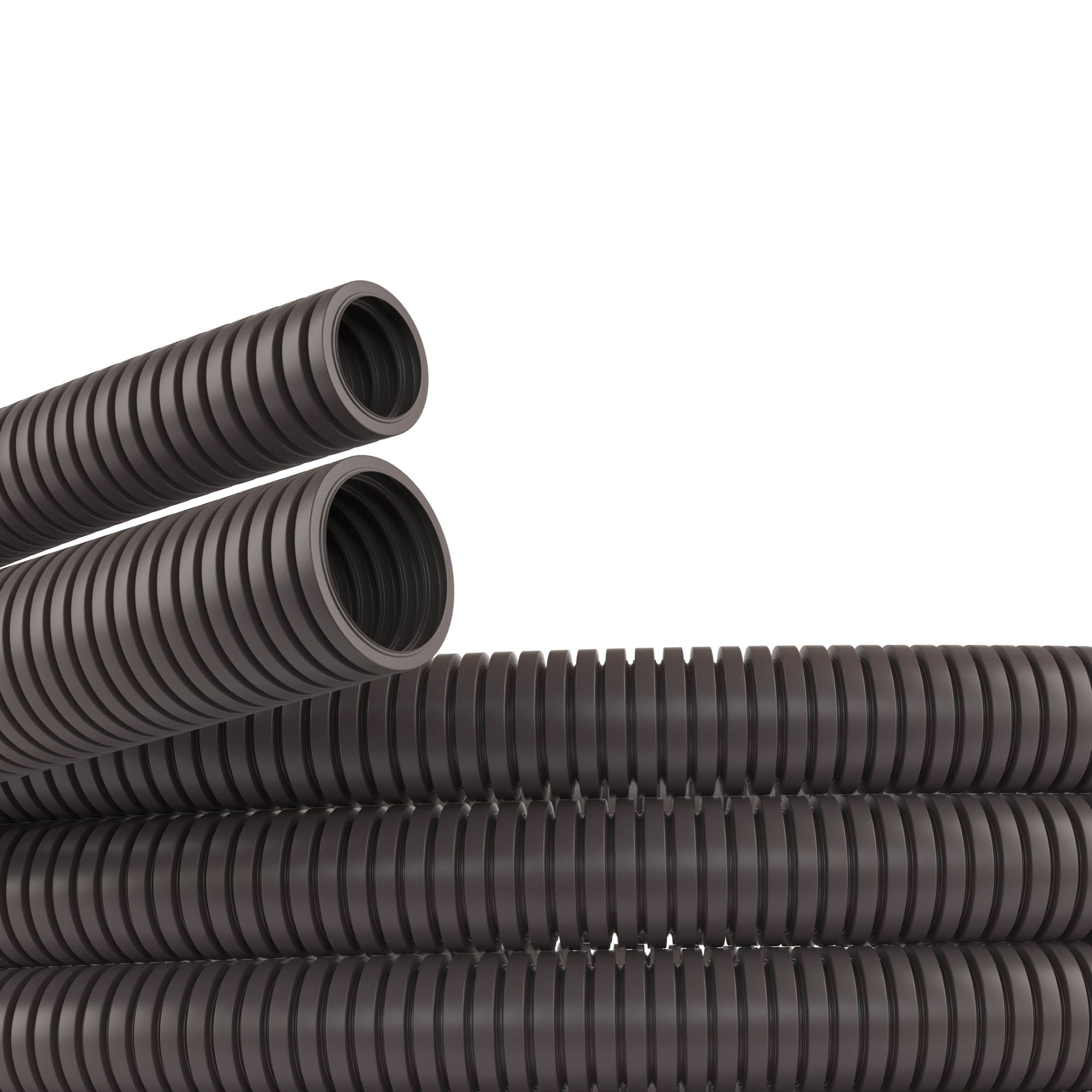

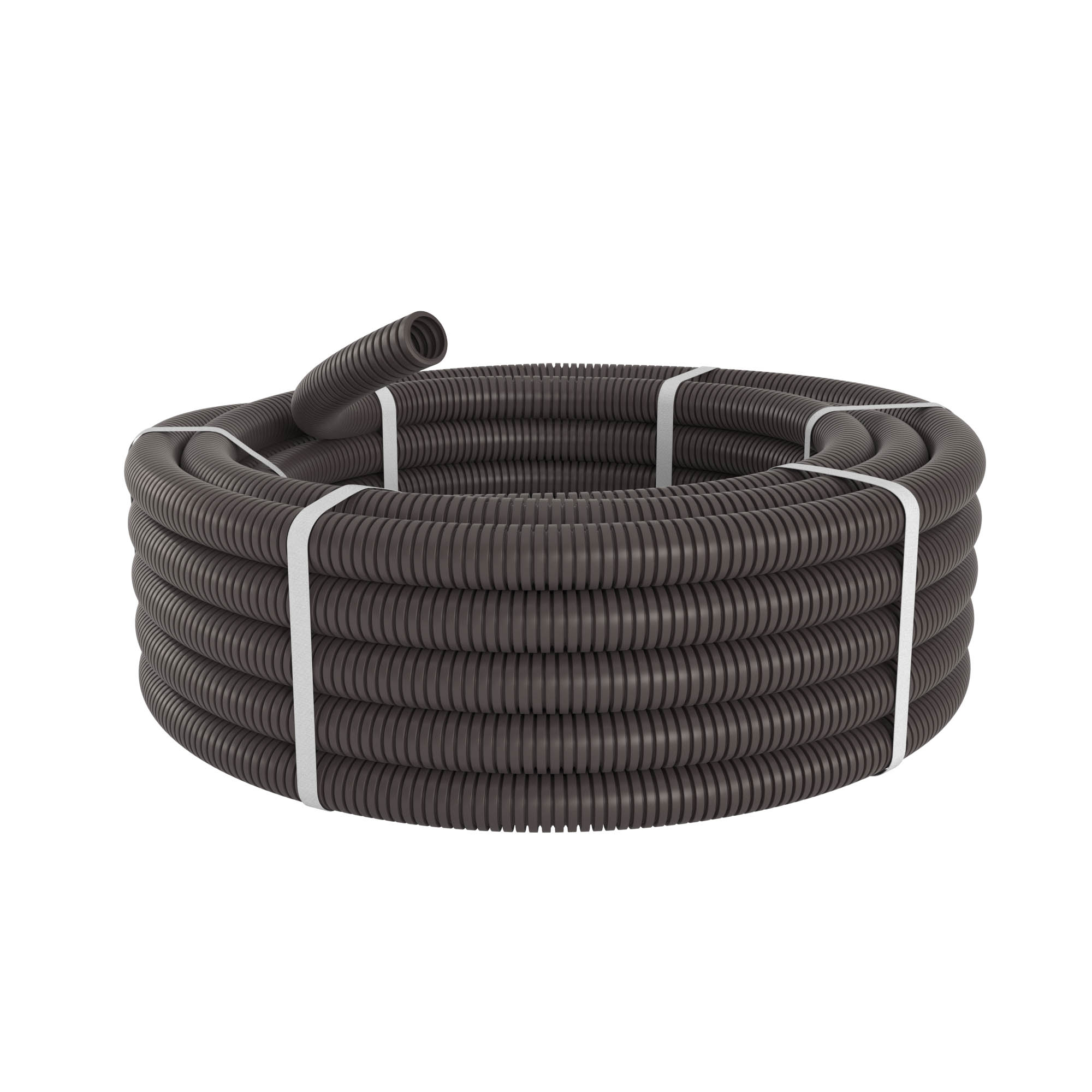

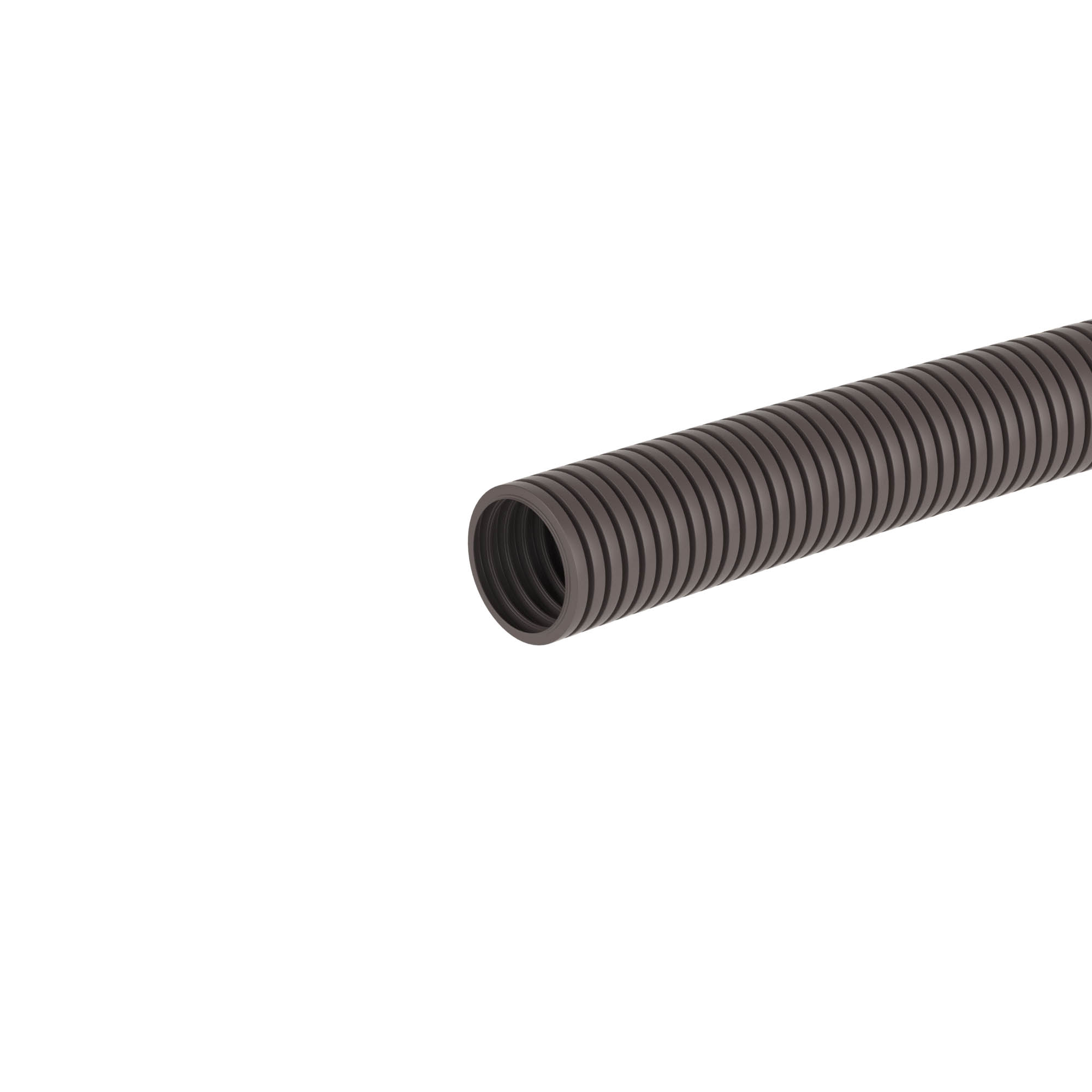

Tube PA6V0 flexible corrugatted Ø20mm without pul, 100m, dark gray color

Code: 80020
Tube PA6V0 flexible corrugatted Ø20mm without pul, 100m, dark gray color
  • To ask a question
Colour Grey
Outer diameter, mm 21.2
Oil resistant Yes
UV resistant Yes
Inner diameter, mm 17
Compressive strength, N 200
Operational temperature, °C -40…105
Fire resistance according to UL94 Other
Bending radius, static, mm 40
Flame accelerating No
Approved according to UR No
Approved according to CSA No
Approved according to DIN 5510 No
Material Polyamide 6
Tensile strength, N 300
Approves according to Vd TÜV/GGVS No
Approved according to LUL/British Standard No
Approved according to Lloyd's Register TA No
Approved according to UTAC No
Nominal diameter, mm 20
Nominal size in inch 3/4 inch
Degree of protection (IP) IP68
Bending strength Flexible
Lengthwise slotted No
Closable (two-part) No
Approved according to DIN EN 61386-23 No
Approved according to NF F 16-101 No
-- No
Sheathing material Not sheathed
Length 100000 mm
Diameter (nominal) 20 mm
Color Dark gray
Material PVC
-5°С ... +60°С -40°С ... +105°С
Ingress Protection rating, IP IP68
от -25°С до +60°С from -40°С to +105°С
Shock resistance, J >1
Cord for wires No
Fire protection V-0 ( по UL-94)
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years
