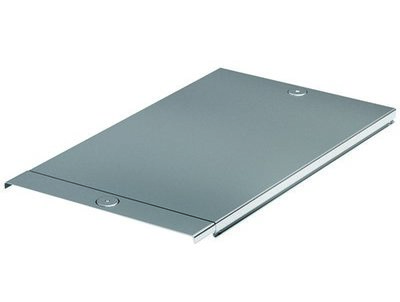

Straight Element Cover b. 200 L 2000, thick 1,5mm

Code: 3551415

To ask a question

Colour	Light grey
Surface protection	Sendzimir galvanized
Material thickness, mm	1.5
Material quality	Other
Length, mm	2000
Material	Steel

Type of fastening	Snapped on
Cover width, mm	200
Suitable for wire mesh tray	Yes
Suitable for cable ladder	Yes
Suitable for cable duct	Yes
Stainless steel, pickled	No

Material	Steel, Sendzimir galvanized
Height, mm	15

Length, mm	2000
Thickness of metal sheet, mm	1.5

Analogs

Straight Element Cover b. 200 L 3000, thick 1,5mm

Code: 3552415

Straight Element Cover b 200 L3000 thick.1,5 mm, HDZ

Code: 3552415HDZ

Straight Element Cover b. 200 L 3000, thick 1,5mm ZL

Code: 3552415ZL

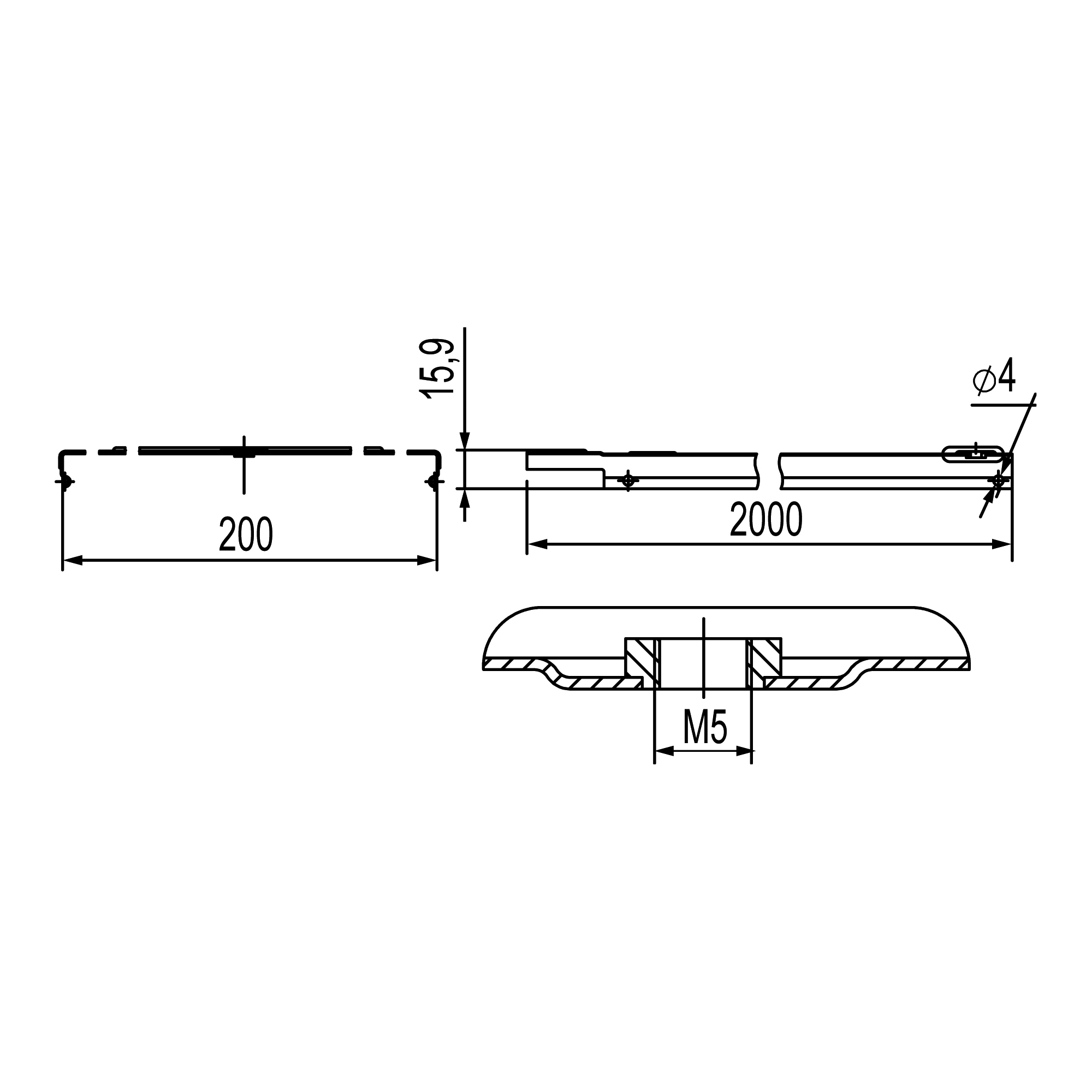

Drawings

Seria	Name	STEP	SAT	Intergraph	Autodesk Revit	DWG (dynamic blocks)	AVEVA
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"	ZIP 17.15 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"		RAR 11.99 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"			RAR 5.28 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"				ZIP 11.67 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"					ZIP 19.21 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"						ZIP 726.23 kB

Certificates

Name	Document
Certificate of conformity to GOST R for metal sheet trays	PDF 435.66 kB
S5 Combitech - Exemption letter for sanitary-epidemiological conclusion for metal sheet trays_1	PDF 1.14 MB
All types of metal trays - Fire safety certificates in the group according to the German standard E90 DIN 4102–12:1998–11_1	PDF 182.19 kB
All types of metal trays - Fire safety certificates for all types of metal trays R90_1	PDF 2.79 MB
Certificate of Conformity on fire resistant for cable line as part of the cable trays and KMZ "S5 Combitech"	PDF 2.71 MB
Exemption Letter for metal trays and its accessories	PDF 3.87 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OAO "Electrocable" Kolchuginsky Zavod"	PDF 1.96 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OOO "Rybinskkabel' "	PDF 3.20 MB
Certificate of conformity for fire protection cable line with fire resistance limit a 10 minutes	PDF 2.71 MB
Certificate of conformity for fire protection cable line of products DKC (series S5 Combitech", "F5 Combitech", "L5 Combitech", "B5 Combitech", "M5 Combitech"б "Cosmec") and OOO "Rybinskelektrokabel' "	PDF 6.74 MB
Russian Maritime Register of Shipping for sheet cable trays S5 Combitech_1	PDF 659.39 kB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Certificate of conformity to seismic impact resistance for system of cable trays "S5 Combitech" and fastening system "M5 Combitech"	PDF 907.27 kB
Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC, Electrocable Kolchuginsky Zavod and Zavod Energokabel	PDF 4.85 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"	PDF 4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014	PDF 4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1	PDF 8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2	PDF 12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018	PDF 18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017	PDF 11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015	PDF 11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017	PDF 11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC, "Energokabel", "Electrocable. Kolchuginsky Zavod on the TRM 0015-2017	PDF 4.86 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015	PDF 5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"	PDF 13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"	PDF 5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions	PDF 2.97 MB
Certificate of conformity to fire safety to GOST R 53316-2009 for the Fire resistant cable support construction of DKC, OOO Kabel’niy zavod "ALUR", OOO "REK"	PDF 4.50 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"	PDF 3.06 MB
Fire safety certificate for fireproof cable penetrations (IET 150 GOST R 53310-2009)	PDF 715.70 kB
