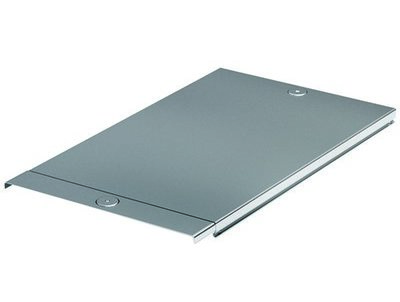

Straight Element Cover b .300 L2000, thick 1,2mm
Code: 3551512
Straight Element Cover b .300 L2000, thick 1,2mm
Code: 3551512
Colour | Light grey |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 1.2 |
Length, mm | 2000 |
Material | Steel |
Type of fastening | Snapped on |
Cover width, mm | 300 |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Material quality | Steel |
Product type | Cover for straight section |
Length | 2000 mm |
Thickness | 1.2 mm |
Material | Pre-galvanized |
Width | 300 mm |
Accessories

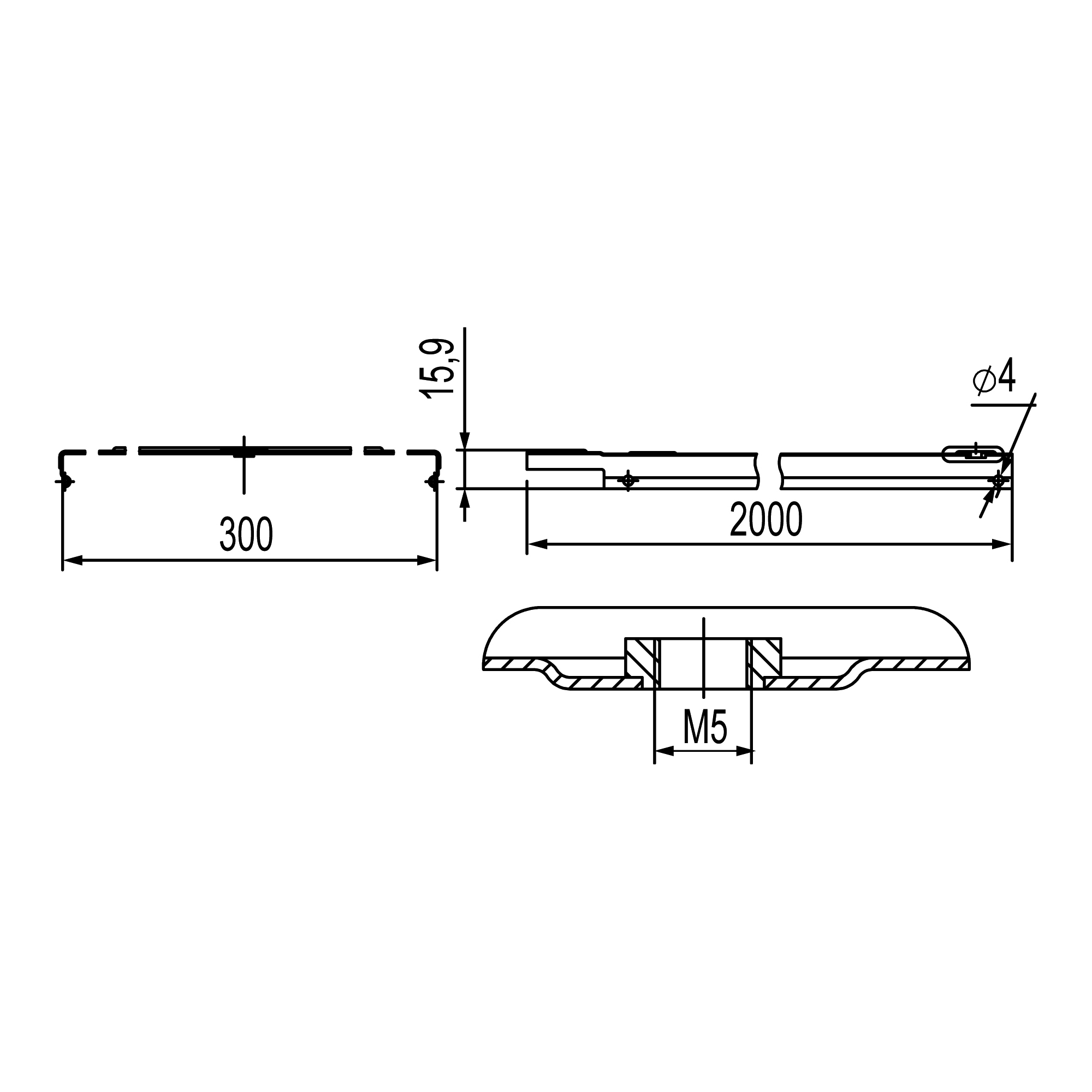

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
