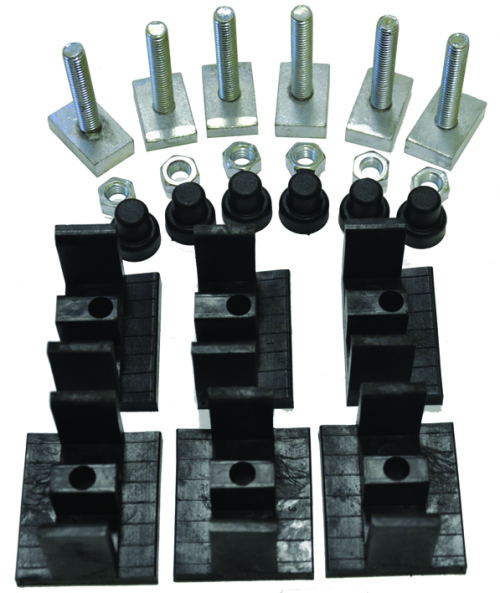

No name

Code: R5BSFVLT3

To ask a question

Colour	Other
With mounting plate	No
EMC-version	No
With glazed door	No
Floor mounting possible	No
Material	Other
Wall mounting possible	No
Degree of protection (IP)	Other
Suitable for outdoor set-up	Yes

Suitable for metrical mounting	No
Mounting plate depth-adjustable	No
Tackable	No
With ventilation door	No
Type of surface	Other
Surface mounting	Yes
With backside door	No
Flush-mounted installation	No

Thickness of busbar	5–10
Q'ty of poles	3
Minimum interphase distance	20

Q'ty of busbar supports	L типа - 2, T типа 2
Height of busbar, mm	30–100

Drawings

Seria	Name	Eplan	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)		RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)		RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
