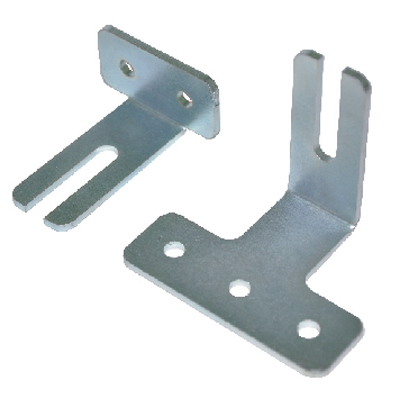

The holder of the profile for the vertical bus system

Code: R5BSEV04

To ask a question

Colour	Other
Width, mm	65
Model	Profile rail

Height, mm	58
Depth, mm	25
Material	Metal

Enclosure type

Floor

Product type

Busbar holders and accessories

Drawings

Seria	Name	DWG (dynamic.)	Eplan
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE (dynamic blocks)	RAR 8.46 Mb
Metal enclosures - "RAMblock"	Prefabricated outdoor metal cabinets CQE		RAR 169.72 Mb
Metal enclosures - "RAMblock"	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)	RAR 1.17 Mb

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
