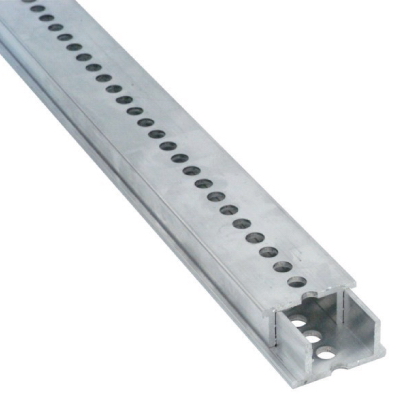

Aluminum profile for typesetting holders (length - 2 meters)

Code: R5BSEV01
Aluminum profile for typesetting holders (length - 2 meters)
Aluminum profile for typesetting holders (length - 2 meters)

Aluminum profile for typesetting holders (length - 2 meters)

Code: R5BSEV01
Mounting method Screw mounting
Model Systemic
Step less mounting Yes
Length, mm 2000
Material Aluminium
Number of height units 1
Surface finishing Untreated
Profile height busbar, mm 44.8
Enclosure type Floor
Product type Busbar holders and accessories
Drawings
Seria Name DWG STEP DWG (dynamic.) Eplan
Metal enclosures - "RAMblock"
Profile aluminium for stackable holders (length - 2 meters)
RAR
65.65 Kb
RAR
14.95 Kb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE (dynamic blocks)
RAR
8.46 Mb
Metal enclosures - "RAMblock"
Prefabricated outdoor metal cabinets CQE
RAR
169.72 Mb
Metal enclosures - "RAMblock"
Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)
RAR
1.17 Mb
Certificates
Name Document
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
