APPLIANCE INLET 3P+N+E IP67 32A 6h

Code: DIS2473297

APPLIANCE INLET 3P+N+E IP67 32A 6h

Code: DIS2473297
Width 70
Height 87
Depth 122
Lockable No
With hinged lid No
With socket outlet No
Number of phases 3
With child-protection No
Frequency 50
Cable entry Swivel
Extension possible No
With transparent cover No
Fault current protection No
Number of poles 5
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 32
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 70
Drill hole distance horizontal 56
Width of device 93
Height of device 153
Depth of device 122
Angle of plug Angled
Connection system Screwed terminal
Product type Flush-mounting plug
Voltage 400V
Accessories

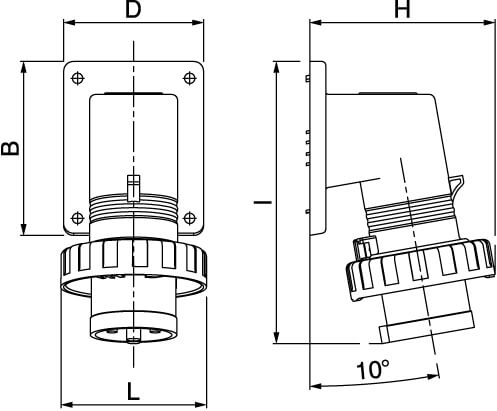

Drawings
