Cable plug 40-50 В

Code: DIS2301601

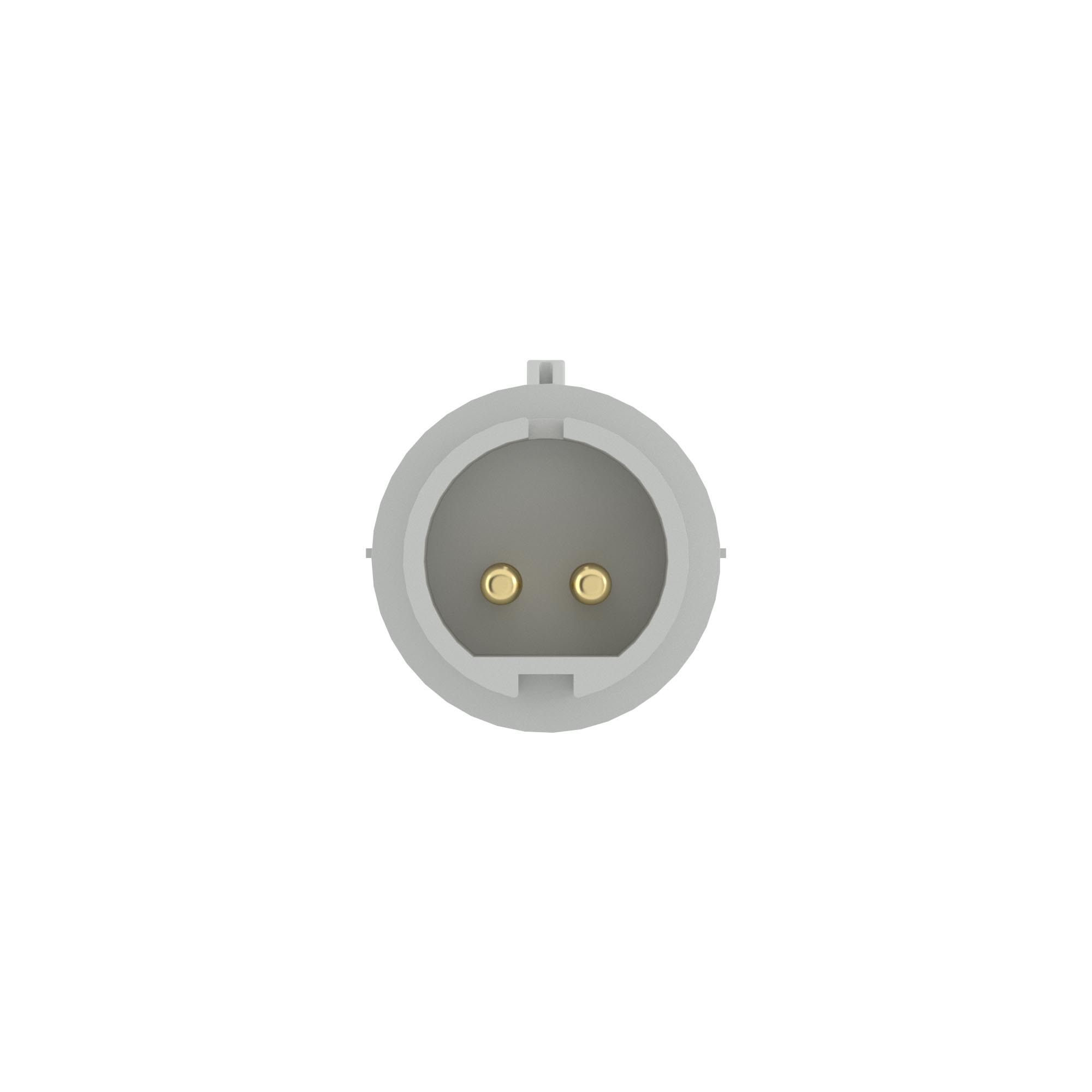

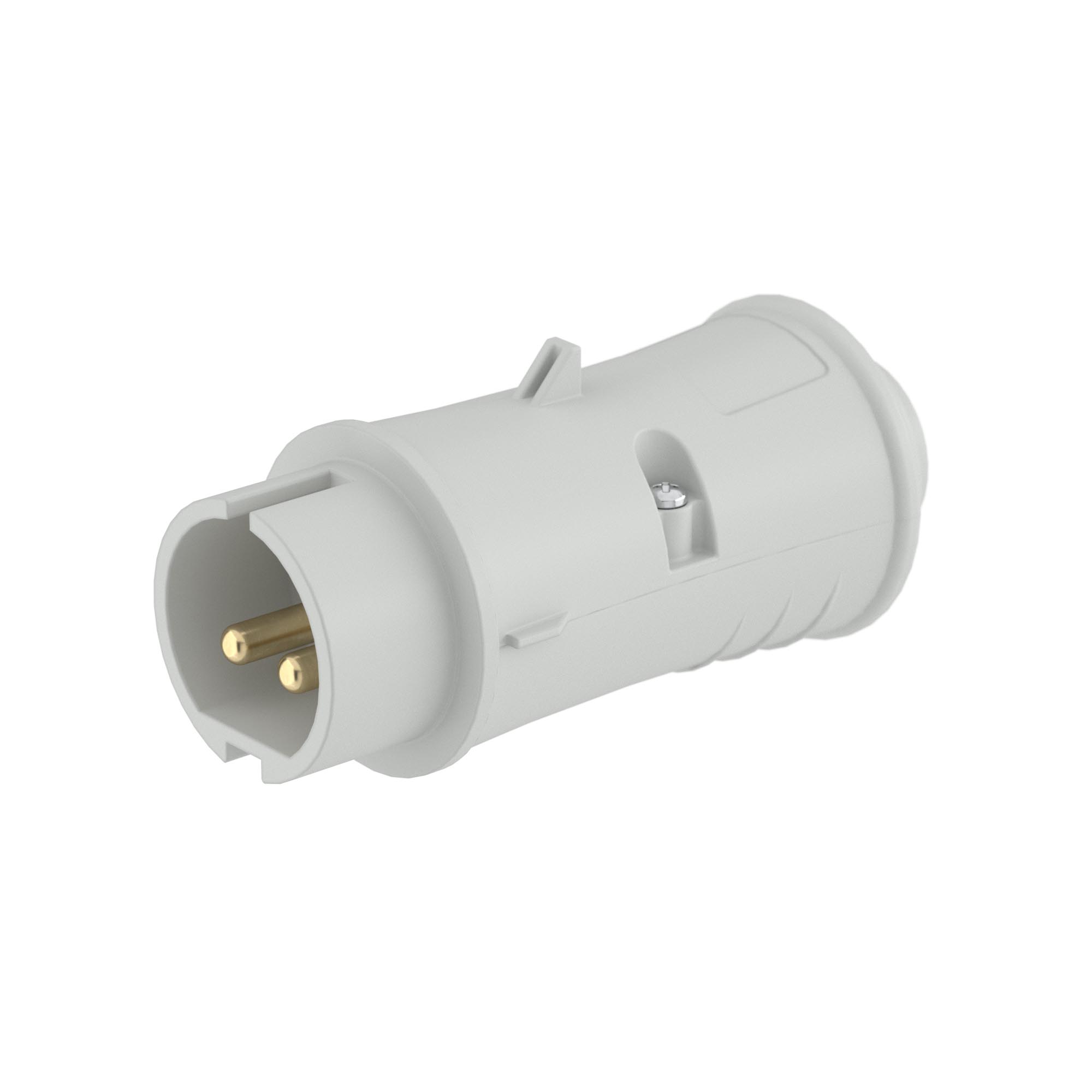

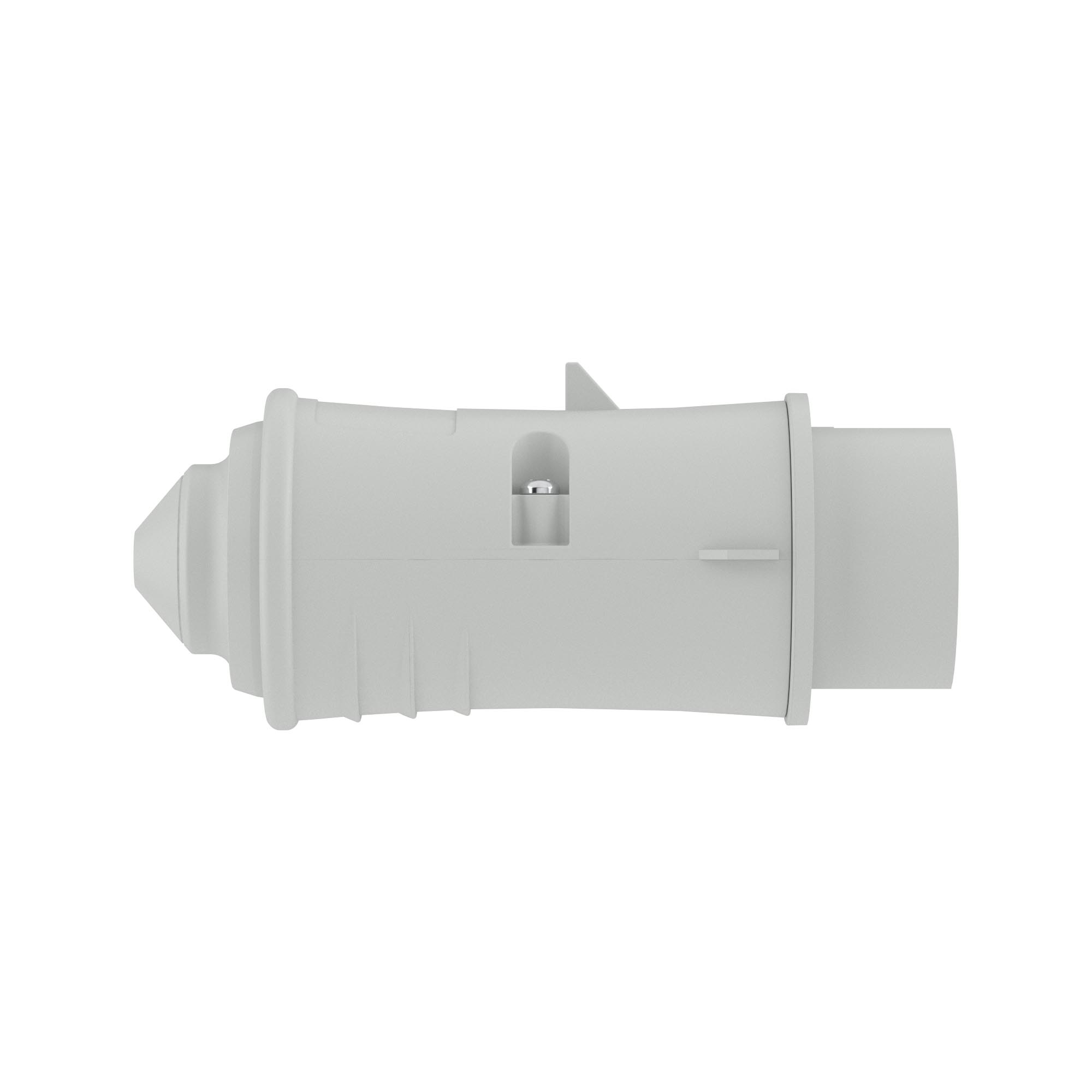

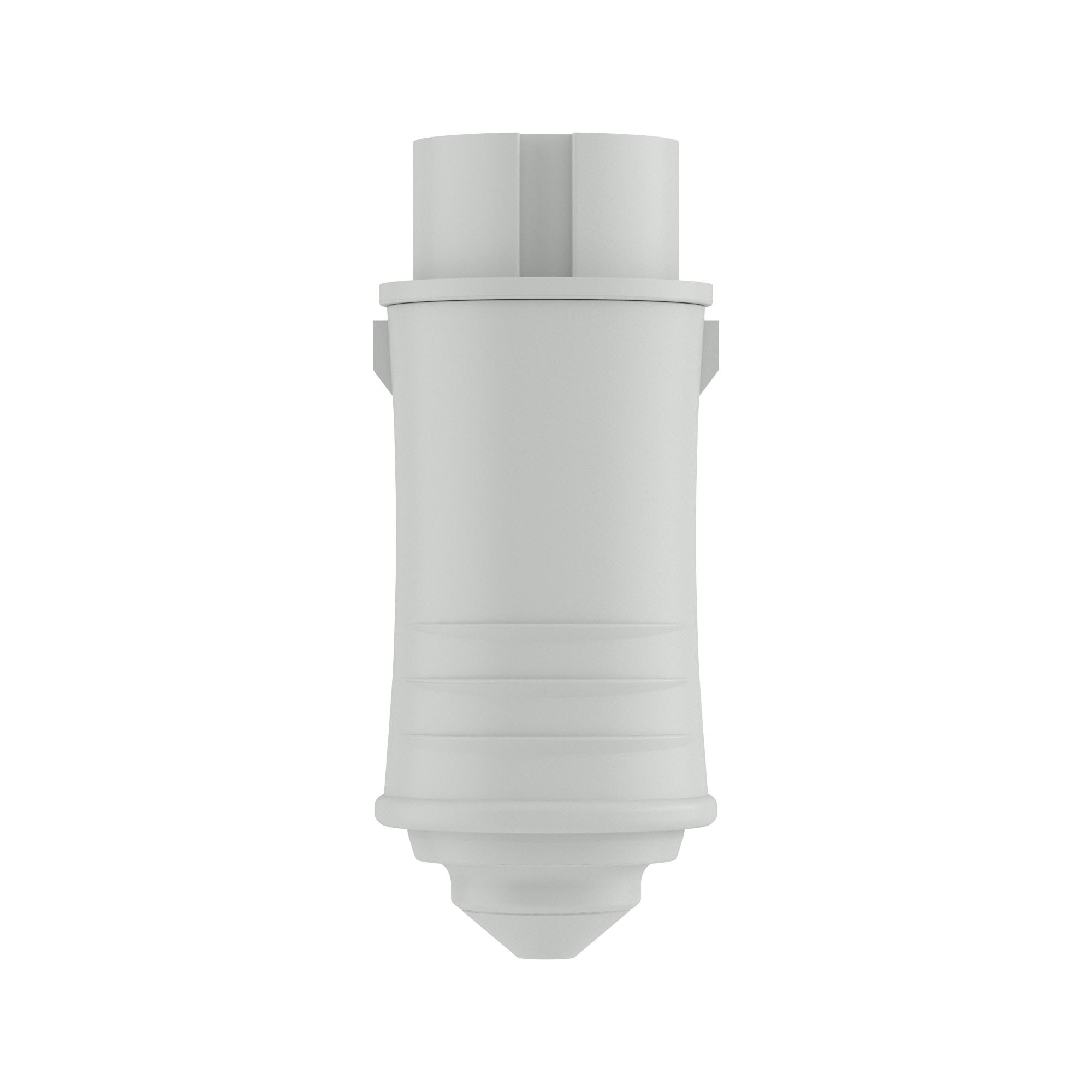

Cable plug 40-50 В
Cable plug 40-50 В
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50-60
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 2
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 16
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP44
Military model No
Total number of groups 1
Clock hour position, h 6
Identification colour White
Voltage acc. EN 60309-2 40-50 V (50+60 Hz) white
Angle of plug Straight
Connection system Screwed terminal
Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
The System "Quadro"
RAR
27.23 MB
Quadro - industrial plugs
The system "Quadro" industrial connectors
ZIP
31.52 MB
Certificates
Name Document
The certificate of expert opinion on an electrical plug connectors for industrial use series “SCAME PARRE S.p.A.”
PDF
5.39 MB
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.
PDF
4.91 MB
