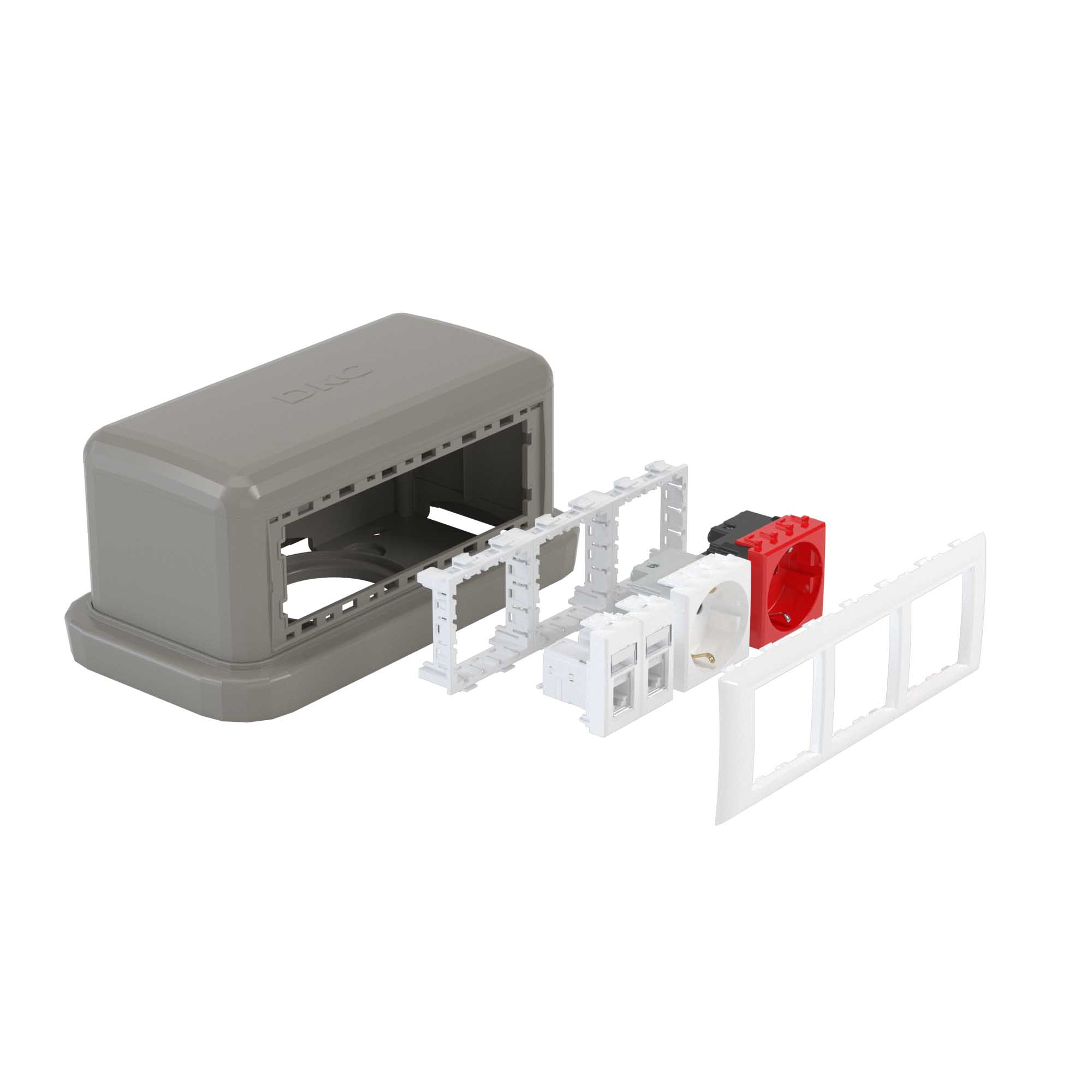

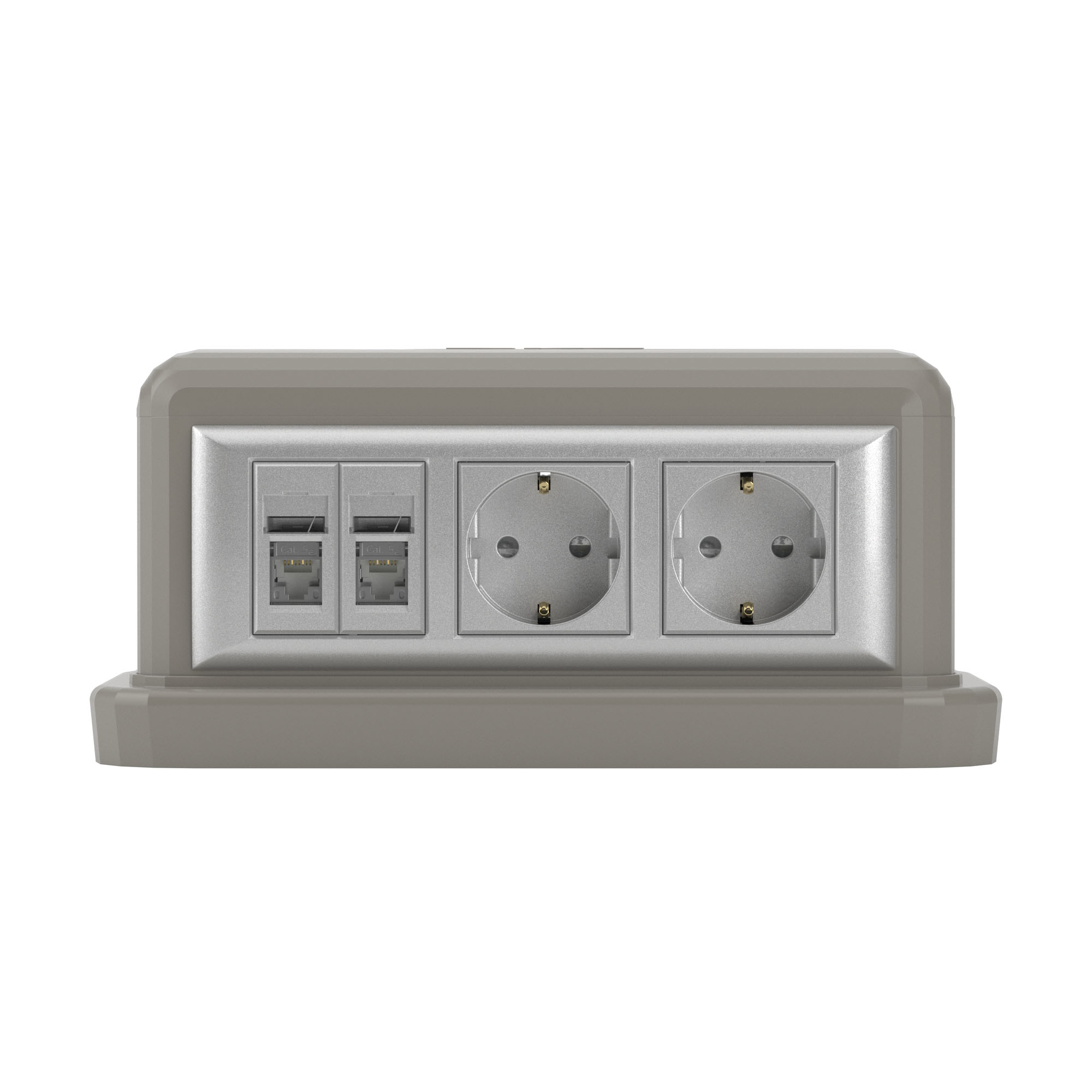

BUS Turret for floor, 12 mod., gray
Code: 09070
BUS Turret for floor, 12 mod., gray
Code: 09070
| Cable entry | Sideways |
| Floor mounting possible | Yes |
| Type of fastening | Stand (base) |
| Number of usable covers | 1 |
| Number of partitions | 2 |

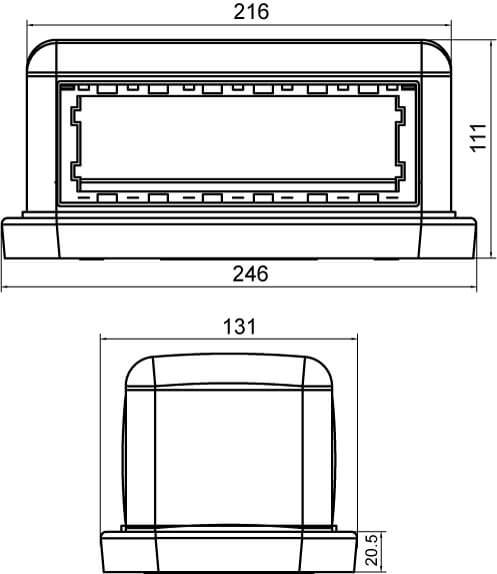

| Cover width, mm | 131 |
| Column height, mm | 111 |
| Material installation column | Plastic |
| Material cover | Plastic |
| Through-going profile | No |
| Ceiling mounting | No |
| Pillar shape | Rectangular |
| Colour cover | Light grey |
| Colour column | Light grey |
| Prewired | No |
| Material installation column halogen free | Yes |
| Material cover halogen free | Yes |
| Material quality installation column | Other |
| Material quality cover | Other |
| RAL-number column | 7030 |
| RAL-number cover | 7030 |
| Temperature of mounting, °C | CV295354 |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°C ... +60°C |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Self-glueing base | false |
| Product type | BUS minitower |
