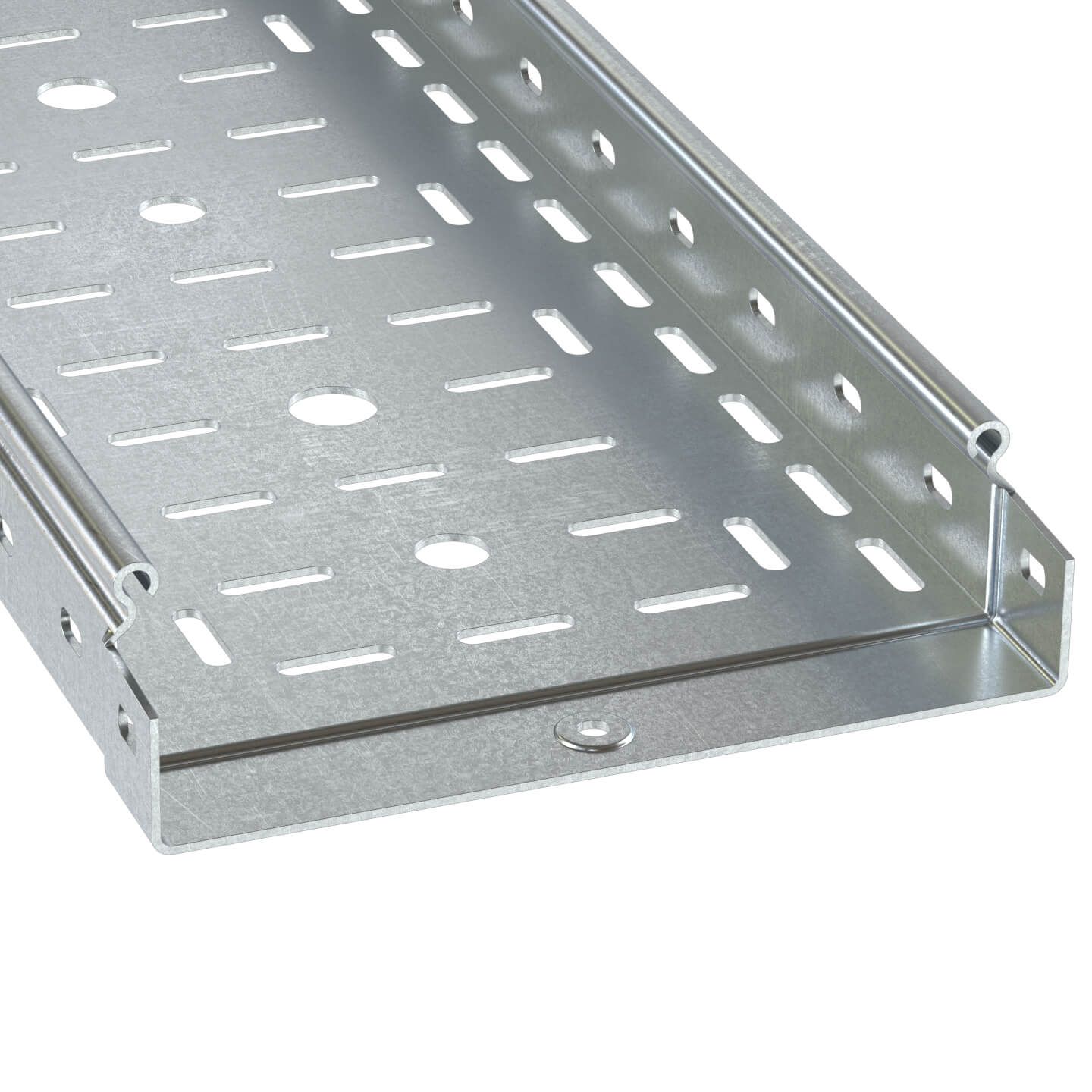

Perforated Straight Element500х50 L3000 thick1,5 mm

Code: 3526715

Perforated Straight Element500х50 L3000 thick1,5 mm

Code: 3526715
Colour Light grey
Width, mm 500
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 24500
Wide span model Yes
Suitable for circuit integrity Yes
Product type Perforated Straight Element
Length 3000 mm
Width 500 mm
Height 50 mm
Material Pre-galvanized steel
Type Metal sheet trays - " S5 Combitech"
Thickness 1.5 mm
Accessories
Analogs

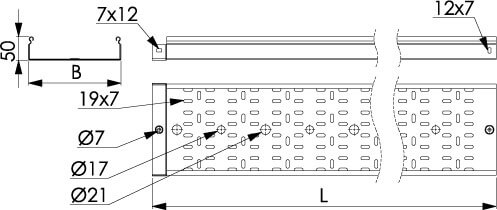

Drawings
