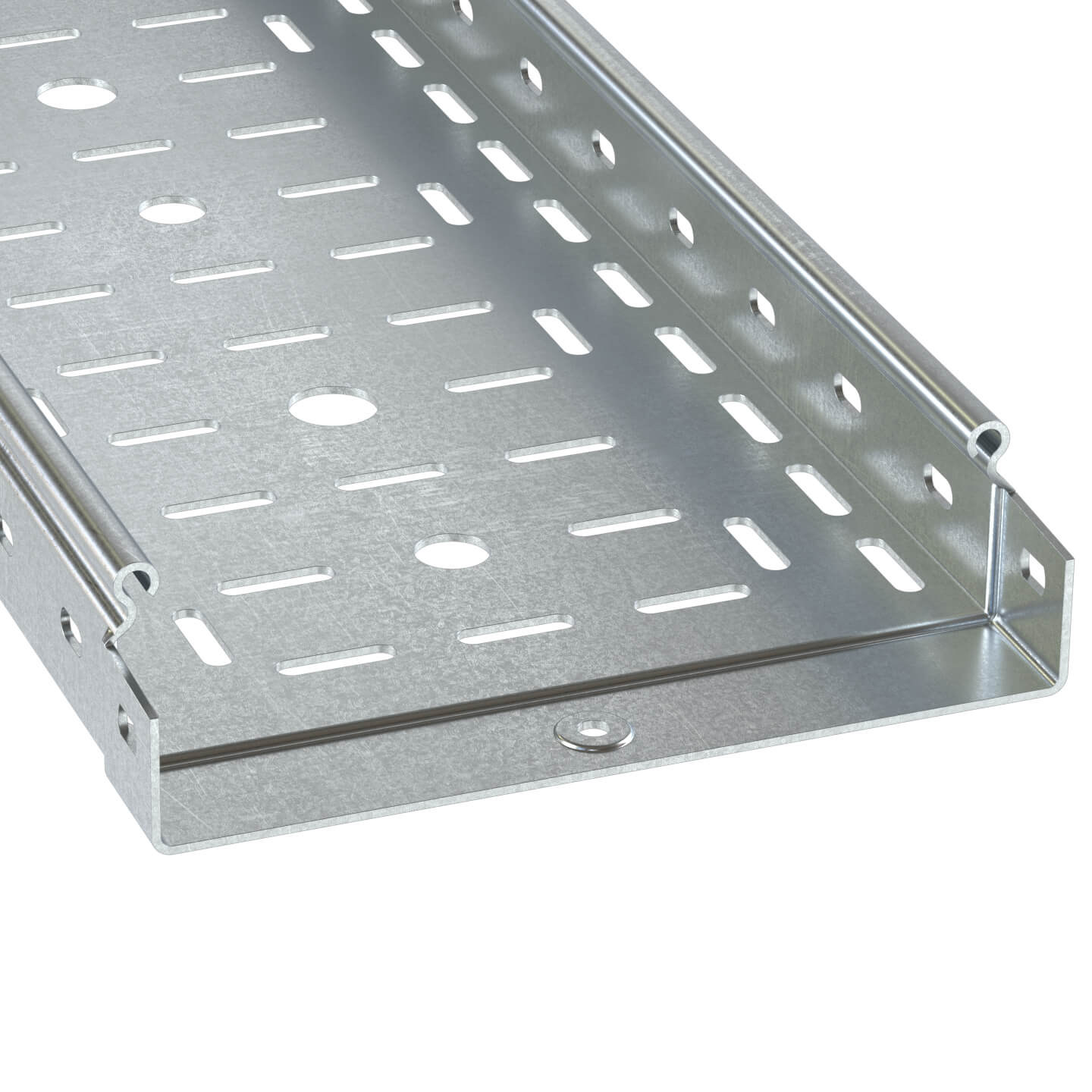

Perforated Straight Element150х50 L3000 thick1,5 mm

Code: 3526315

Perforated Straight Element150х50 L3000 thick1,5 mm

Code: 3526315
Colour Light grey
Width, mm 150
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 7400
Suitable for circuit integrity Yes
Product type Perforated Straight Element
Length 3000 mm
Width 150 mm
Height 50 mm
Material Pre-galvanized steel
Type Metal sheet trays - " S5 Combitech"
Thickness 1.5 mm
Accessories
Analogs

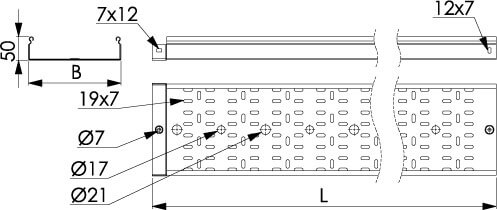

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
