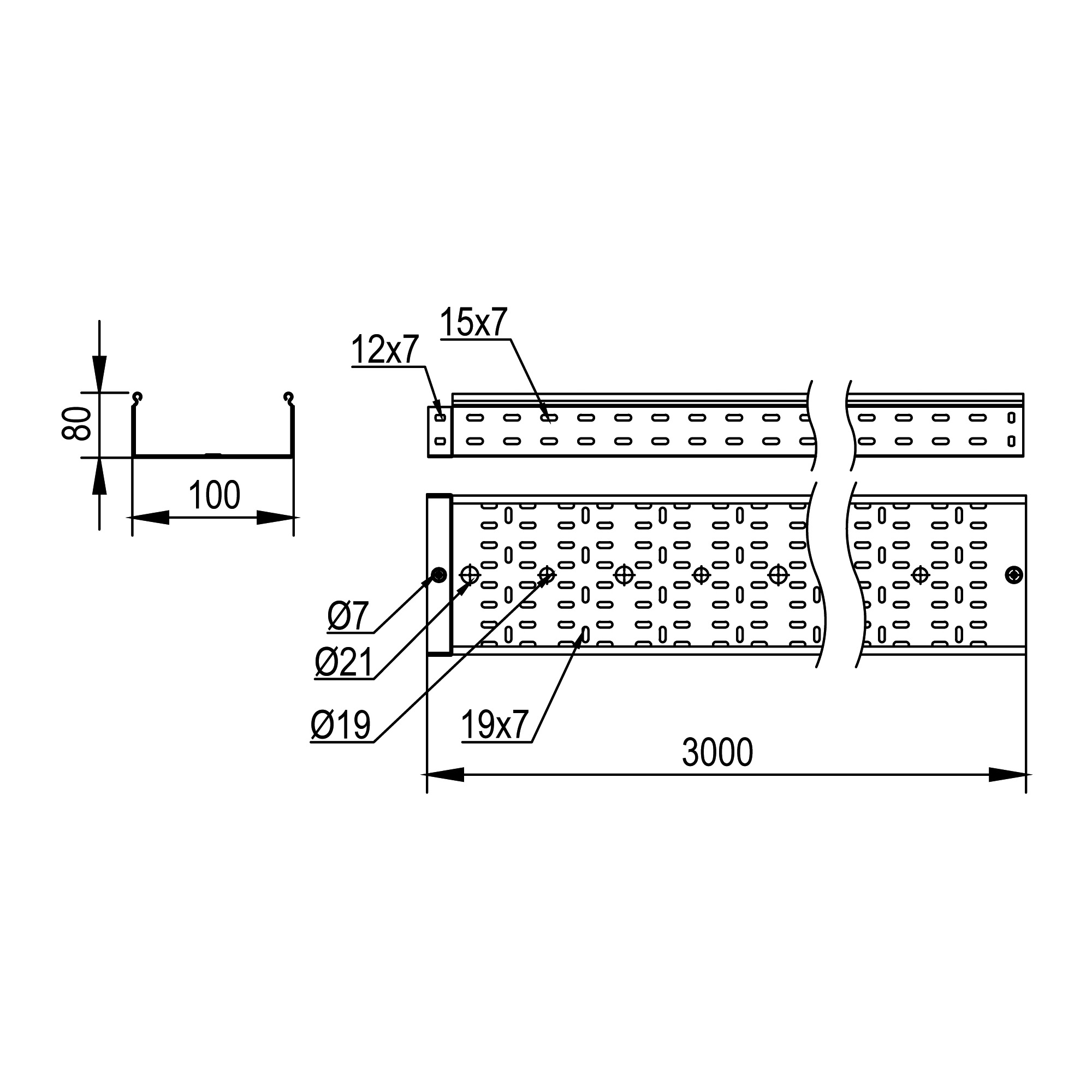

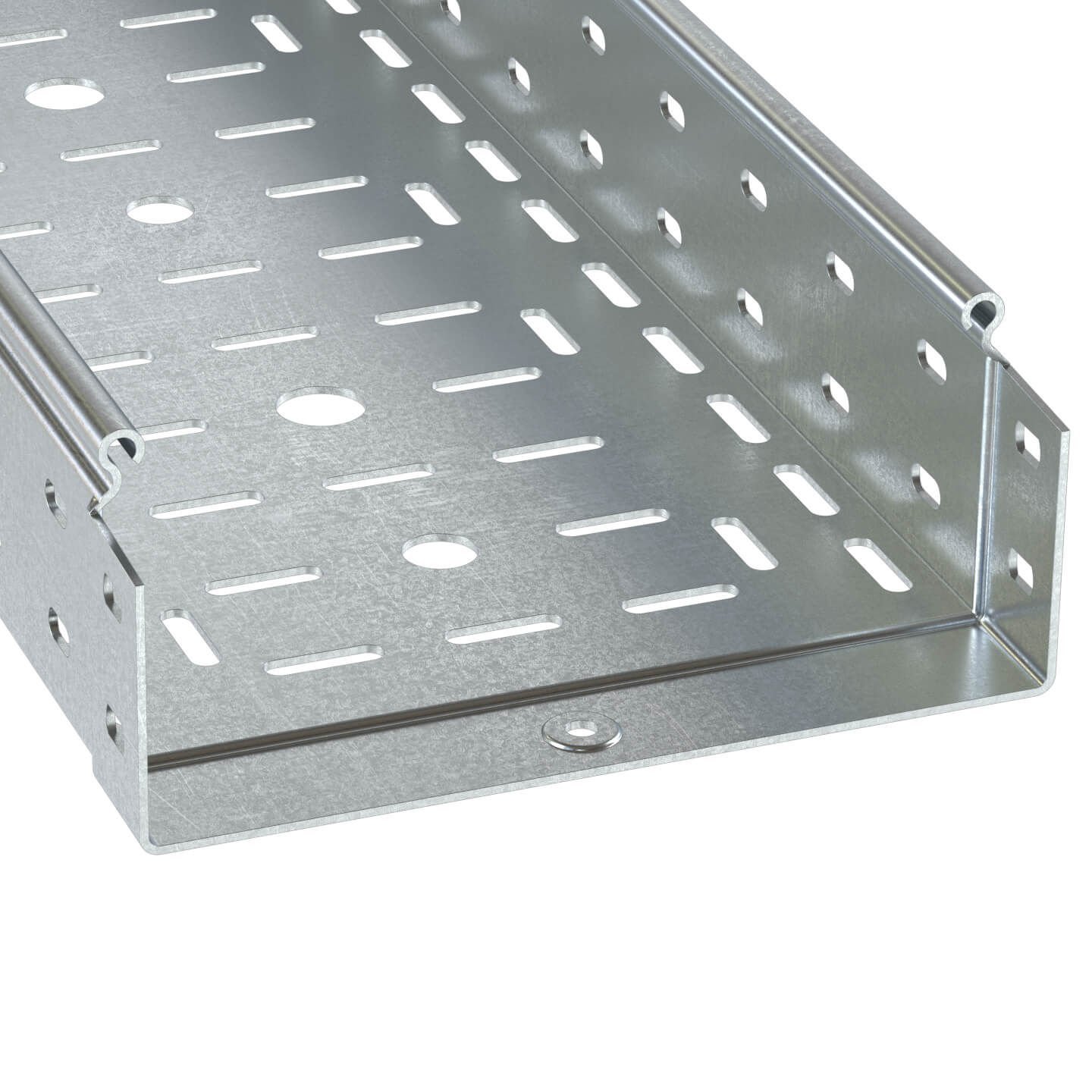

Perforated Straight Element100х80 L3000 thick1,2 mm

Perforated Straight Element100х80 L3000 thick1,2 mm

Code: 3530212

To ask a question

Material	PVC
Height, mm	80
Width, mm	100
Length, mm	3000

Average filled area, sq.mm	7800
Thickness of metal sheet, mm	1.2
Perforation	YES

Colour	Light grey
Width, mm	100
Model	Without connector
Height, mm	80
Surface protection	Sendzimir galvanized
Material thickness, mm	1.2

Side wall perforation	No
Material quality	Other
Length, mm	3000
Material	Steel
Mounting perforation in bottom	Yes
Useful cross section, mm2	7800
