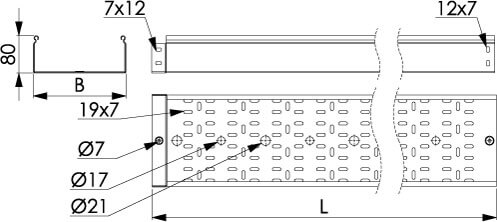

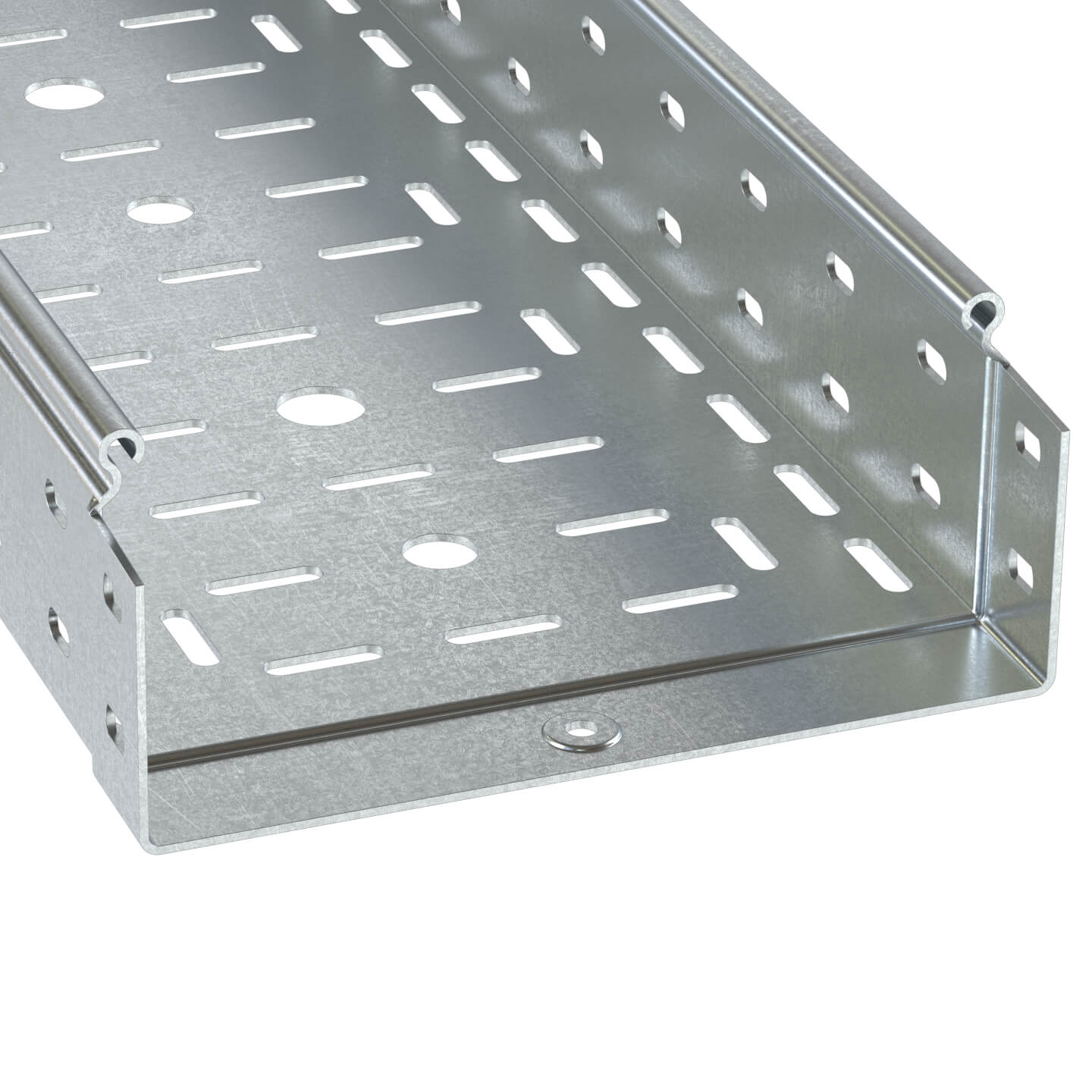

Perforated Straight Element80х80 L3000 thick1,2 mm

Perforated Straight Element80х80 L3000 thick1,2 mm

Code: 3530112

To ask a question

Material	PVC
Height, mm	80
Width, mm	80
Length, mm	3000

Average filled area, sq.mm	6200
Thickness of metal sheet, mm	1.2
Perforation	YES

Colour	Light grey
Width, mm	80
Model	Without connector
Height, mm	80
Surface protection	Sendzimir galvanized
Material thickness, mm	1.2

Side wall perforation	No
Material quality	Other
Length, mm	3000
Material	Steel
Mounting perforation in bottom	Yes
Useful cross section, mm2	6200
